The 3300 XL 8 mm Proximity Transducer System consists of:

One 3300 XL 8 mm probe,

One 3300 XL extension cable1, and

One 3300 XL Proximitor Sensor2.

The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements3.

The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard (4th Edition) for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Frequently Asked Questions

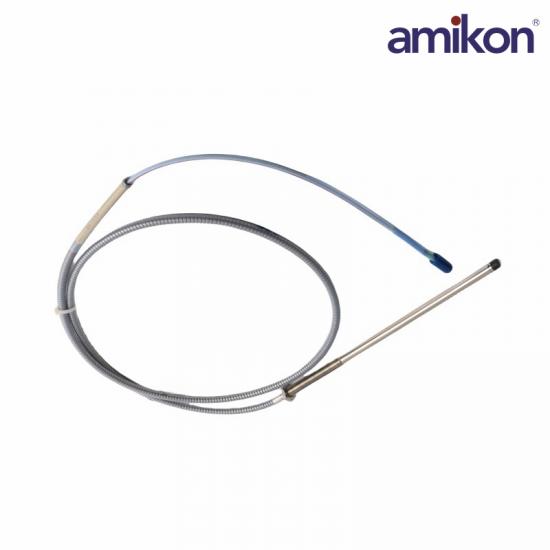

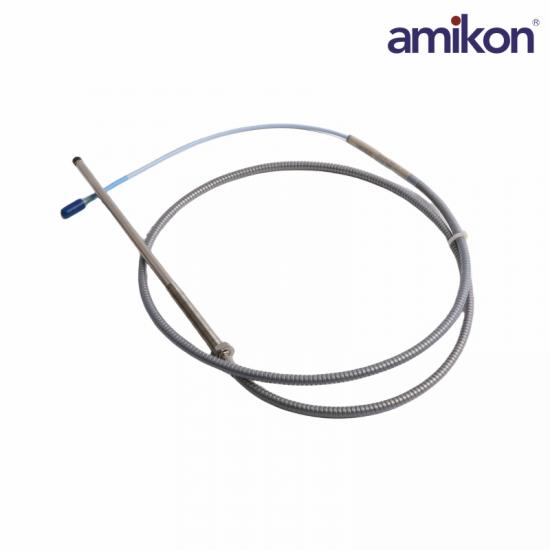

Q1: What is the Bently Nevada 330194-13-20-10-00?

A1: It is an extended temperature range proximity probe designed for non-contact shaft vibration and displacement monitoring in high-temperature industrial environments.

Q2: What is the 330194-13-20-10-00 operating temperature range of this probe?

A2: The 330194-13-20-10-00 probe operates within a temperature range of −51 °C to +218 °C (−60 °F to +425 °F).

Q3: What is the 330194-13-20-10-00 linear measurement range?

A3: The 330194-13-20-10-00 probe provides a linear range of 2 mm (80 mils).

Q4: What is the 330194-13-20-10-00 scale factor of this probe?

A4: The 330194-13-20-10-00 scale factor is 7.87 V/mm (200 mV/mil).

Q5: What cable impedance does the probe use?

A5: The 330194-13-20-10-00 probe uses a 75 Ω cable for signal transmission.

Product Applications

Electric power industry: Monitoring of bearings for large steam turbines, generators and feed pumps.

Petrochemical industry: Monitoring of operating conditions for centrifugal compressors, reciprocating compressors and high-speed gearboxes to prevent catastrophic equipment damage.

Steel and metallurgy: Vibration alarms for fans, blowers and heavy rolling equipment.

Paper and water treatment: Preventive maintenance for large drums, mixers and water pumps.
