Brand |
Bently Nevada |
|
Model |
330500-03-01 |
|
Mounting Thread Adaptor |
1/4 - 28 UNF |
|
Agency Approval |
CSA/US/C |
|
Sensitivity |
3.94 mV/mm/s (100 mV/in/s)，tolerance ±5% |
|
Velocity Measurement Range |
1270 mm/s peak (50 in/s peak) |
|
Transverse Sensitivity |
Less than 5% of nominal sensitivity |
|
Amplitude Linearity |
±2% within 152 mm/s peak (6 in/s peak) |
|
Mounted Resonant Frequency |
＞12 kHz |
|
Dynamic Output Impedance |
＜2400 Ω |
|
Operating Temperature Range |
-55°C ~ 121°C (-67°F ~ 250°F) |

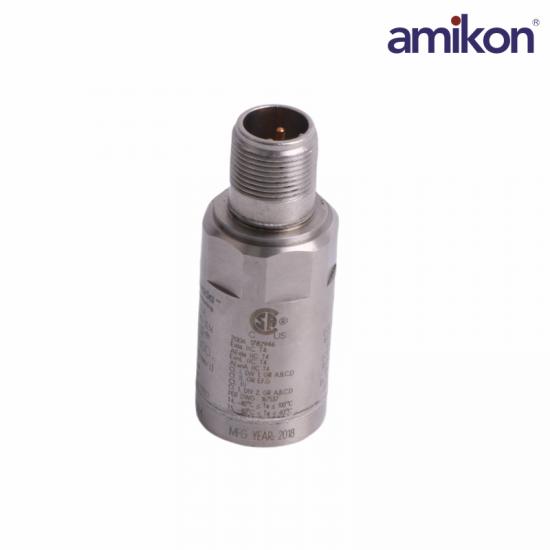

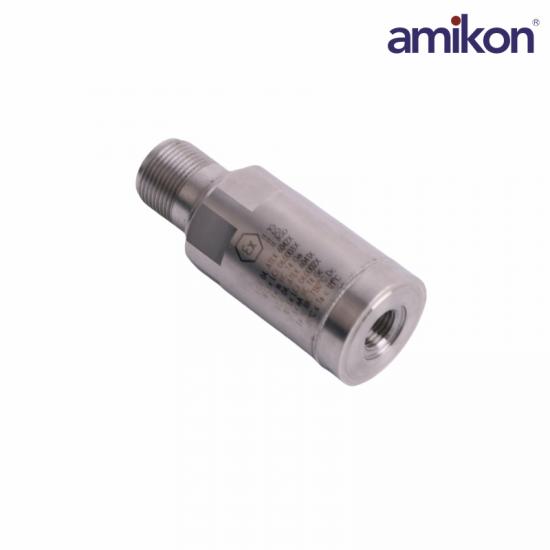

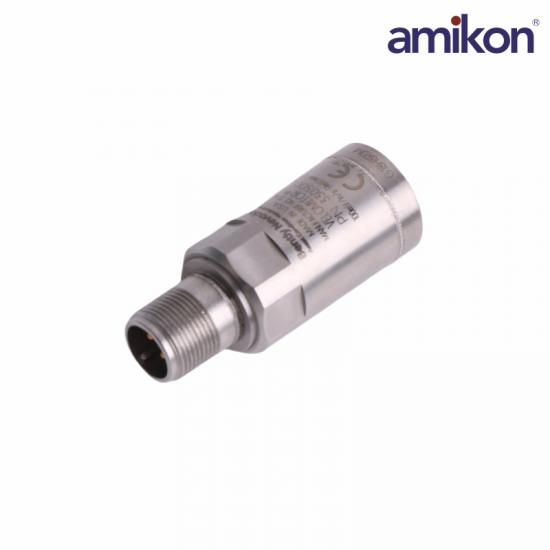

Bently Nevada Velomitor Piezo-velocity Sensors are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration. The 330500 is a specialized piezoelectric accelerometer that incorporates embedded integrated electronics in a solid-state design.
Because the 330500 incorporates solid-state electronics and has no moving parts, it does not suffer from mechanicaldegradation and wear, and can be mounted vertically,horizontally, or at any other angle of orientation.
Frequently Asked Questions
What is its standard scale factor/sensitivity?
The nominal output is 3.94 mV/mm/s (100 mV/in/s) ±5% at 100 Hz.
What is the frequency response range?
It operates from 4.5 Hz to 5,000 Hz (±3 dB) or 10 Hz to 1,000 Hz (±0.9 dB).
What is its maximum vibration measurement range?
It can measure peak velocity up to 127 mm/s (5.0 in/s).
What is the thread size of the -03 mounting option?
It comes with a 1/4-28 UNF threaded stud adapter.
What is the operating temperature range?
It is rated for operation from -40°C to 121°C (-40°F to 250°F).
Product Applications
Power Industry: Vibration monitoring of bearing housings and casings for gas turbines, steam turbines, hydro-generator sets, and wind power generation equipment.
Oil & Gas & Petrochemical: Condition monitoring and surge protection for large centrifugal compressors, reciprocating compressors, large pump sets, and oil/gas pipeline booster station pumps.
Metallurgy & Steel: Absolute vibration measurement of blast furnace blowers, large exhaust fans, rolling mill gearboxes, and converter fans.
Heavy Chemical & Cement: Continuous monitoring of drive bearings for large mixers, separators, crushers, and clinker kilns.
Water Treatment & Environmental Protection: Large feedwater pumps, sewage pumps, and large pumped-storage power station pumps, etc.
Amikon provide 12 months warranty for all the goods from us.
We have DHL,UPS,TNT,you can use your own freight forwarder for transportation.
Shipped in 3 days after payment
Original packing with cartons.
100% make sure the best quality!
