Brand |
Bently Nevada |
|
Model |
330500-08-01 |
|
Mounting Thread Adaptor |
1/2 – 13 UNC |
|
Agency Approval |
CSA/US/C |
|
Sensitivity |
3.94 mV/mm/s (100 mV/in/s)，±5% tolerance |
|
Frequency Response |
4.5 Hz～5 kHz (±3.0 dB) |
|
Operating Temperature Range |
-55°C ~ 121°C (-67°F ~ 250°F) |
|
Case Material |
316L stainless steel |

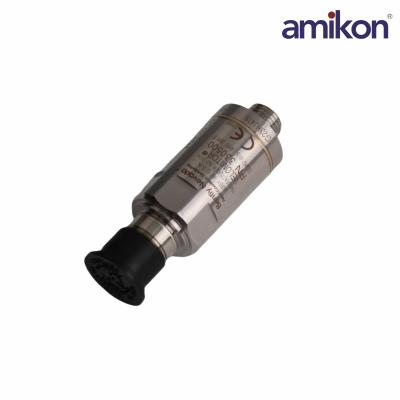

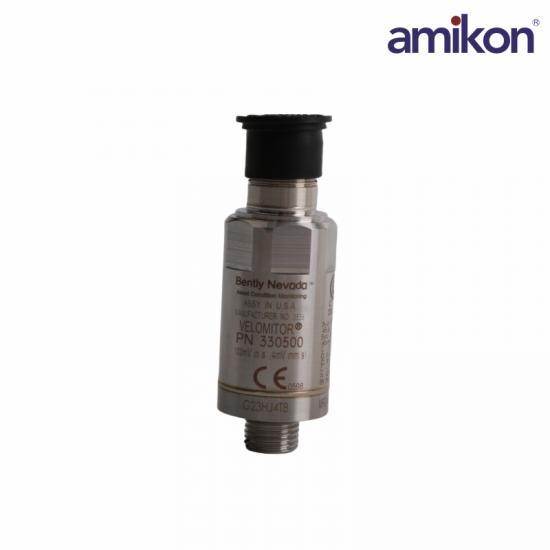

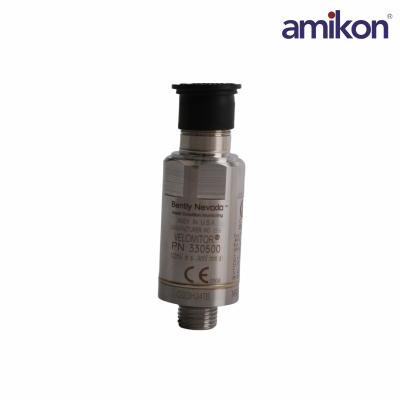

The 330500-08-01 specifies a Bently Nevada Velomitor Piezo-velocity Sensor featuring a specific mounting thread option and hazardous area agency approvals. It measures absolute structural and bearing vibration without moving parts.
Bently NevadatM Velomitor Piezo-velocity Sensors aredesigned to measure absolute (relative to free space)bearing housing, casing, or structural vibration. The 330500 isa specialized piezoelectric accelerometer that incorporatesembedded integrated electronics in a solid-state design.
Because the 330500 incorporates solid-state electronics andhas no moving parts, it does not suffer from mechanicaldegradation and wear, and can be mounted vertically,horizontally, or at any other angle of orientation
Frequently Asked Questions
What is the standard scale factor?
3.94 mV/mm/s (100 mV/in/s) ±5%.
What is the normal OK Bias Voltage?
Nominal -12 Vdc (Window: -7 to -17 Vdc).
What does a -24 Vdc reading mean?
Open circuit or loose connector pin.
Does it measure shaft displacement?
No, it measures casing absolute vibration only.
Product Applications
Power Industry: Monitoring auxiliary peripheral equipment for steam turbines and water turbines, such as circulating water pumps, feedwater pumps, and blowers.
Oil and Gas, Refineries: Oil transfer pumps, compressor units for long-distance natural gas pipeline compressor stations, and catalytic cracking blowers in refineries.
Chemical and Petrochemical Industry: Pumps for various chemical media transfers, drive ends for reactor agitators, and blowers for large gas separation units.
Metallurgy and Steel Plants: Blast furnace blowers, blast furnace dust removal fans, and gearboxes and motors for rolling mill transmissions.
Water Treatment and General Manufacturing: Large urban water supply pumps, aeration blowers for wastewater treatment plants, and bearing housings for paper mill drying cylinders.
