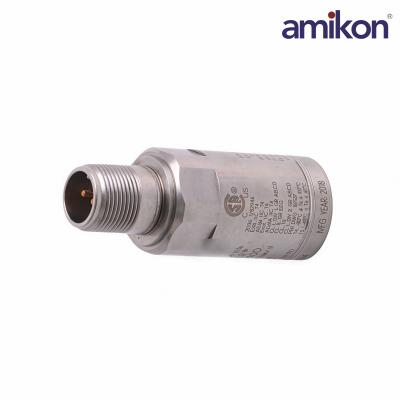

Product Number:330500-05-01

Range: 50 in/s peak

Accuracy: ±5% @ 68-86°F

Response: 4.5Hz-5kHz (±3dB)

Sensitivity: 3.94 mV/mm/s (100 mV/in/s) ±5%

Frequency Response: 4.5 Hz to 5 kHz (270 cpm to 300 kcpm)

Temperature Sensitivity: -14% to +7.5%

Velocity Range: 1270 mm/s (50 in/s) peak

Transverse Sensitivity: Less than 5% of sensitivity

Amplitude Linearity: ±2% to 152 mm/s (6 in/s) peak

Mounted Resonant Frequency: Greater than 12 kHz

Output Bias Voltage: -12 ±3.0 V DC

Dynamic Output Impedance: Less than 2400 Ω

Operating Temperature: -55°C to 121°C (-67°F to 250°F)

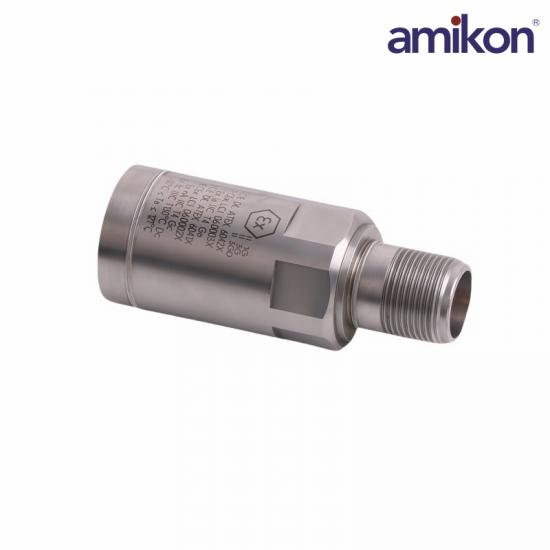

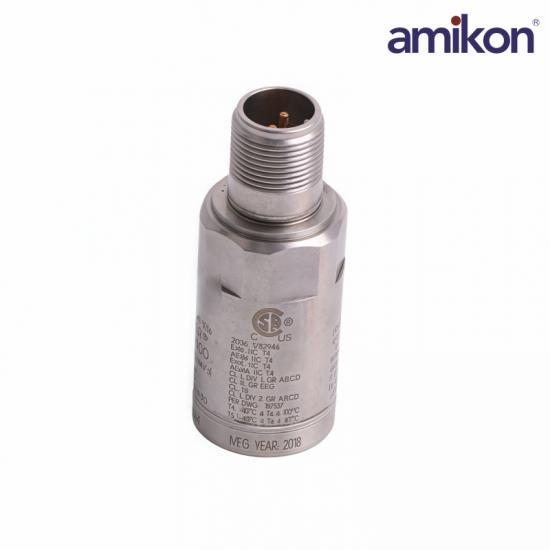

Bently Nevada Velomitor Piezo-velocity Sensors are designedto measure absolute (relative to free space) bearing housing.casing,or structural vibration. The 330500 is a specializedpiezoelectric accelerometer that incorporates embeddedintegrated electronics in a solid-state design.

Because the 330500 incorporates solid-state electronics andhas no moving parts, it does not suffer from mechanicaldegradation and wear, and can be mounted vertically,horizontally, or at any other angle of orientation
