Product Number:330881-28-20-040-03-02

Output Resistance: 50 Ω

Recommended Gap Setting: 1.27 mm (50 mils)

Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ±5%

Standard System: 1 metre

Position Accuracy: Less than ±0.025 mm (±1 mil)

Frequency Response: 0 to 10 kHz

Minimum Target Size: 15.2 mm (0.6 in)

Minimum Target Width: 50.8 mm (2.0 in)

Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG)

Linear Range: 2 mm (80 mils)

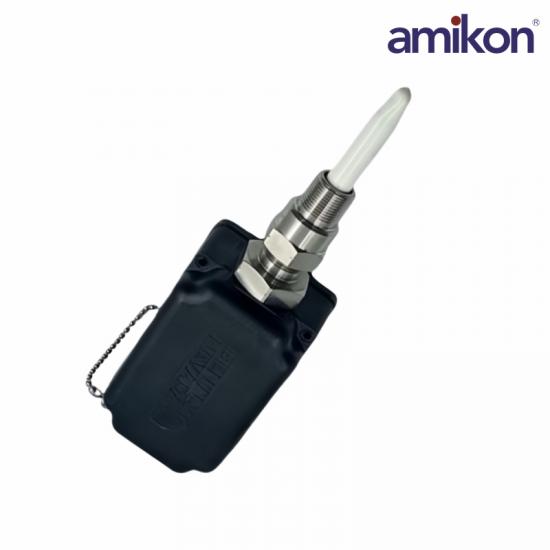

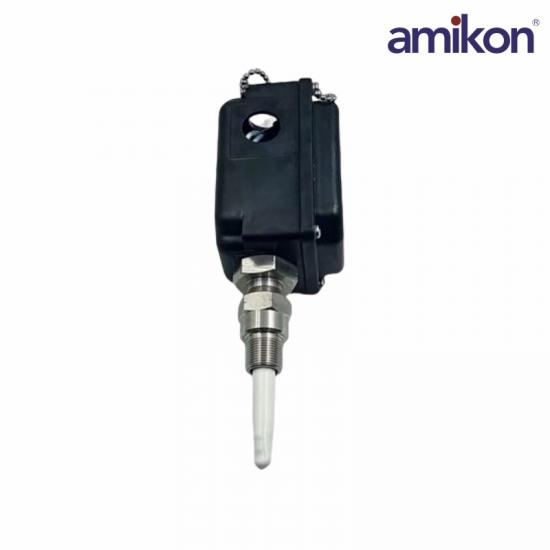

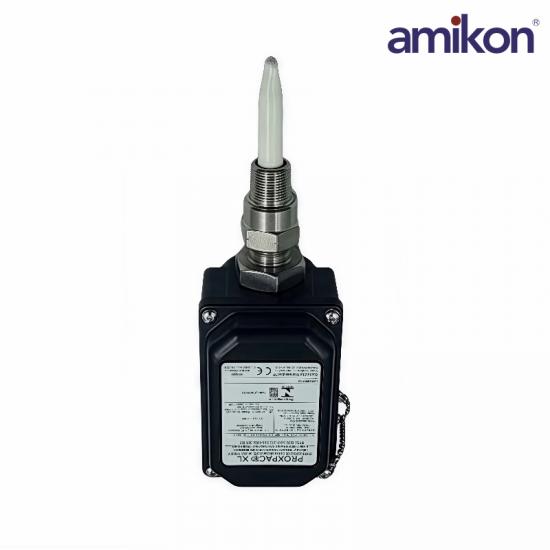

The design of the PROXPAC XL Proximity Transducer Assemblyis similar to our 31000/32000 Proximity Probe HousingAssemblies. The assembly offers the same advantages andfeatures as the 31000 and 32000 housings for accessing andexternally adjusting proximity probes. However, the housingcover of the PROXPAC XL Assembly also contains its own 3300XL Proximitor sensor. This design makes the PROXPAC XLAssembly a completely self-contained proximity probesystem, and eliminates the need for an extension cablebetween the probe and its associated Proximitor sensor. italso eliminates the need for a separate Proximitor housing, asthe field wiring connects directly between the monitors andPROXPAC XL Assemblies.
