3300 XL Probes and Extension Cables can also be ordered with a FluidLoc cable option. This option prevents oil and other liquids from leaking out of the machine through the cable’s interior. The connector protector option provides additional protection of the connectors in a humid or moist environment. Connector protectors are recommended for all installations and provide increased environmental protection. Additionally, the 3300 XL 11 mm probe comes standard with a locknut with pre-drilled safety wire holes.

Notes:

Proximitor Sensors are supplied by default from the factory calibrated to AISI 4140 steel. Calibration to other target materials is available upon request.

Silicone tape is also provided with each 3300 XL extension cable and can be used instead of connector protectors. Silicone tape is not recommended in applications where the probe-to-extension cable connection will be exposed to turbine oil.

Frequently Asked Questions

1. What is the 330703-000-026-10-01-CN?

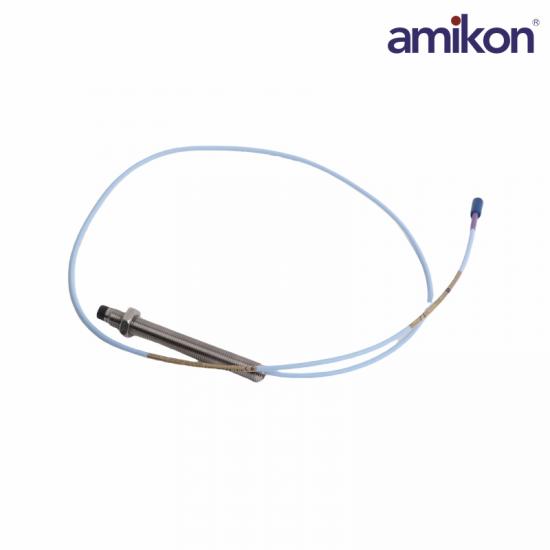

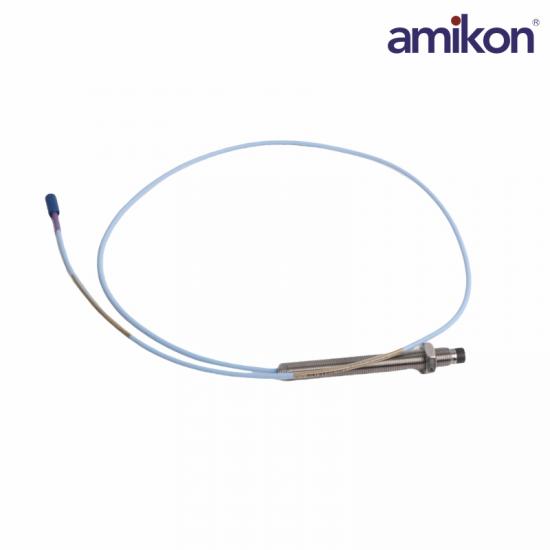

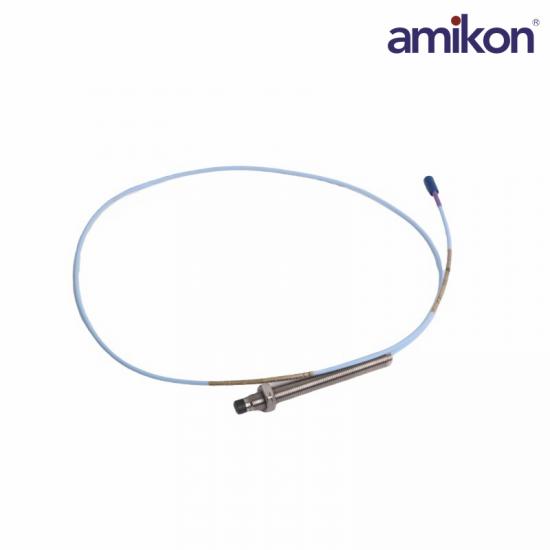

The Bently Nevada 330703-000-026-10-01-CN is a 3300 XL 11 mm proximity probe used for non-contact measurement of shaft vibration and position in rotating machinery.

2. What is the 330703-000-026-10-01-CN probe case length?

The “-026” option indicates a 26 mm case length, making it ideal for compact or space-limited installations.

3. What is the 330703-000-026-10-01-CN cable length?

The “-10” option corresponds to a 1.0 meter (3.3 ft) cable.

4. What connector type does it use?

It uses a miniature coaxial ClickLoc connector, ensuring secure and reliable signal transmission.

5. Does it support hazardous area approvals?

Yes. The “-CN” option indicates multi-agency hazardous area certifications, making it suitable for explosive or hazardous industrial environments.

Product Applications

Petroleum and Natural Gas Plants (Petrochemical & Oil/Gas): Used for petroleum refining and monitoring of natural gas compressors.

Chemical Plants: Applied to reaction vessels, mixers, and various process control pumps.

Power Plants: Used for monitoring of auxiliary equipment in power plants (such as induced draft fans, forced draft fans, and feed water pumps).

Steel and Metallurgy: Used for core equipment such as blast furnace blowers.

Other Manufacturing Industries: High-speed gearboxes and high-speed rotating machinery.
