The 3300 XL 8 mm Proximity Transducer System consists of:

One 3300 XL 8 mm probe

One 3300 XL extension cable

One 3300 XL Proximitor Sensor

The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Frequently Asked Questions

1. What is the 330703-000-050-10-01-00?

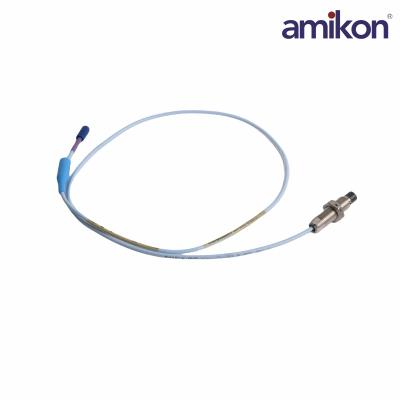

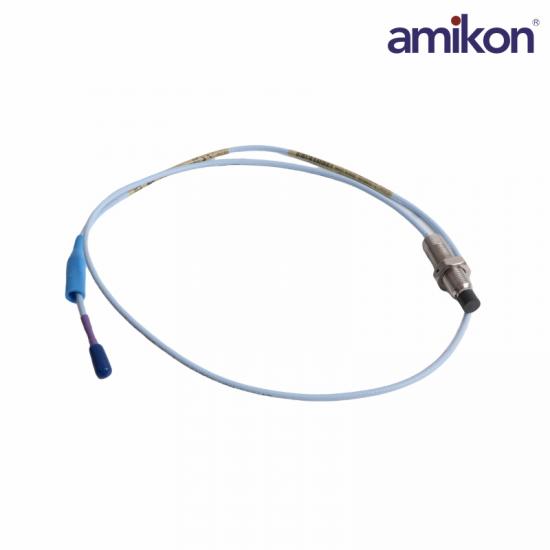

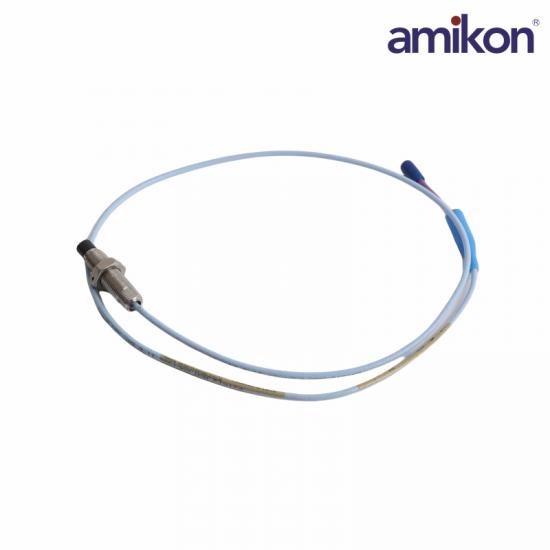

The Bently Nevada 330703-000-050-10-01-00 is a 3300 XL 11 mm proximity probe, which serves as a key component of a complete proximity transducer system used for non-contact vibration and position measurement.

2. What is the 330703-000-050-10-01-00 probe case length?

The “-050” option indicates a 50 mm overall case length, suitable for standard industrial mounting depths.

3. What is the 330703-000-050-10-01-00 cable length?

The “-10” option corresponds to a 1.0 meter (3.3 ft) probe cable.

4. What connector type does it use?

The “-01” option specifies a miniature coaxial ClickLoc connector with connector protector, ensuring secure and reliable signal transmission.

5. Does it include hazardous area approvals?

The “-00” suffix means no hazardous area certification is included. Certification options must be selected separately if required.

Product Applications

Steel industry: Rolling mills, blowers, etc.

Electric power industry: Steam turbines, generators, large water pumps, fans.

Petrochemical and chemical industry: Centrifugal air compressors, hydraulic pumps, reactor drive machinery.

Metallurgical industry: Blast furnace fans, flue gas turbines.
