The 3300 XL 8 mm Proximity Transducer System consists of:

One 3300 XL 8 mm probe

One 3300 XL extension cable

One 3300 XL Proximitor Sensor

The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface, and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

Frequently Asked Questions

1. What is the 330701-00-20-90-02-CN?

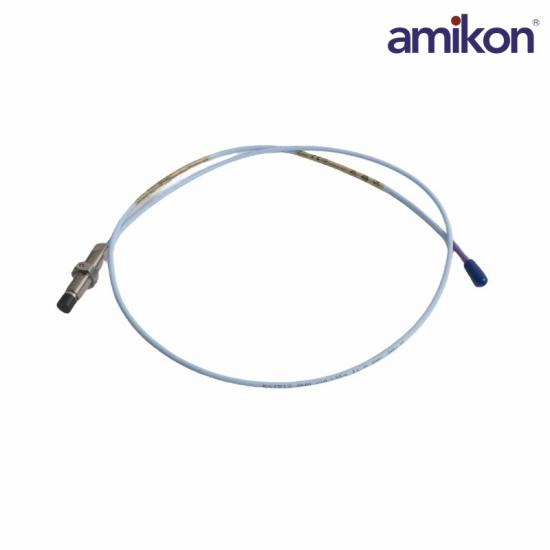

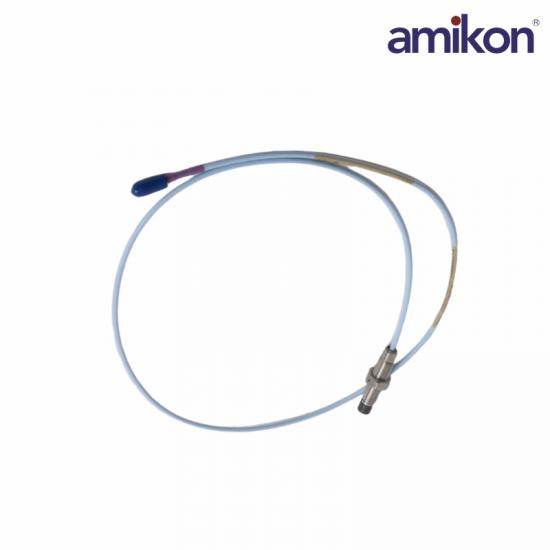

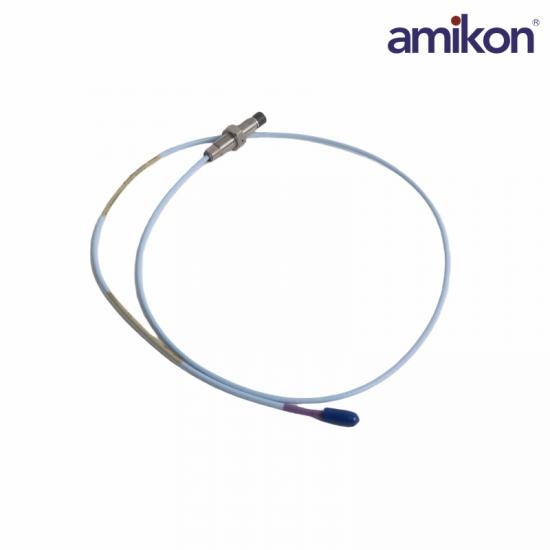

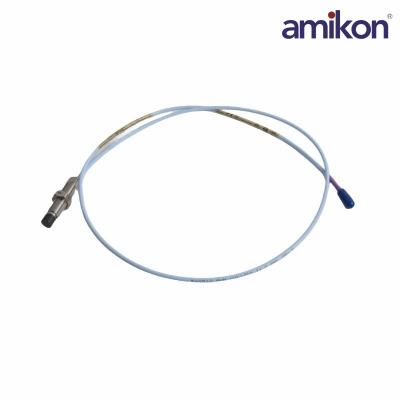

The Bently Nevada 330701-00-20-90-02-CN is a 3300 XL 11 mm proximity probe used for non-contact measurement of shaft vibration and position in industrial rotating machinery.

2. What is the 330701-00-20-90-02-CN cable length?

The “-90” option indicates a 9.0 meter (29.5 ft) system cable length, used for long-distance connection between probe and monitoring system.

3. What is the 330701-00-20-90-02-CN probe case length?

The “-20” option corresponds to a 2.0 inch case length, suitable for standard industrial mounting depth.

4. What connector type does it use?

It uses a miniature coaxial ClickLoc connector, designed for secure, vibration-resistant signal connection in harsh environments.

Product Applications

Oil & Gas: Used for monitoring turbo compressors and industrial gas turbines.

Petrochemical: Used for pumps, centrifugal compressors and fans.

Power Engineering: Used for heavy rotating machinery such as steam turbines and generators.

Municipal Engineering: Large water pumps and water treatment equipment.
