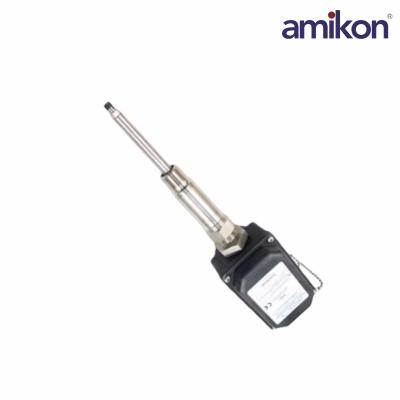

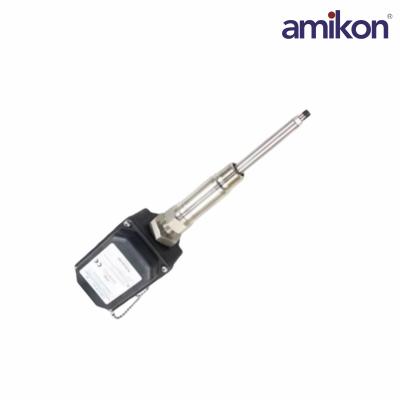

The design of the PROXPAC XL Proximity Transducer Assembly is similar to our 31000/32000 Proximity Probe Housing Assemblies. The assembly offers the same advantages and features as the 31000 and 32000 housings for accessing and externally adjusting proximity probes. However, the housing cover of the PROXPAC XL Assembly also contains its own 3300 XL Proximitor sensor. This design makes the PROXPAC XL Assembly a completely self-contained proximity probe system, eliminating the need for an extension cable between the probe and its associated Proximitor sensor. It also removes the need for a separate Proximitor housing, as the field wiring connects directly between the monitors and PROXPAC XL Assemblies.

The PROXPAC XL housing is made of Polyphenylene Sulfide (PPS), an advanced, molded thermoplastic. This material replaces the steel and aluminum used in previous housings offered in the Bently Nevada product line. It also incorporates glass and conductive fibers in the PPS to strengthen the housing and more effectively dissipate electrostatic charges. The PROXPAC XL housing is rated for Type 4X and IP66 environments, providing extra protection in severe environments.

Frequently Asked Questions

1. What is the 330880-16-15-065-01-02?

The Bently Nevada 330880-16-15-065-01-02 is a PROXPAC XL Proximity Transducer, an integrated assembly that combines a proximity probe and Proximitor sensor into a single housing for machinery condition monitoring.

3. What probe is included in this model?

The “-16” option indicates it includes a 3300 XL 8 mm proximity probe .

4. What is the 330880-16-15-065-01-02 standoff adapter length?

The “-15” option specifies a 1.5 inch (38 mm) standoff adapter, used to properly position the probe relative to the target surface.

5. What is the 330880-16-15-065-01-02 probe penetration depth?

The “-065” option corresponds to a 65 mm penetration depth, allowing installation in deeper mounting locations.

7. What is the 330880-16-15-065-01-02 mounting thread type?

The “-02” option specifies a 3/4-14 NPT mounting thread, ensuring secure installation on machinery casings.

Product Applications

Thermal and hydroelectric power plants: Monitor the radial vibration and axial displacement of the main shaft of the generator set to prevent major accidents caused by friction or imbalance.

Petrochemical and oil refining plants: Used for online condition monitoring of large centrifugal compressors, reciprocating compressors, and various large pump equipment.

Steel and mining industries: Monitor the operational stability of large fans, blowers, and conveying systems.

Water treatment plants: Monitor the mechanical seals and bearing health status of large water pumps and mixing equipment.
