The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). It is primarily used in the following applications on fluid-filmed bearing machines where a small shaft or reduced side-view is present:

Radial vibration and radial position measurements

Axial (thrust) position measurements

Tachometer and zero speed measurements

Phase reference (Keyphasor signals)

Frequently Asked Questions

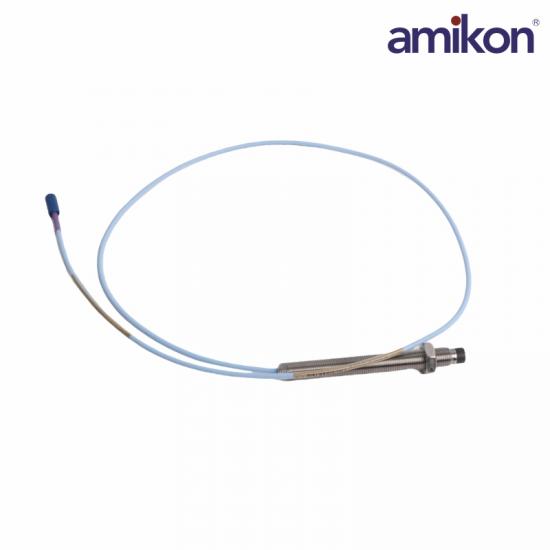

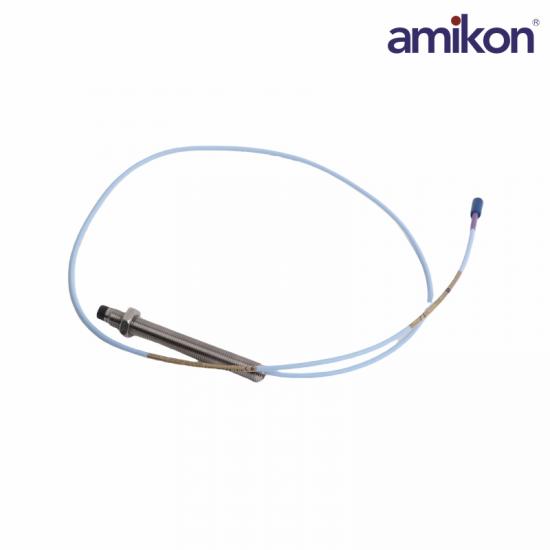

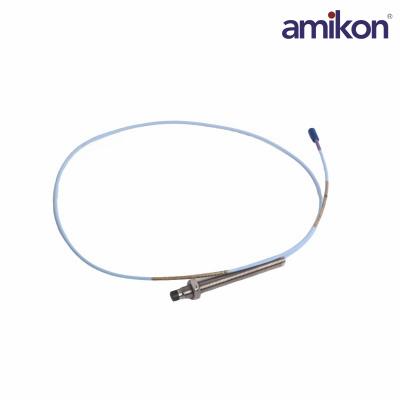

Q1: What is the Bently Nevada 330703-000-026-50-02-CN?

A1: It is a proximity probe designed for non-contact measurement of vibration and shaft displacement in rotating machinery, ensuring reliable condition monitoring.

Q2: What does the “-000” option indicate?

A2: “-000” specifies an unthreaded length of 0.0 inches, meaning there is no unthreaded section.

Q3: What does the “-026” option represent?

A3: “-026” indicates an overall case length of 2.6 inches.

Q4: What does the “-50” option represent?

A4: “-50” refers to a total cable length of 5.0 meters, suitable for extended installation distances.

Q5: What does the “-02” connector option indicate?

A5: “-02” denotes a miniature coaxial connector, typically used for secure and reliable signal transmission.

Product Applications

Power industry: Steam turbine units, generators, and feedwater pumps for thermal power plants and nuclear power plants.

Petroleum and natural gas: centrifugal compressors, screw compressors, and key oil pumps in refineries and petrochemical plants.

Petrochemical and chemical industry: compressor units and mixers for ethylene plants and synthetic ammonia plants.

Metallurgy and Mining: Blowers and large induced draft fans for steel plants.

Air separation unit: an air separation compressor used in industrial gas production plants.
