The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). It is primarily used in the following applications on fluid-filmed bearing machines where a small shaft or reduced side-view is present:

Radial vibration and radial position measurements

Axial (thrust) position measurements

Tachometer and zero speed measurements

Phase reference (Keyphasor signals)

The 3300 XL 11 mm Proximitor Sensor is designed to replace the 7200-series 11 mm and 14 mm Transducer Systems. When upgrading from the 7200-series system to the 3300 XL 11 mm system, every component must be replaced with 3300 XL 11 mm components. In addition, the monitoring system must be updated. If using a 3500 Monitoring System, an updated version of the configuration software that lists the 3300 XL 11 mm Transducer System as a compatible option is required. Existing 3300 Monitoring Systems may need a modification.

Frequently Asked Questions

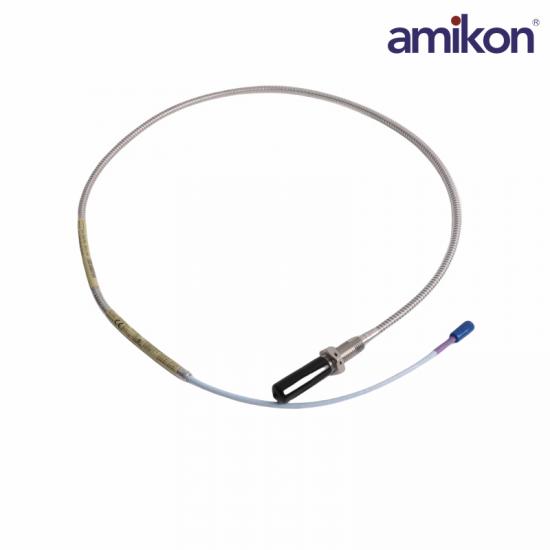

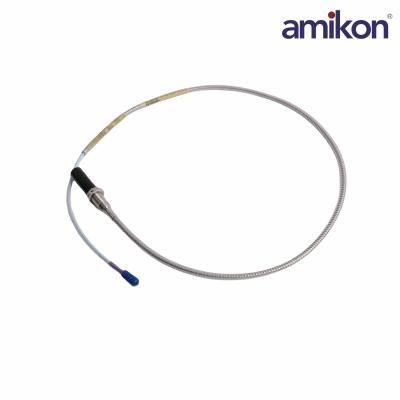

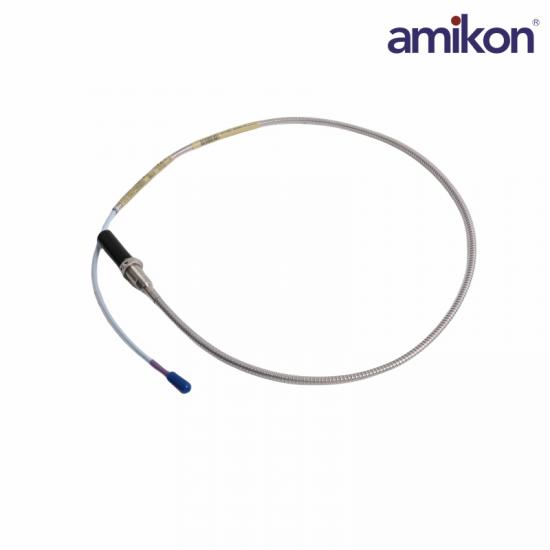

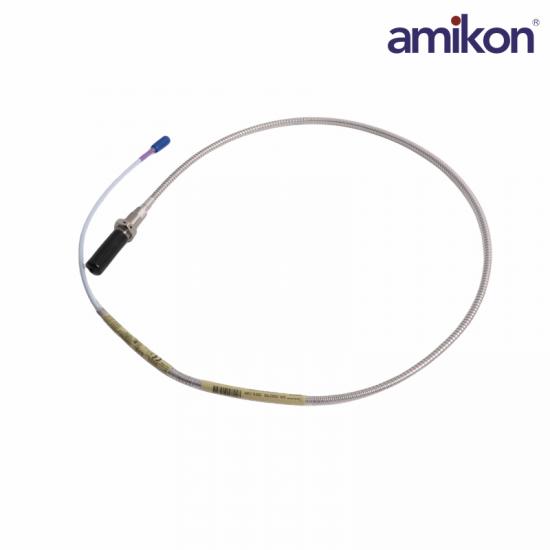

Q1: What is the Bently Nevada 330704-000-050-10-01-00?

A1: It is a proximity probe designed for non-contact measurement of vibration and shaft displacement in rotating machinery.

Q2: What does the “026” option indicate?

A2: “026” specifies an overall case length of 26 mm.

Q3: What does the “50” option represent?

A3: “50” indicates a total cable length of 5.0 meters (approximately 16.4 feet).

Q4: What does the “02” connector option indicate?

A4: “02” denotes a miniature coaxial ClickLoc connector with a standard cable configuration.

Q5: What is the primary function of this proximity probe?

A5: It provides precise non-contact measurement of shaft vibration and displacement for condition monitoring systems.

Product Applications

Power industry: Monitor the bearing vibration and displacement of steam turbines, water turbines, generators, and feed pumps to prevent major equipment accidents.

Oil and natural gas: applied to real-time monitoring of key rotating equipment such as long-distance pipeline compressors, drilling platform power systems, and centrifuges.

Petrochemical industry: Measurement of axial displacement and radial vibration of reactor agitators, large fans, and turbine compressors in petrochemical plants.

Metallurgy and Mining: Monitoring the mechanical health status of blast furnace fans, large rolling mill gearboxes, and critical transmission systems.

Municipal engineering: used for monitoring power driven equipment in large water pump stations and sewage treatment systems.
