The 3300 XL 11 mm Proximity Transducer System consists of:

3300 XL 11 mm probe

3300 XL 11 mm extension cable

3300 XL 11 mm Proximitor Sensor

The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). It is primarily used in the following applications on fluid-filmed bearing machines where a small shaft or reduced side-view is present:

Radial vibration and radial position measurements

Axial (thrust) position measurements

Tachometer and zero speed measurements

Phase reference (Keyphasor signals)

Frequently Asked Questions

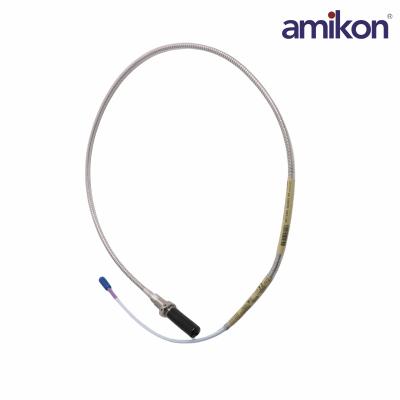

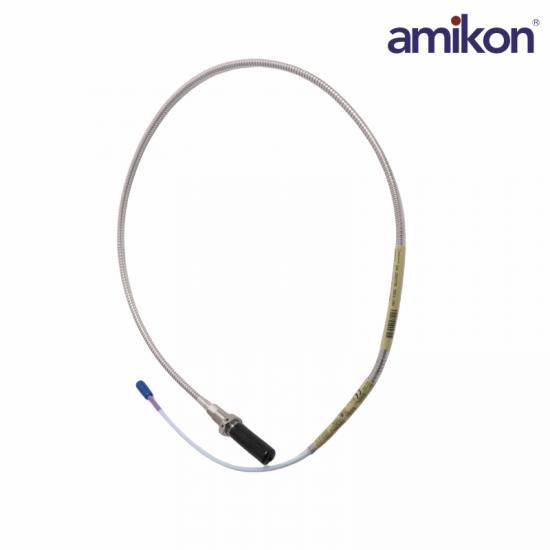

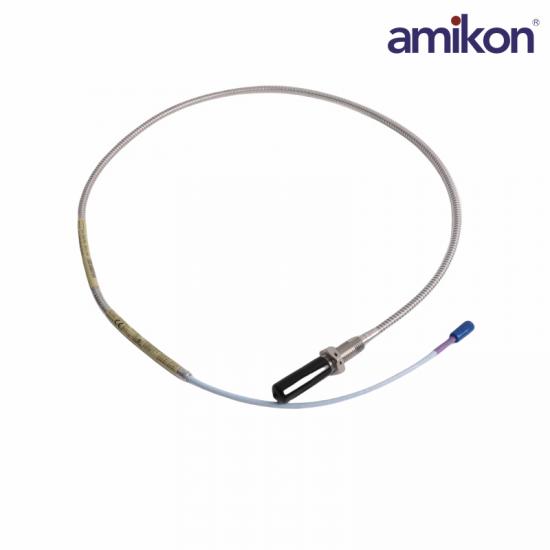

Q1: What is the Bently Nevada 330704-000-050-10-01-CN?

A1: It is a proximity probe designed for non-contact measurement of vibration and shaft displacement in rotating machinery.

Q2: What does the “050” option indicate?

A2: “050” specifies an overall case length of 50 mm.

Q3: What does the “10” option represent?

A3: “10” indicates a total cable length of 1.0 meter (approximately 3.3 feet).

Q4: What does the “01” connector option indicate?

A4: “01” denotes a miniature coaxial ClickLoc connector with a connector protector and standard cable.

Q5: What is the primary function of this proximity probe?

A5: It detects shaft displacement and vibration without physical contact, enabling accurate condition monitoring.

Product Applications

Oil and natural gas: used to monitor the mechanical status of key equipment such as turbo compressors, pumps, and electric motors.

Petrochemical industry: Monitor the radial vibration and axial displacement of large rotating shafts to prevent serious malfunctions.

Power industry: shaft vibration and displacement protection systems as standard in steam turbines, water turbines, and gas turbines.

General mechanical manufacturing: including working condition analysis of machine tools, blowers, and cooling water pumps.

Municipal Engineering: Status Monitoring of Large Water Conservancy Facilities and Pumping Stations
