The 3300 XL 11 mm probe comes in varying probe case configurations, including armored and unarmored ½-20, 5⁄8 -18, M14 X 1.5, and M16 X 1.5 probe threads. The reverse mount 3300 XL 11 mm probe comes standard with either 3⁄8-24 or M10 X 1 threads.

All components of the transducer system have gold-plated brass ClickLoc connectors. ClickLoc connectors lock into place, preventing the connection from becoming loose. The patented TipLoc molding method provides a robust bond between the probe tip and the probe body. The probe cable is securely attached to the probe tip utilizing our patented CableLoc design, which provides 330 N (75 lb) pull strength.

Frequently Asked Questions

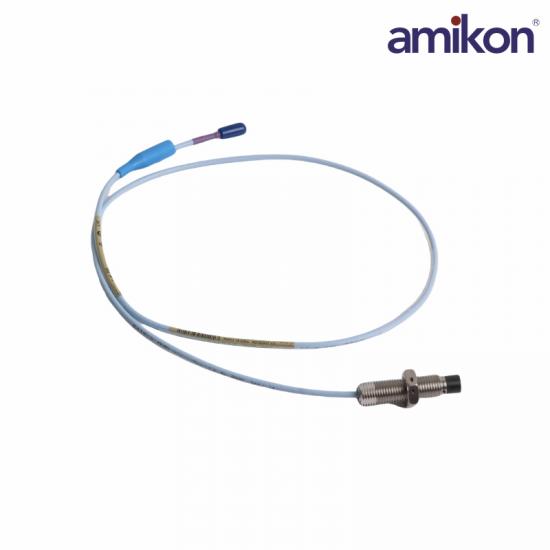

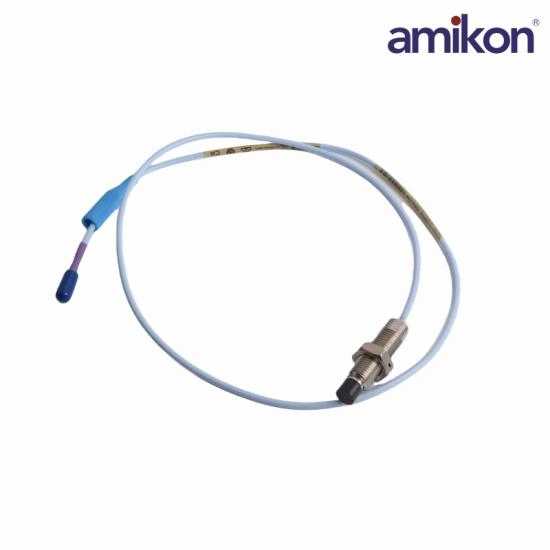

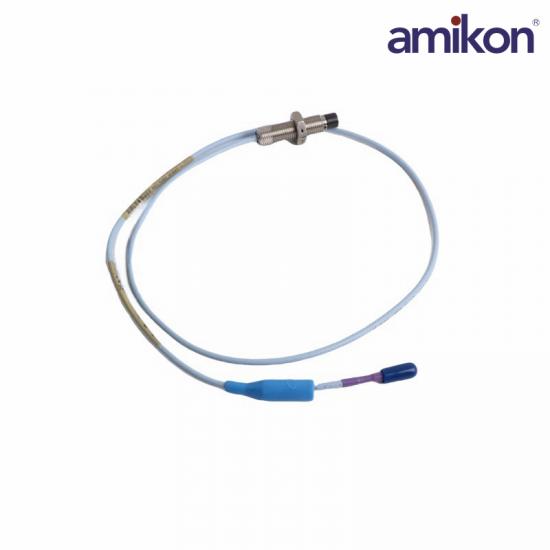

Q1: What is the Bently Nevada 330703-000-100-10-02-CN?

A1: It is a proximity probe designed for non-contact measurement of vibration and shaft displacement in rotating machinery.

Q2: What is the 330703-000-100-10-02-CN case length of this probe?

A2: The probe has a case length of 100 mm.

Q3: What is the 330703-000-100-10-02-CN thread size?

A3: It features an M14 × 1.5 thread, suitable for standard industrial mounting applications.

Q4: What is the 330703-000-100-10-02-CN total cable length?

A4: The total cable length is 1.0 meter (option “10”).

Q5: What is the 330703-000-100-10-02-CN operating temperature range?

A5: It operates within a wide temperature range of −52°C to +177°C, making it suitable for harsh environments.

Product Applications

Petroleum and natural gas industry: Monitoring the shaft vibration of large centrifugal compressors, compressor units, and gas turbines.

Petrochemical and chemical industry: Conducting highly reliable monitoring of the settlement and displacement of piston rods in reciprocating compressors.

Power system (power plants): Applied to the temperature difference and thrust bearing wear monitoring of steam turbines and steam turbine generator units.

Municipal engineering and large industrial fans: The high-density DIN rail installation structure allows for application in high-density mechanical monitoring systems.
