The 3300 XL 11 mm Proximity Transducer System consists of:

3300 XL 11 mm probe

3300 XL 11 mm extension cable

3300 XL 11 mm Proximitor Sensor

The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System. It is primarily used in the following applications where the longer linear range is necessary:

Axial (thrust) position measurements

Ramp differential expansion measurements on steam turbines

Rod position or rod drop measurements on reciprocating compressors

Tachometer and zero speed measurements

Phase reference (Keyphasor) signals

Frequently Asked Questions

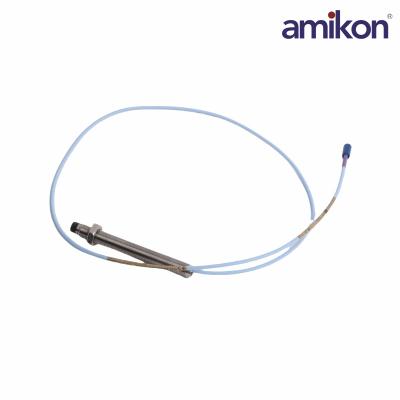

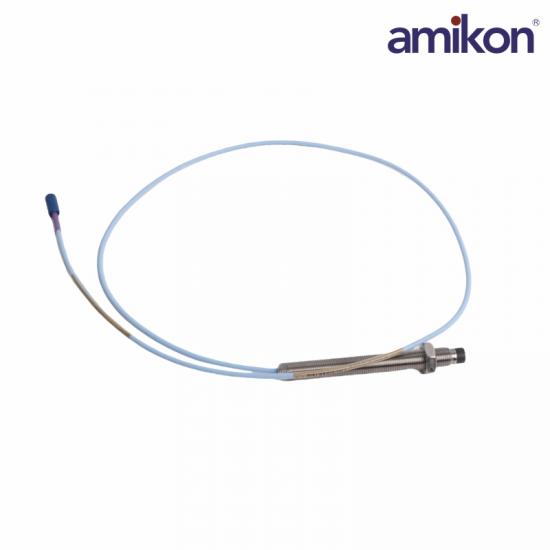

1. What is the 330703-000-100-50-12-00?

The Bently Nevada 330703-000-100-50-12-00 is part of the 3300 XL 11 mm Proximity Transducer System, used for non-contact measurement of shaft vibration and position in rotating machinery.

2. What is the probe case length?

The “-100” option indicates a 100 mm overall case length, suitable for deeper or recessed mounting installations.

3. What is the 330703-000-100-50-12-00 system length?

The “-50” option represents a 5.0 meter total system length, including probe and extension cable.

4. Does it include hazardous area approvals?

The “-00” option means no hazardous area approvals are included. Certification must be selected separately if required.

5. What is the 330703-000-100-50-12-00 probe size?

This 330703-000-100-50-12-00 model uses an 11 mm probe tip, offering a longer linear measurement range compared to standard 8 mm probes.

Product Applications

Steel industry: Hot rolling and cold rolling units.

Electric power industry: Steam turbines, generators, large water pumps, fans.

Metallurgy, chemical industry, petrochemical industry: Centrifugal air compressors, large-scale compression units.

Mining and nuclear power: Key rotating equipment
