The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable with other non-XL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.

Frequently Asked Questions

1. What is the 330704-000-078-10-01-CN?

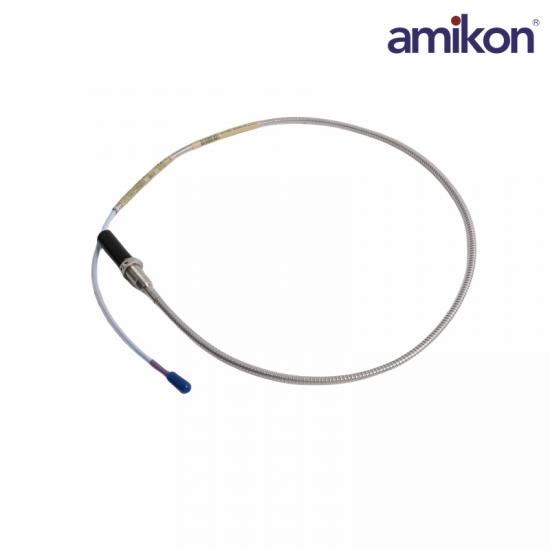

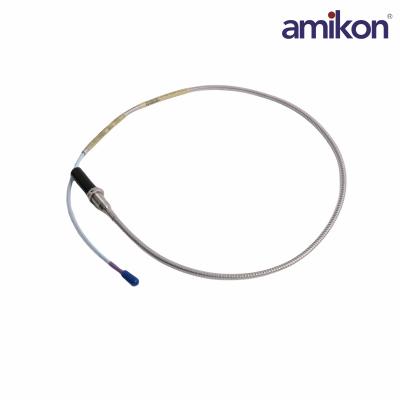

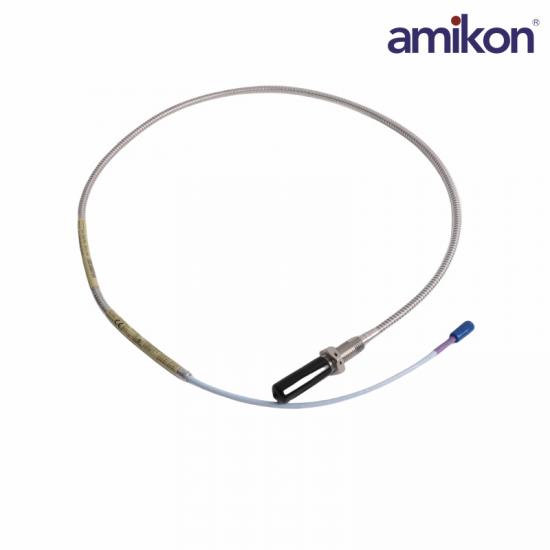

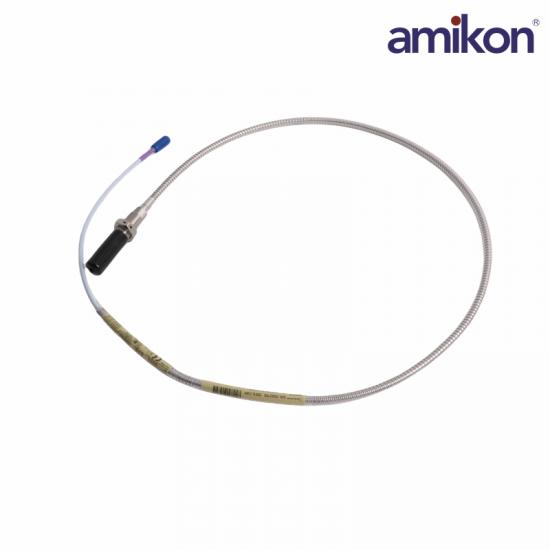

The Bently Nevada 330704-000-078-10-01-CN is a 3300 XL 11 mm proximity probe, designed for non-contact measurement of shaft vibration and displacement in rotating machinery.

2. What is the 330704-000-078-10-01-CN probe case length?

The “-078” option indicates a 78 mm case length, suitable for medium-depth installations.

3. What is the 330704-000-078-10-01-CN cable length?

The “-10” option corresponds to a 1.0 meter (3.3 ft) cable.

4. What connector type does it use?

It uses a miniature coaxial ClickLoc connector, ensuring secure and vibration-resistant connections.

5. Does it support hazardous area approvals?

Yes. The “-CN” option indicates multi-agency hazardous area certification (such as ATEX, IECEx, and NEPSI), making it suitable for explosive or hazardous environments.

Product Applications

Oil and Gas: Turbine compressors, pumps, fans.

Petrochemical: Bearings vibration monitoring for refineries and chemical reaction vessels.

Power Generation/Municipal: Axial displacement and rotational speed measurement for steam turbines and turbine generator sets.

General Heavy Industry: Large fluid power bearing machinery.
