The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to the standard 3300 XL 8 mm Transducer System. It is primarily used in the following applications where the longer linear range is necessary:

Axial (thrust) position measurements

Ramp differential expansion measurements on steam turbines

Rod position or rod drop measurements on reciprocating compressors

Tachometer and zero speed measurements

Phase reference (Keyphasor) signals

The 3300 XL 11 mm Proximitor Sensor is designed to replace the 7200-series 11 mm and 14 mm Transducer Systems. When upgrading from the 7200-series system to the 3300 XL 11 mm system, every component must be replaced with 3300 XL 11 mm components. In addition, the monitoring system must be updated. If using a 3500 Monitoring System, an updated version of the configuration software that lists the 3300 XL 11 mm Transducer System as a compatible option is required. Existing 3300 Monitoring Systems may need a modification.

Frequently Asked Questions

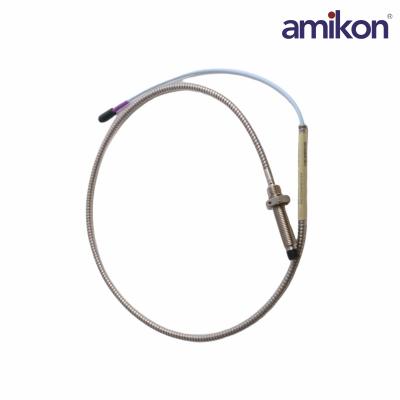

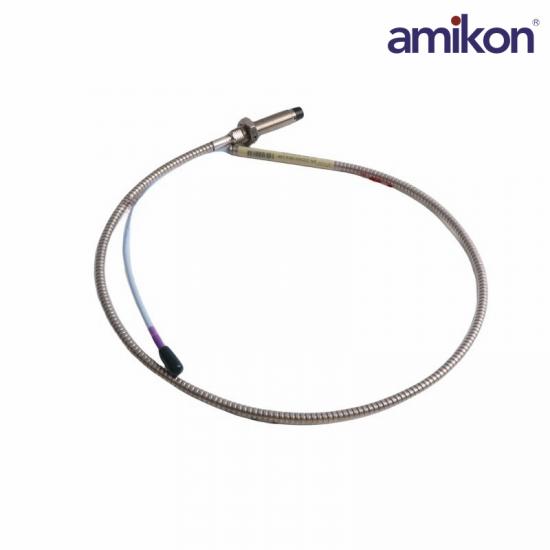

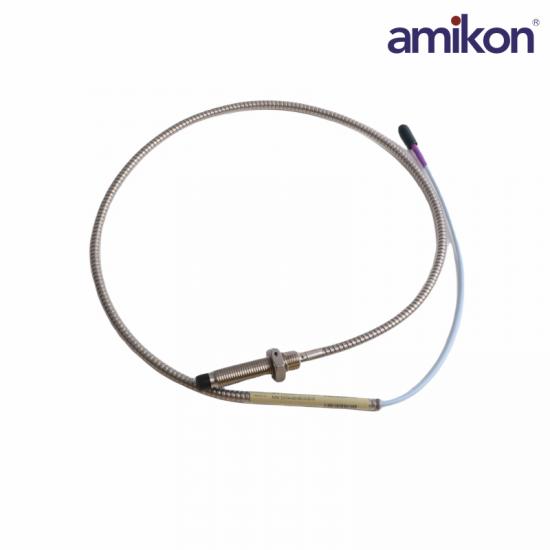

Q1: What is the 330704-000-040-10-02-00?

Q1: The Bently Nevada 330704-000-040-10-02-00 is part of the 3300 XL 11 mm Proximity Transducer System, used for non-contact measurement of shaft vibration, position, and dynamic movement in rotating machinery.

Q2: What does the “040” option represent?

Q2:  “040” indicates an overall case length of 40.0 mm, defining the probe housing size.

Q3: What does the “10” option represent?

A3: “10” specifies a total system cable length of 1.0 meter (3.3 feet).

Q4: What does the “02” connector option indicate?

A4: “02” refers to a miniature coaxial ClickLoc connector with standard cable, ensuring secure and reliable connections.

Q5: What is the 330704-000-040-10-02-00 main function of this proximity transducer system?

A5: It measures shaft position and vibration without physical contact, enabling accurate machinery condition monitoring.

Product Applications

Petroleum and Chemicals: Used for safety monitoring of key equipment such as centrifugal compressors, steam turbines, expansion machines, and centrifugal pumps.

Power Generation: Primarily used for measuring shaft vibration, shaft displacement, expansion difference, and keyway alignment of equipment such as steam turbines, generators, feed pumps, and induced draft fans in thermal power plants and nuclear power plants.

Metallurgy and Industrial Manufacturing: Large-scale fans, blowers, industrial transmission devices, etc.
