The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to the standard 3300 XL 8 mm Transducer System. It is primarily used in the following applications where the longer linear range is necessary:

Axial (thrust) position measurements

Ramp differential expansion measurements on steam turbines

Rod position or rod drop measurements on reciprocating compressors

Tachometer and zero speed measurements

Phase reference (Keyphasor) signals

Frequently Asked Questions

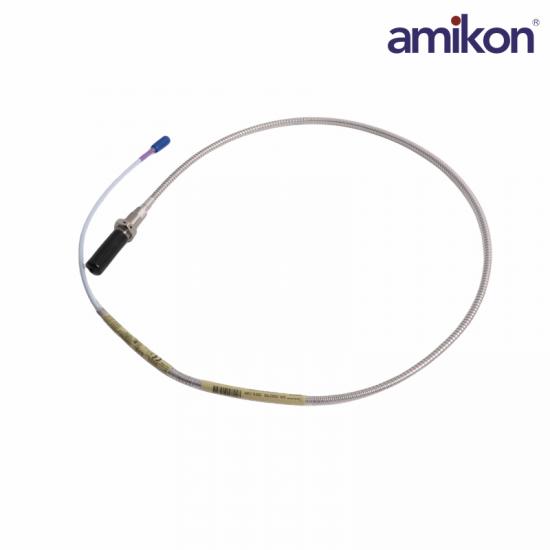

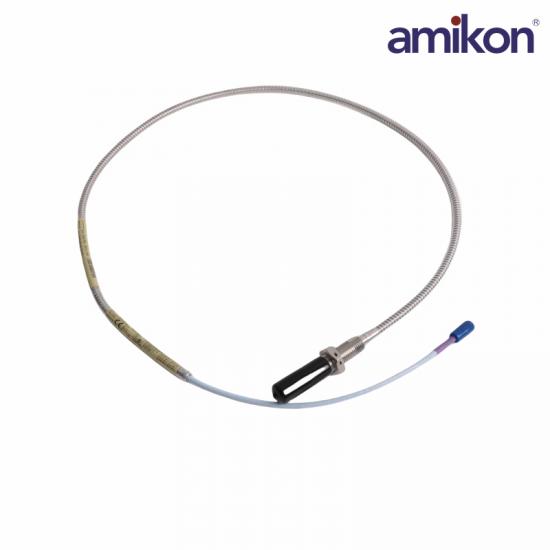

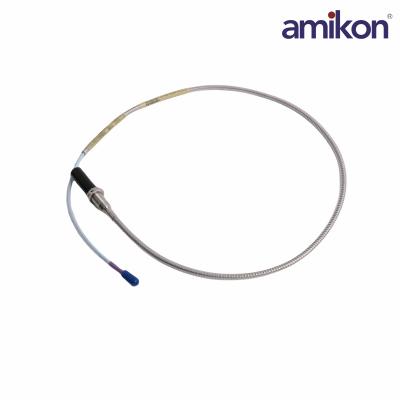

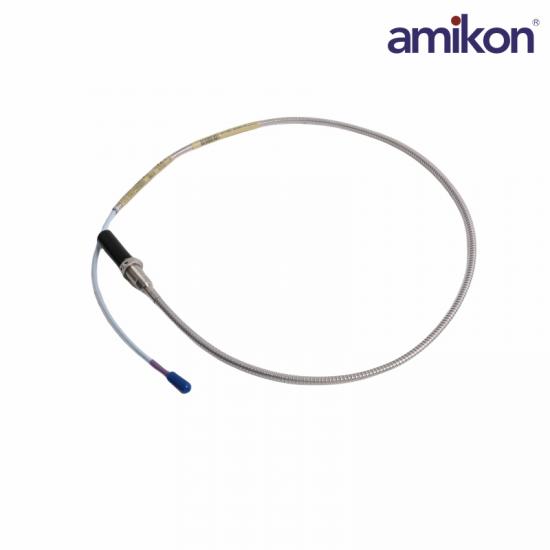

Q1: What is the Bently Nevada 330704-000-050-10-02-CN?

A1: It is a proximity probe designed for non-contact measurement of shaft vibration and displacement in rotating machinery monitoring systems.

Q2: What does the “050” option represent?

A2: “050” indicates an overall case length of 50 mm, defining the physical housing size of the probe.

Q3: What does the “10” option represent?

A3: “10” specifies a total cable length of 1.0 meter (3.3 feet).

Q4: What does the “02” connector option mean?

A4: “02” refers to a miniature coaxial ClickLoc™ connector with standard cable, providing a secure and reliable connection.

Q5: What does the “CN” option indicate?

A5: “CN” represents country-specific approvals for China, ensuring compliance with regional regulatory requirements.

Product Applications

Oil and gas: Used to monitor the bearing vibrations of gas turbines, compressors and pump sets to prevent unexpected shutdowns.

Electric power industry: In thermal power plants or hydroelectric power plants, monitor the shaft displacement and radial vibration of steam turbine generator sets to ensure safe operation of the units.

Chemical and petrochemical: Applied to the continuous monitoring of key equipment such as large centrifuges and fans, adapting to harsh industrial environments.

Steel and metallurgy: Monitor the mechanical health status of large motors and rolling equipment.
