The 3300 XL 11 mm Proximity Transducer System has a 3.94V/mm (100 mV/mil) output for non-contacting vibration anddisplacement measurements on fluid film bearing machines.The large 11 mm tip enables this transducer system to have alonger linear range compared to our standard 3300 XL 8 mmTransducer System. It is primarily used in the followingapplications where the longer linear range is necessary:

Axial (thrust) position measurements turbines

Rod position or rod drop measurements onreciprocating compressors

Tachometer and zero speed measurements

Phase reference (Keyphasor) signals

Ramp differential expansion measurements on steam

Frequently Asked Questions

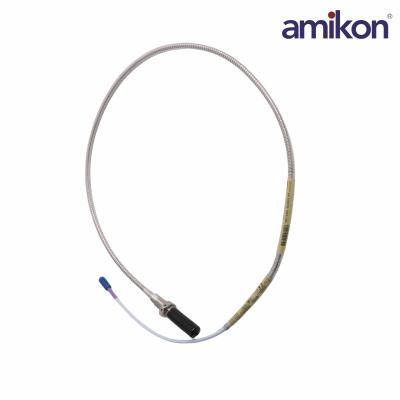

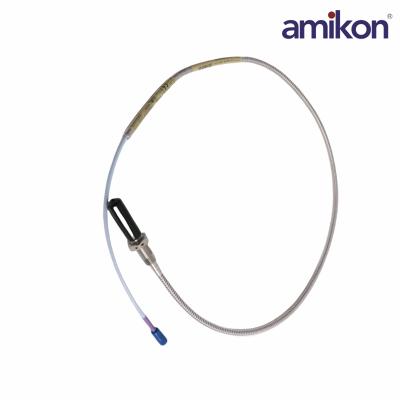

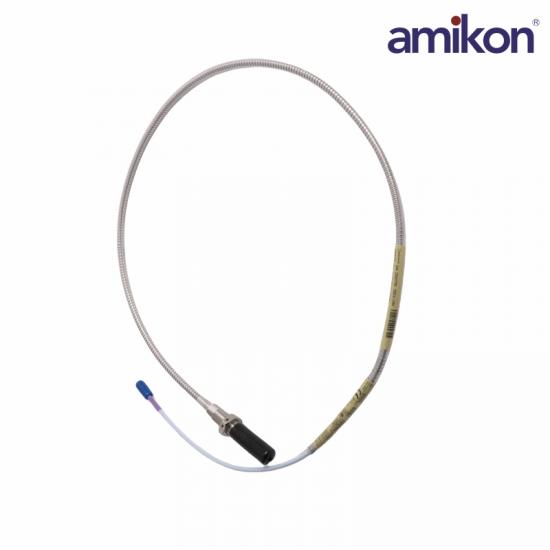

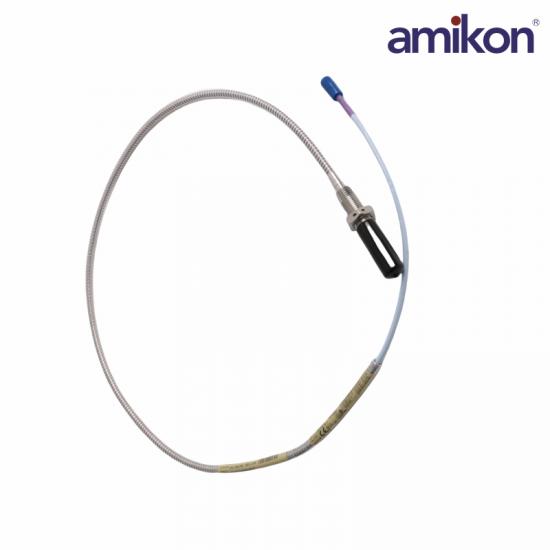

Q1: What is the Bently Nevada 330704-000-060-90-01-CN Proximitor Sensor used for?

A1: The Bently Nevada 330704-000-060-90-01-CN Proximitor Sensor is a signal conditioning device used with compatible proximity probes and extension cables to measure shaft vibration, axial position, runout, and displacement in rotating machinery.

Q2: What is the output scale factor of the 330704-000-060-90-01-CN Proximitor Sensor?

A2: The 330704-000-060-90-01-CN sensor features an output scale factor of 3.94 V/mm (100 mV/mil), providing precise conversion of shaft displacement into a proportional electrical output signal.

Q3: What does Overall Case Length Code (060) indicate?

A3: Overall Case Length Code (060) specifies an overall case length of 60 mm, making the sensor suitable for installations with this mounting requirement.

Q4: What does Total Length Code (90) represent?

A4: Total Length Code (90) indicates a system length of 9.0 meters (29.5 feet), ensuring proper calibration and compatibility with the associated proximity probe and extension cable.

Product Applications

Oil & Gas & Petrochemical: Monitoring shaft vibration in large compressors, gas turbines, and pumps.

Power Plants: Measuring the axial (thrust) position and differential slope of steam turbines.

Municipal Engineering: Vibration and displacement measurement of large fluid membrane bearing machinery.
