The primary uses for the 3300 XL NSv Transducer System arefor areas where counter bore, sideview, or rearviewrestrictions limit the use of standard Bently Nevada 3300 and3300 XL 5 and 8 mm Transducer Systems. It is also ideal forsmall target applications, such as measuring radial vibrationon shafts smaller than 51 mm (2 in) or axial position on flattargets smaller than 15 mm (0.6 in). It is primarily used in thefollowing applications on fluid-filmed bearing machineswhere a small shaft or reduced side-view is present:

Radial vibration and radial position measurements

Axial (thrust) position measurements

Tachometer and zero speed measurements

Phase reference (Keyphasor signals)

Frequently Asked Questions

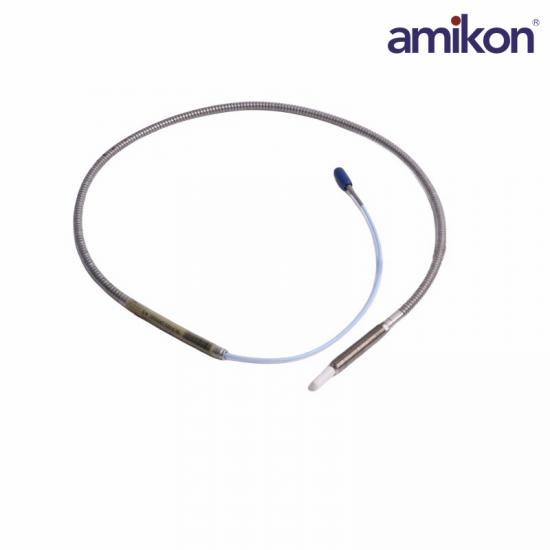

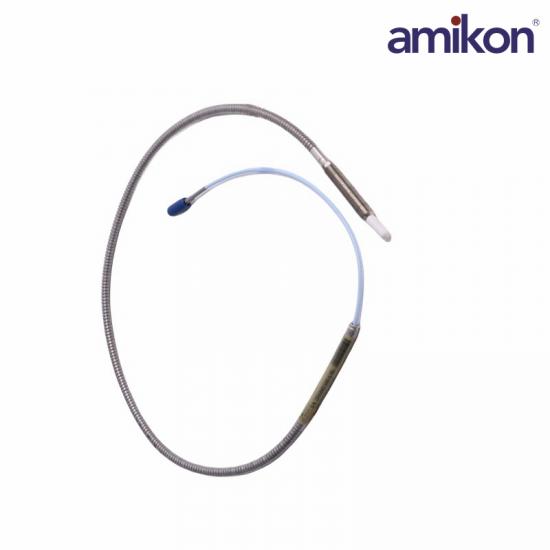

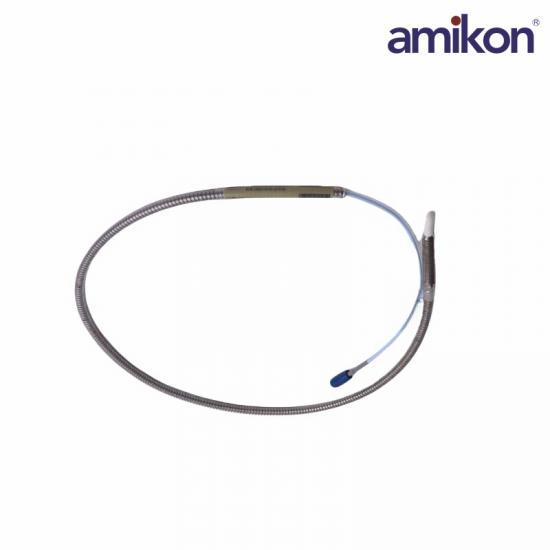

Q1: What is the Bently Nevada 330910-00-07-10-02-00 3300 NSv Proximity Probe used for?

A1: The Bently Nevada 330910-00-07-10-02-00 3300 NSv Proximity Probe is designed for non-contact measurement of shaft vibration, axial position, runout, and displacement in rotating machinery.

Q2: What is the supply sensitivity of the 330910-00-07-10-02-00 proximity probe?

A2: The 330910-00-07-10-02-00 probe features a supply sensitivity of less than 2 mV, helping maintain accurate measurements by minimizing the effects of power supply fluctuations.

Q3: What is the output resistance of the 330910-00-07-10-02-00 probe?

A3: The 330910-00-07-10-02-00 3300 NSv Proximity Probe has an output resistance of 50 Ω, ensuring reliable signal transmission and compatibility with Bently Nevada monitoring equipment.

Q4: What does Case Length Code (07) indicate?

A4: Case Length Code (07) specifies an overall case length of 70 mm, making the probe suitable for applications requiring this installation dimension.

Product Applications

Oil, gas, and refinery plants: Process gas compressors and centrifugal air compressors in offshore drilling platforms, refineries, and natural gas pipelines.

Chemical and fertilizer plants: Large high-pressure chemical pumps, axial/centrifugal fans, mixers, and material handling compressors.

Thermal and hydroelectric power plants: Bearing housings of small and medium-sized steam turbines, water turbines, and generator sets.

Large industrial refrigeration and air separation plants: Refrigeration compressors used for centralized cooling or gas liquefaction in factories.
