The 3300 XL 11 mm Proximity Transducer System consists of:

3300 XL 11 mm probe

3300 XL 11 mm extension cable

3300 XL 11 mm Proximitor Sensor¹

The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to the standard 3300 XL 8 mm

Transducer System. It is primarily used in the following applications where the longer linear range is necessary:

Axial (thrust) position measurements

Ramp differential expansion measurements on steam turbines

Rod position or rod drop measurements on reciprocating compressors

Tachometer and zero speed measurements

Phase reference (Keyphasor) signals

Frequently Asked Questions

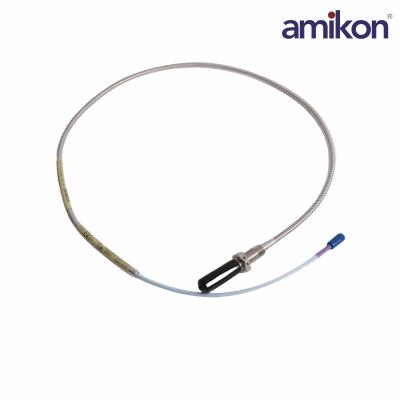

Q1: What is the Bently Nevada 330704-000-080-50-02-00?

A1: It is a proximity probe designed for non-contact measurement of shaft vibration and displacement in rotating machinery monitoring systems.

Q2: What does the “080” option represent?

A2: “080” indicates a case length of 80 mm.

Q3: What does the “50” option represent?

A3: “50” specifies a total cable length of 5.0 meters, suitable for installations requiring extended reach.

Q4: What is the 330704-000-080-50-02-00 thread size?

A4: The 330704-000-080-50-02-00 probe features an M14 × 1.5 thread, ensuring secure mounting in compatible applications.

Q5: What is the 330704-000-080-50-02-00 main function of this proximity probe?

A5: It measures shaft position and vibration without physical contact, enabling accurate condition monitoring and machinery protection.

Product Applications

Electric power industry: Steam turbines, water turbines, and power generation units in power plants.

Petroleum and natural gas industry: Oil refineries, natural gas pipelines, compression units.

Petrochemical and chemical industry: Reactors, mixers, and large pump sets in various chemical plants.

Municipal engineering: Large water pumps, fans and other infrastructure supporting machinery.
