The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to the standard 3300 XL 8 mm Transducer System. It is primarily used in the following applications where the longer linear range is necessary:

Axial (thrust) position measurements

Ramp differential expansion measurements on steam turbines

Rod position or rod drop measurements on reciprocating compressors

Tachometer and zero speed measurements

Phase reference (Keyphasor) signals

The 3300 XL 11 mm Proximitor Sensor is designed to replace the 7200-series 11 mm and 14 mm Transducer Systems. When upgrading from the 7200-series system to the 3300 XL 11 mm system, every component must be replaced with 3300 XL 11 mm components. In addition, the monitoring system must be updated. If using a 3500 Monitoring System, an updated version of the configuration software that lists the 3300 XL 11 mm Transducer System as a compatible option is required. Existing 3300 Monitoring Systems may need a modification.

Frequently Asked Questions

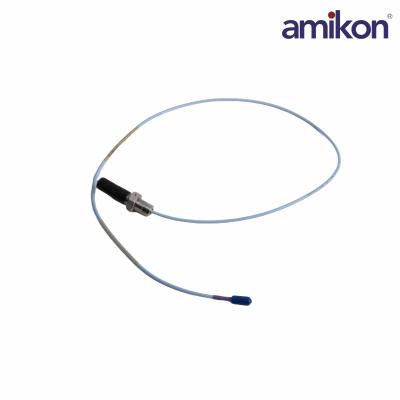

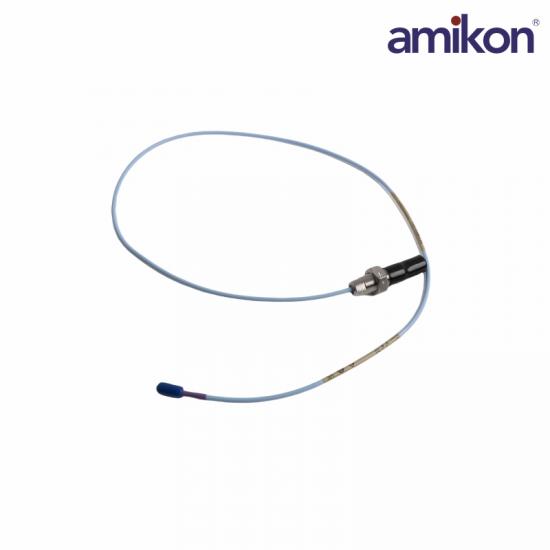

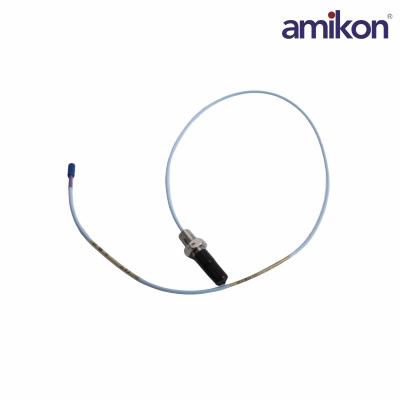

Q1: What is the Bently Nevada 330706-005-046-10-02-CN?

A1: It is a reverse mount proximity probe designed for non-contact measurement of shaft vibration and position, especially in applications where front mounting is not feasible.

Q2: What is the 330706-005-046-10-02-CN cable length?

A2: The 330706-005-046-10-02-CN probe is configured with a total cable length of 1.0 meter (3.3 feet).

Q3: What is the 330706-005-046-10-02-CN operating temperature range?

A3: It operates within −40°C to +121°C (−40°F to +250°F), suitable for demanding industrial environments.

Q4: What is the 330706-005-046-10-02-CN maximum operating pressure?

A4: The 330706-005-046-10-02-CN probe can withstand operating pressures up to 2000 psi (14 MPa), making it ideal for sealed or pressurized systems.

Q5: What type of output signal does it provide?

A5: It provides a 4–20 mA output signal, which is widely used for industrial process control and monitoring systems.

Product Applications

Power Plants: : Used for vibration monitoring of steam turbines, gas turbines, generators, and large electric motors.

Critical locations: At the bearing boxes of steam turbine generator sets, for measuring shaft vibration.

Oil & Gas: Applied to centrifugal compressors, centrifugal pumps, high-pressure pumps, and motor drive units.

Critical locations: Monitoring the seals and shaft displacements of high-pressure, high-speed pumps and compressors to prevent equipment damage due to excessive displacement.

Chemical & Petrochemical: Large power compressors, mixers, key mixing equipment.

Metallurgy & Heavy Industry: Fans, blowers, high-power electric motors, etc. rotating equipment
