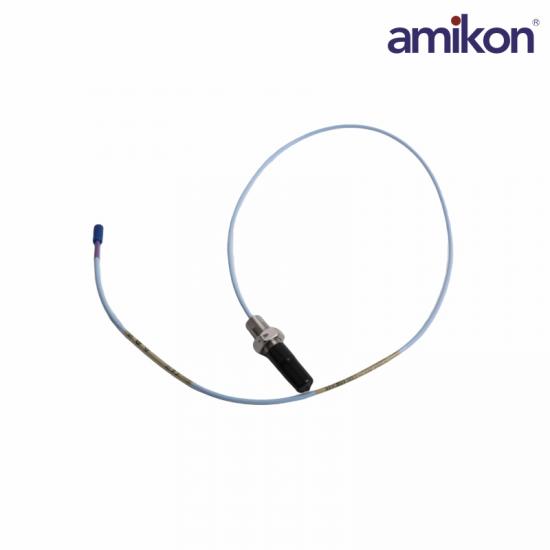

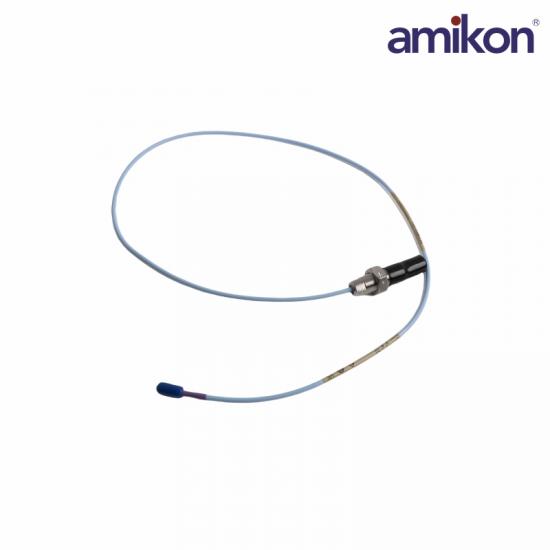

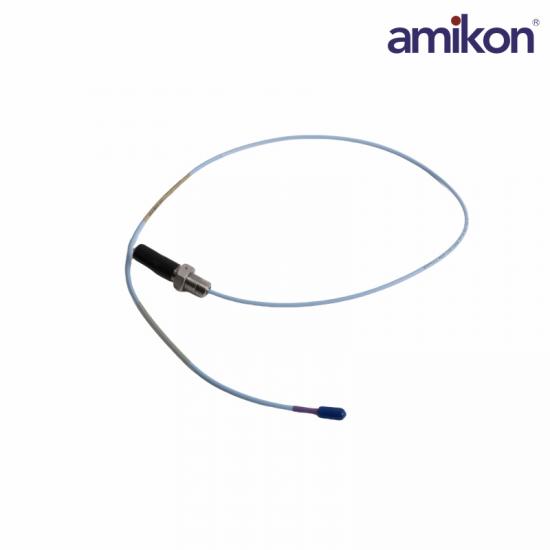

Manufacturer : Bently Nevada

Model: 330707-000-62-10-01-00

Product Type : Proximity Probe

Recommended Gap Setting: 2.5 mm (100 mils)

Standard DSL Range: Less than ±0.10 mm (±4 mils)

Extended DSL Range: Less than ±0.15 mm (±6 mils)

Probe Tip Material: Polyphenylene sulfide (PPS)

Probe Case Material: AISI 304 stainless steel (SST)

Recommended Torque: Finger tight

Maximum Torque: 0.565 N•m (5 in•lb)

Minimum Bend Radius (with or without SST Armor): 25.4 mm (1.0 in)

Proximitor Sensor Material: A380 aluminum

System Length: 5 or 9 meters, including extension cable

Extension Cable Armor (optional): Flexible AISI 302 SST with FEP outer jacket

The 3300 XL 11 mm probe comes in varying probe case configurations, including armored and unarmored ½-20, 5⁄8 -18, M14 X 1.5, and M16 X 1.5 probe threads. The reverse mount 3300 XL 11 mm probe comes standard with either 3⁄8-24 or M10 X 1 threads. All components of the transducer system have gold-plated brass ClickLoc connectors. ClickLoc connectors lock into place, preventing the connection from becoming loose. The patented TipLoc molding method provides a robust bond between the probe tip and the probe body. The probe cable is securely attached to the probe tip utilizing the patented CableLoc design that provides 330 N (75 lb) pull strength.

3300 XL Probes and Extension Cables can also be ordered with a FluidLoc cable option. This option prevents oil and other liquids from leaking out of the machine through the cable’s interior. The connector protector option provides additional protection of the connectors in a humid or moist environment. Connector protectors are recommended for all installations and provide increased environmental protection.
