Model Number	330752-25
Cable Length	2.5 meters
Sensitivity	5.7 mV/mm/s (145 mV/in/s) ±5%
Transverse Sensitivity	Less than 5% of main-axis sensitivity
Amplitude Linearity	±2% to 152 mm/s (6 in/s) peak
Mounted Resonant Frequency	Greater than 5 kHz
Output Bias Voltage	-12 ±2.0 VDC
Hardline Cable Operating Temperature	-55°C to +400°C (-67°F to +752°F)
Electronics Operating Temperature	-55°C to +121°C (-67°F to +250°F)
Shock Survivability	24535 m/s² (2500 g) peak

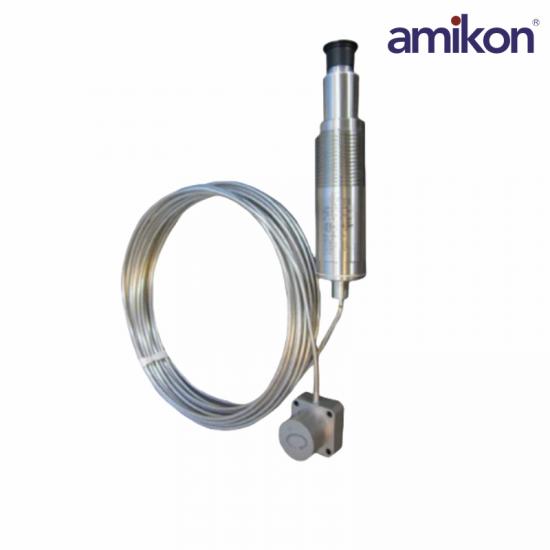

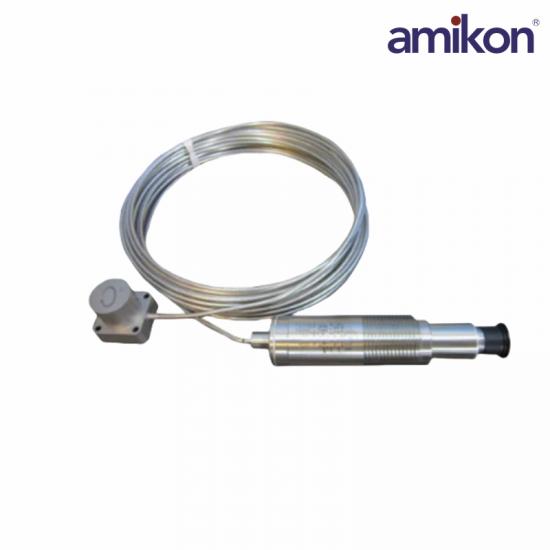

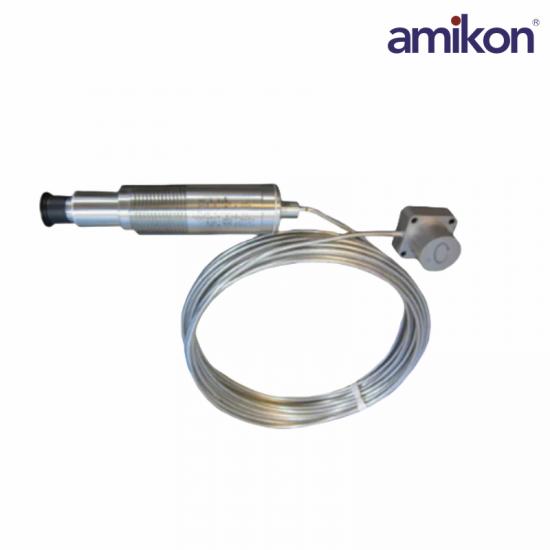

The 330750 and 330752 High Temperature Velomitor System sensor head and integral cable are designed for hightemperature environments. This enables you to mount thesensing head on surfaces with temperatures up to +400°c(+752°F)

To accomplish this, the transducer design segregates thesensing element from the signal conditioning electronics. Thetwo are permanently connected using an integrated cable.The integrated cable eliminates connectors which are asignificant source of transducer failures.

The cable enables you to position the signal conditioningelectronics in a cooler location. The internal electronicswithstands temperatures of 55°C to +121°C (-67°F to +250°F).The integrated design makes it possible to capturemachinery performance data comparable to other BentlyNevada Velomitor transducers, but at significantly highertemperatures.

Frequently Asked Questions

What is the primary function of the Bently Nevada 330752-25?

It measures casing and bearing housing absolute vibration on high-temperature machinery.

What does the "-25" signify in the part number?

It indicates the specific integral cable length, measuring exactly 2.5 meters (8.2 feet).

What is the maximum operating temperature for the sensor head?

The rugged sensor head safely withstands extreme temperatures up to +400°C (+752°F).

What type of signal output does this system provide?

It delivers a standard 4-20 mA loop-powered velocity output proportional to vibration severity.

Product Applications

Power plants: Thermal power plants, gas turbine power plants, nuclear power plants, and combined heat and power (CHP) plants.

Oil refineries and chemical plants (petrochemical industry): Crude oil processing plants, ethylene cracking plants, large fertilizer plants, and other industrial sites with high-temperature media.

Steel mills and metallurgical plants: Blast furnace blower rooms, hot rolling and cold rolling workshops, and other heavy industrial plants with high dust and high temperatures.

Cement plants and mining industry: Processing plants with large high-temperature rotary kilns and high-load ventilation fans.
