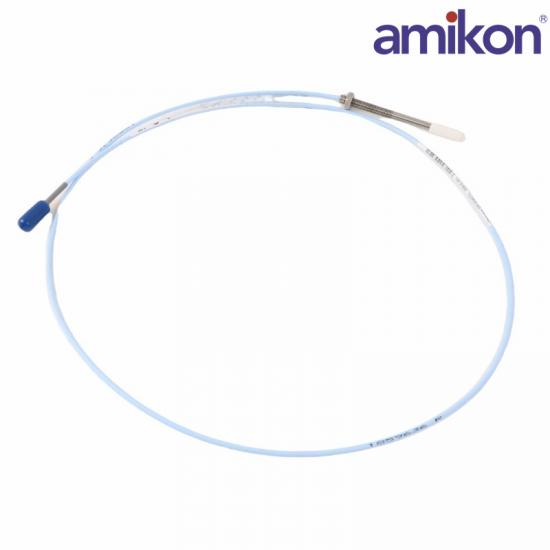

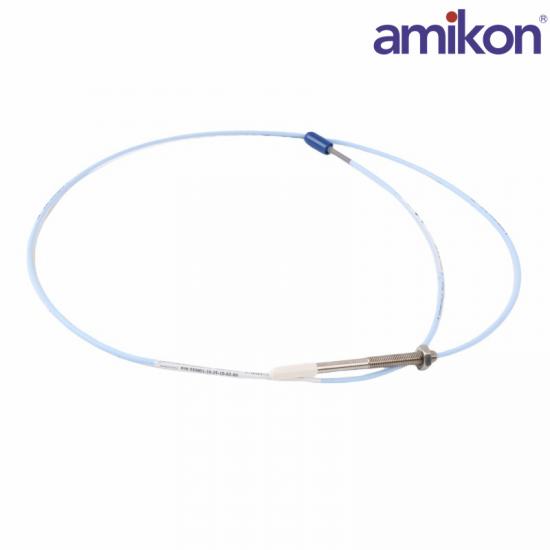

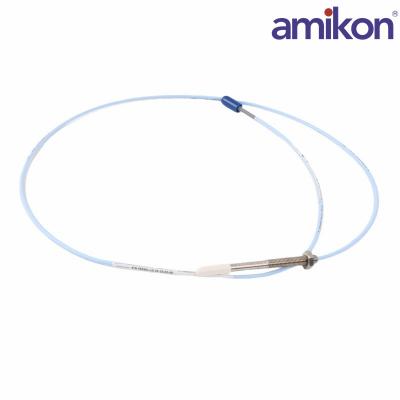

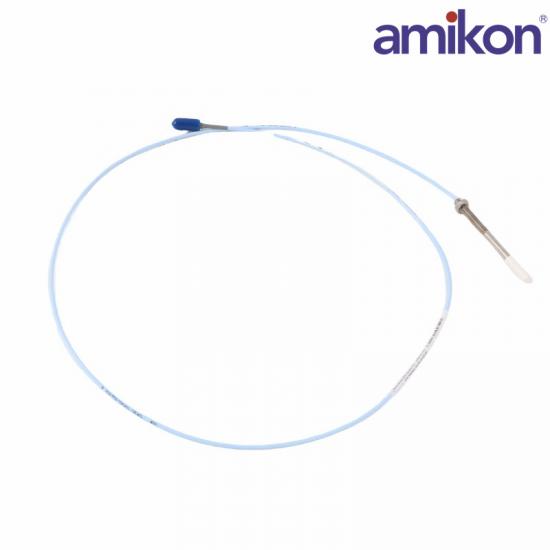

The Bently Nevada 330901-10-24-10-02-00 is a 3300 NSv (Narrow Side-view) proximity probe system, which is part of the Bently Nevada 3300 series of eddy current proximity transducers used for machinery vibration monitoring and shaft position measurements. These probes are widely used in critical rotating machinery in industries such as power generation, oil and gas, and other heavy industries.

Manufacturer: Bently Nevada

Model: 330901-10-24-10-02-00

Product Type: 3300 NSv Proximity Probe

Country of  Origin: USA

330901: 3300 NSv Probe, 1/4-28 UNF thread, unarmored

Unthreaded length options: 17 = 1.7 inches

Overall housing length options: 24 = 2.4 inches

Probe Tip Material: Polyphenylene Sulfide (PPS).

Probe Housing Material: AISI 304 Stainless Steel (SST).

330901-10-24-10-02-00 Storage Temperature: -51°C to +177°C (-60°F to +351°F)

330901-10-24-10-02-00 Operating temperature: -35°C to +177°C.

330901-10-24-10-02-00 Weight: 0.15 kg

Probe Length: 10 meters

Tip Diameter: 8 mm

Frequency Response: Up to 10 kHz.

Material: Stainless steel for corrosion resistance.

The Bently Nevada 330901-10-24-10-02-00  3300 NSv Proximity Probes are designed for applications where space is limited and smaller probe sizes are required. The NSv series is typically used for measuring radial vibration, axial position, or thrust position in situations where smaller probe systems are necessary. These probes detect the distance between the probe tip and a conductive surface, such as a rotating shaft, providing critical information about the machinery’s health and operational stability.
