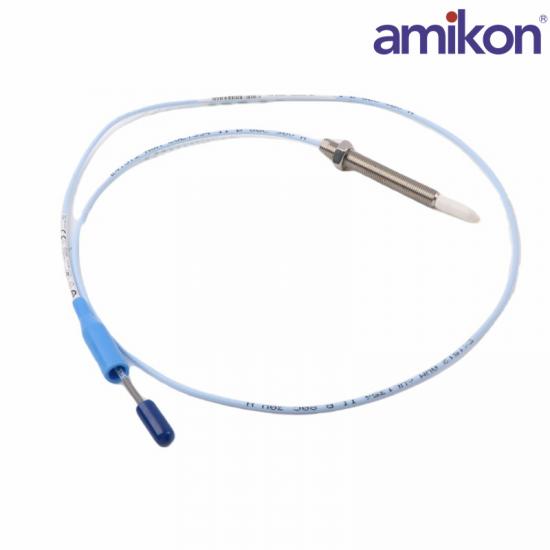

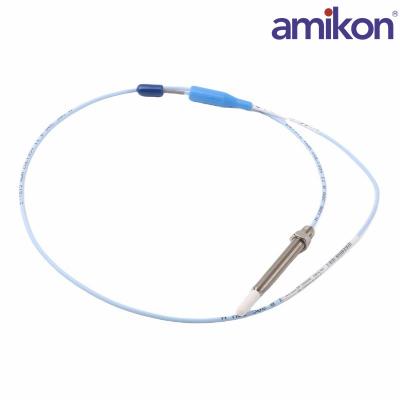

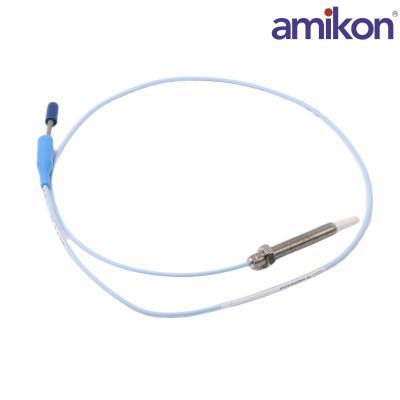

The Bently Nevada 330908-21-35-10-02-00 is a proximity probe from the 3300 NSv (Narrow Side-view) series, designed for compact machine monitoring. This probe enables precise non-contact vibration and position measurement for high-speed rotating equipment in tight spaces.

The primary uses for the 330908-21-35-10-02-00 3300 XL NSv Transducer System are for areas where counter bore, sideview or rearview restrictions limit the use of standard Bently Nevada 330908-21-35-10-02-00 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51mm (2in) or axial position on flat targets smaller than 15mm (0.6in).

Bently Nevada 3300 NSv extension cables are designed to connect the 3300 NSv proximity probe to the Proximitor Sensor (integral in the 990 vibration transmitter). The cables are available in 4.0, 4.5, 6.0 and 6.5 meter lengths and include a number of connector options.

Bently Nevada 330908-21-35-10-02-00：

Polyphenylene sulfide (PPS) probe tip material

AISI 304 stainless steel (SST) probe case material

-30 to 351°F (-34 to 177°C) operating temp

Viton O-ring

Part of 3300 XL NSv Proximity Transducer System

330908-21-35-10-02-00 3300 NSv Probe, 3/8-24 UNF thread, without armor

Unthreaded Length Option：1.0 in.

Overall Case Length Option ：5.5 in.

Total Length Option ：0.5 metre (20 in)

Connector and Cable-Type Option ：Miniature coaxial ClickLoc connector, standard cable
