The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. The 3300 XL NSv Proximity Transducer System consists of:

a 3300 NSv probe

a 3300 NSv extension cable

a 3300 XL NSv Proximitor Sensor(1)

The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). It is primarily used in the following applications on fluid-filmed bearing machines where a small shaft or reduced side-view is present:

Radial vibration and radial position measurements

Axial (thrust) position measurements

Tachometer and zero speed measurements

Phase reference (Keyphasor signals)

Frequently Asked Questions

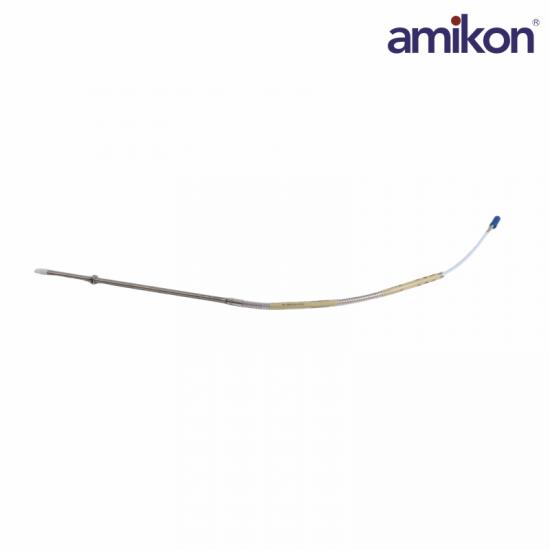

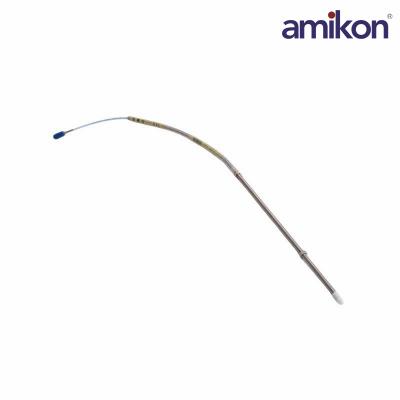

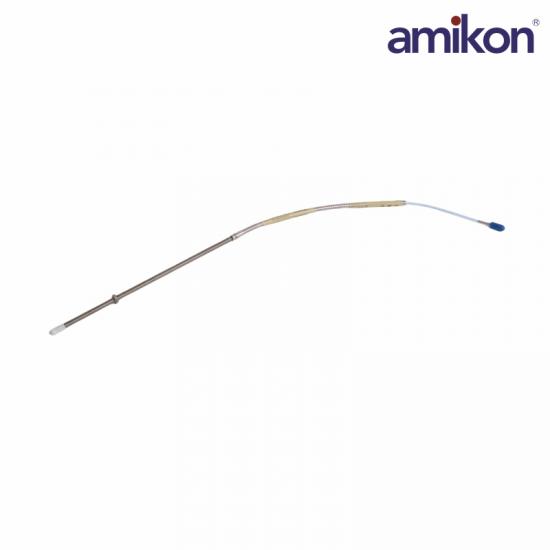

1. What is the 330902-00-10-10-01-05?

The Bently Nevada 330902-00-10-10-01-05 is a 3300 NSv proximity detector.

2. What type of probe is it?

This 330902-00-10-10-01-05 model belongs to the 3300 NSv series, which is typically used for reverse mount applications and designed to handle tight installation spaces while maintaining accurate measurement.

3. What is the 330902-00-10-10-01-05 probe thread type?

It is supplied with a 1/4-28 UNF thread, suitable for standard mounting configurations in machinery housings.

4. What is the 330902-00-10-10-01-05 total cable length?

The “-10” total length option corresponds to a 1.0 meter (39 inches) cable.

5. What connector type does it use?

It features a miniature coaxial ClickLoc connector with a connector protector, ensuring secure and reliable connections.

Product Applications

Oil and Gas Facilities: Used for vibration and shaft displacement monitoring of centrifugal compressors, centrifugal pumps, gas turbines, and steam turbines.

Power Generation Facilities: Applied to high-speed generators, induced draft fans, and forced ventilation fans.

Petrochemical & Chemical Facilities: Utilized for mixers in petrochemical reactors, large-scale compressor units, and key pumps.
