The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. The 3300 XL NSv Proximity Transducer System consists of:

a 3300 NSv probe

a 3300 NSv extension cable

a 3300 XL NSv Proximitor Sensor(1)

The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). It is primarily used in the following applications on fluid-filmed bearing machines where a small shaft or reduced side-view is present:

Radial vibration and radial position measurements

Axial (thrust) position measurements

Tachometer and zero speed measurements

Phase reference (Keyphasor signals)

Frequently Asked Questions

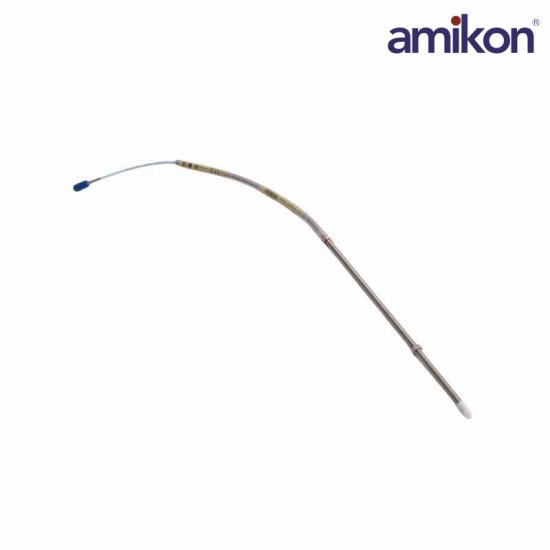

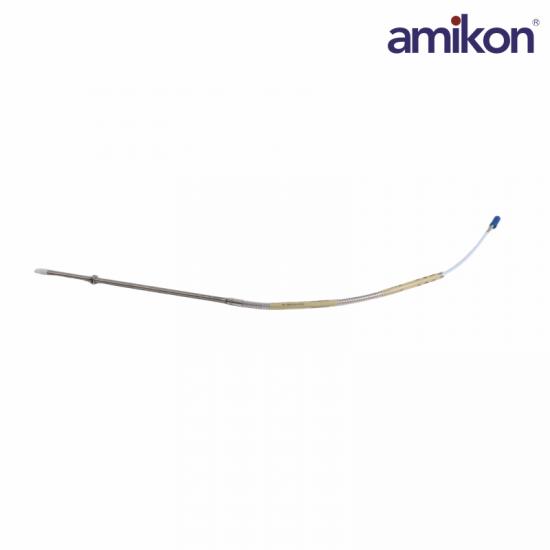

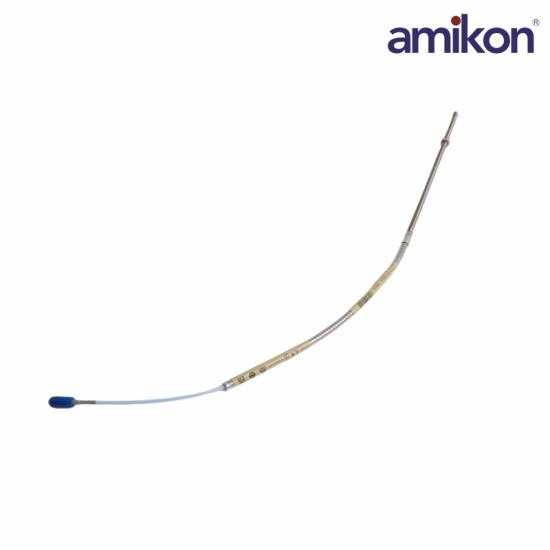

1. What is the 330902-00-40-10-01-05?

The Bently Nevada 330902-00-40-10-01-05 is a 3300 NSv proximity probe used for non-contact vibration and position measurement in rotating machinery such as compressors, turbines, and motors.

2. What type of probe is it?

It belongs to the 3300 NSv series of reverse-mounted proximity probes, suitable for space-constrained mechanical applications, and can significantly improve performance.

3. What is the cable length of 330902-00-40-10-01-05?

The “-10” configuration corresponds to a 1.0 meter (39 inch) system length cable.

4. What connector type does it use?

It uses a miniature coaxial ClickLoc connector with connector protector, ensuring secure and stable signal transmission.

5. What is the case length option (-40)?

The “-40” option represents an overall case length of approximately 4.0 inches, depending on configuration.

Product Applications

Compressor Factory: Centrifugal air compressors, process gas compressors, refrigeration compressors.

Oil and Gas: Pumps, industrial drives, heavy-duty gas compressors.

Chemical and Petrochemical: Compression systems for handling toxic or high-pressure gases.

Power Plants: Displacement and vibration monitoring for rotating machinery such as steam turbines and turbine compressors.
