Brand/Manufature:
Bently NevadaProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
Coo|
Brand Name |
Bently Nevada |
|
Model Number |
330903-00-09-10-02-05 |
|
Type |

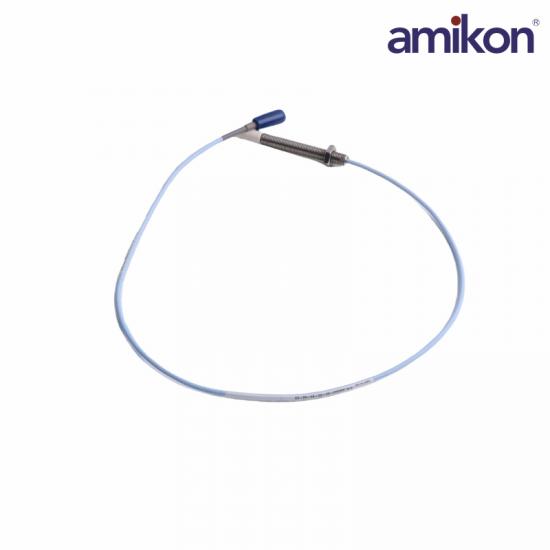

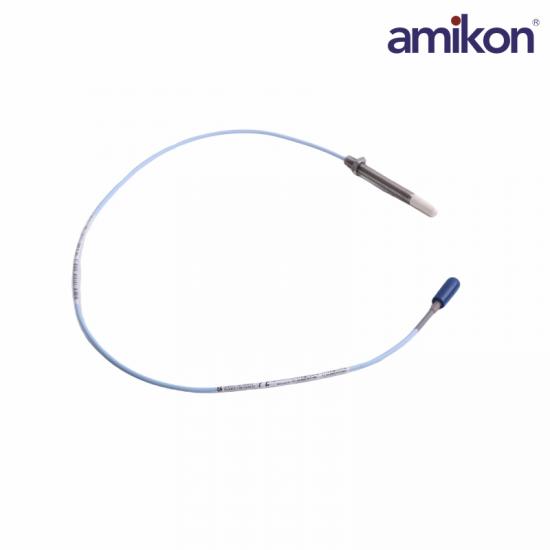

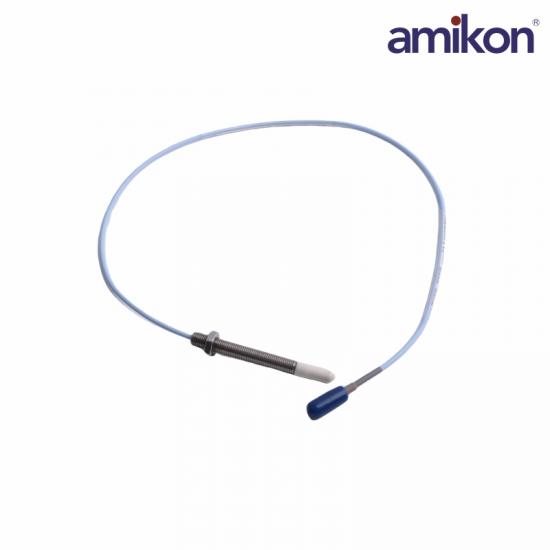

3300 XL NSv Transducer System |
|
Output Resistance |
50 Ω |
|
Recommended Gap Setting |
1.0 mm (40 mils) |
|
Extension Cable DC Resistance |
Center conductor: 0.220 Ω/m (0.067 Ω/ft) |
|
Extension Cable Capacitance |
69.9 pF/m (21.3 pF/ft) typical |
|
Connector Material |
Gold-plated brass |
|
Extension Cable Material |
75 Ω coaxial, fluoroethylene propylene (FEP) insulated |
|
Proximitor Sensor Material |
A380 aluminum |
|
System Length |
5 or 7 meters including extension cable |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 304 stainless steel (SST) |
|
Probe Weight |
Approximately 14 to 150 g (0.5 to 5.3 oz) |
|
Extension Cable Weight |
45 g/m (0.5 oz/ft) |
|
Armored Extension Cable Weight |
64 g/m (0.7 oz/ft) |
|
Proximitor Sensor Weight |
255 g (9 oz) |
The 3300 XL NSv Transducer System design allows it to replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System. Upgrades from the 3300 RAM system to the 3300 XL NSv system may use the existing probe, extension cable, and monitoring system with 3300 XL NSv Proximitor Sensor. Upgrades from the 3000-series or 7000-series Transducer System must replace the probe, extension cable, and Proximitor Sensor with NSv components.
The 3300 XL NSv Transducer System has an Average Scale Factor of 7.87 V/mm (200 mV/mil), which is the most common output for eddy current transducers. Its enhanced sideview and small target characteristics give it a shorter linear range than the Bently Nevada 3300 XL-series 5 and 8 mm Transducer System. The 1.5 mm (60 mils) of linear range exceeds the linear range of the 3000-series 190 Transducer System.
