Brand/Manufature:
Bently NevadaProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
Coo|
Brand Name |
Bently Nevada |
|
Model Number |

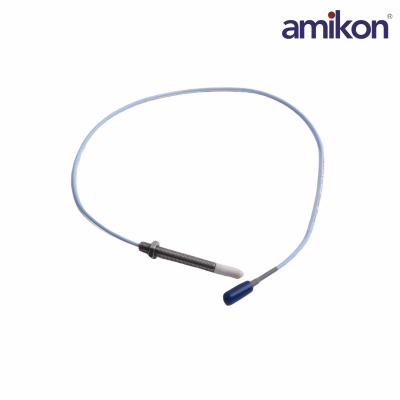

330903-00-06-10-02-05 |
|
Type |
Transducer System |
|
Extension Cable DC Resistance |
Center conductor: 0.220 Ω/m (0.067 Ω/ft) |
|
Shield: 0.066 Ω/m (0.020 Ω/ft) |
|
|
Extension Cable Capacitance |
69.9 pF/m (21.3 pF/ft) typical |
|
Recommended Gap Setting |
1.0 mm (40 mils) |
|
Deviation from Best Fit Straight Line (DSL) |
Less than ±0.06 mm (±2.3 mils) |
|
Output Resistance |
50 Ω |
|
Connector Material |
Gold-plated brass |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 304 stainless steel (SST) |
|
Recommended Torque |
Finger tight |
|
Maximum Torque |
0.56 N•m (5 in•lb) |

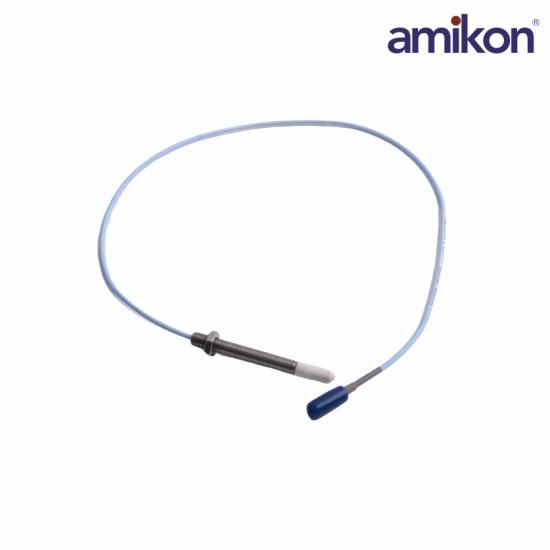

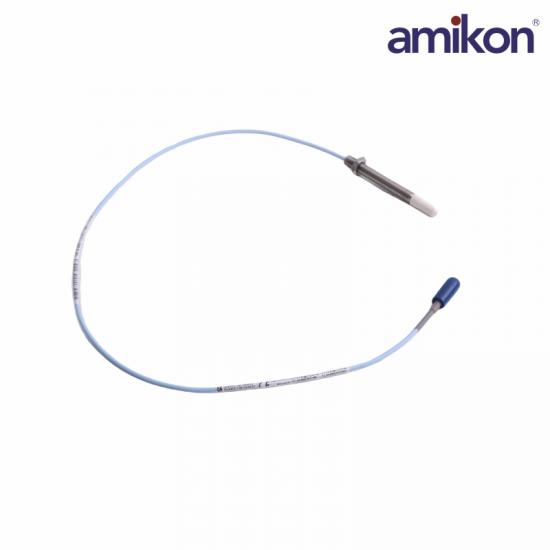

The 3300 XL 11 mm Proximity Transducer System is designed for non-contacting vibration and displacement measurements on fluid film bearing machines. It has a 3.94 V/mm (100 mV/mil) output, which offers a longer linear range compared to the standard 3300 XL 8 mm Transducer System, thanks to its large 11 mm tip.
This transducer system is primarily used in applications where the longer linear range is necessary, including:
Axial (thrust) position measurements
Ramp differential expansion measurements on steam turbines
Rod position or rod drop measurements on reciprocating compressors
Tachometer and zero speed measurements
Phase reference (Keyphasor) signals
