Description：

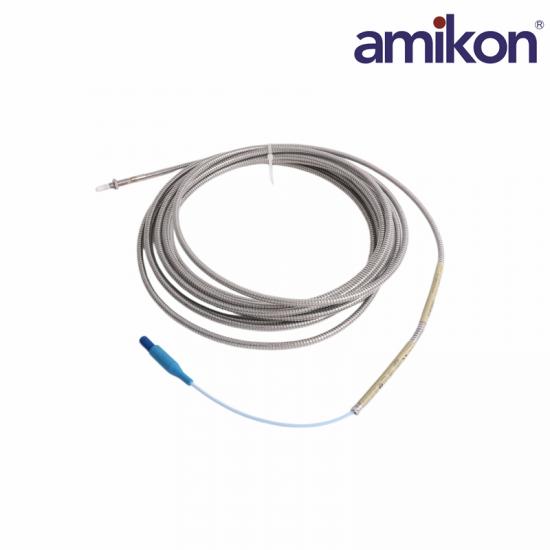

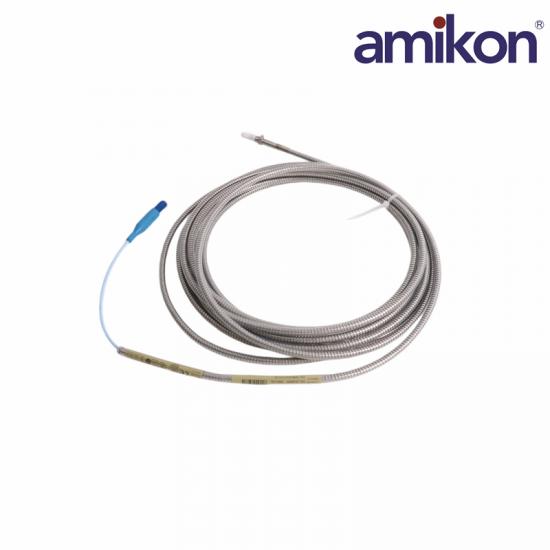

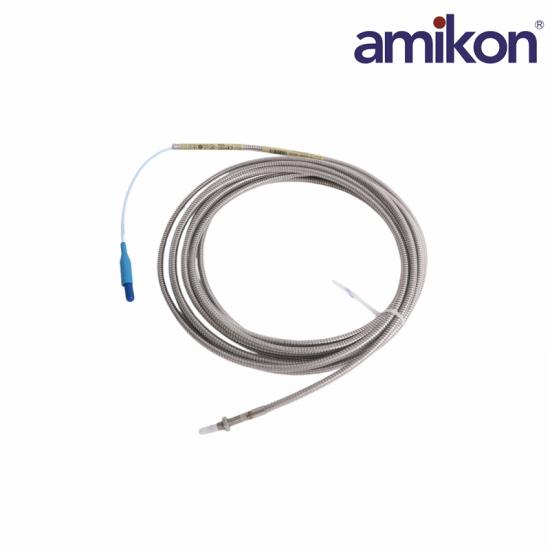

The 3300 NSv probe comes in varying probecase configurations, including armored andunarmored 1/4-28,3/8-24, M8x1 and M10x1 probe threads. The reverse mount 3300 NS vprobe comes standard with either 3/8-24 orMI0xl threads. All components of the transducer system have gold-plated brass ClickLoc connectors.ClickLoc connectors lockinto place and prevent the connection fromloosening. The patented TipLoc moldingmethod provides a robust bond between theprobe tip and the probe body. Bently Nevada'spatented CableLoc design provides 220 N (50Ib) of pull strength and securely attaches theprobe cable to the probe tip. Connectorprotectors are recommended for use on theprobe-to-extension cable connection, as wellas on the cable-to-Proximitor Sensorconnection. Connector protectors prevent mostliquids from entering into the ClickLocconnectors and adversely affecting theelectrical signal(2).

Notes:

(1) Proximitor Sensors are supplied by default from the factory calibrated to AIsI 4140 steel.Calibration to other target materials isavailable upon request.

(2) silicone tape is also provided with each3300 NSv extension cable and can be usedinstead of connector protectors. silicone tape isnot recommended in applications where theprobe-to-extension cable connection will beexposed to turbine oil.

Specification：

Frequently asked questions

Q1: What is the Bently Nevada 330904-00-15-10-02-CN used for?

A: The 330904-00-15-10-02-CN is a 3300 NSv Proximity Probe used for non-contact measurement of shaft vibration, shaft position, and displacement in rotating machinery.

Q2: What is the 330904-00-15-10-02-CN overall case length of this proximity probe?

A: The 330904-00-15-10-02-CN probe features an overall case length of 150 mm, providing extended reach for specialized mounting requirements.

Q3: What is the total length of the 330904-00-15-10-02-CN probe assembly?

A: This 330904-00-15-10-02-CN model has a total length of 1.0 meter (39 inches), allowing flexible installation in machinery monitoring systems.

Q4: What is the Incremental Scale Factor (ISF) of the 330904-00-15-10-02-CN?

A: The 330904-00-15-10-02-CN probe provides an Incremental Scale Factor (ISF) of 7.87 V/mm (200 mV/mil).

Product Applications

Air and Refrigeration Compressor Manufacturers: Widely used in centrifugal air compressors, refrigeration compressors, and process gas compressors to monitor minute shaft displacements.

Petrochemical and Refinery Plants: Used for continuous condition monitoring of high-speed pumps, large fans, and various explosion-proof flammable and explosive gas compressor units.

Thermal and Hydropower Plants: Installed on small steam turbines, water turbines, and feedwater pumps to accurately detect mechanical wear.
