Description：

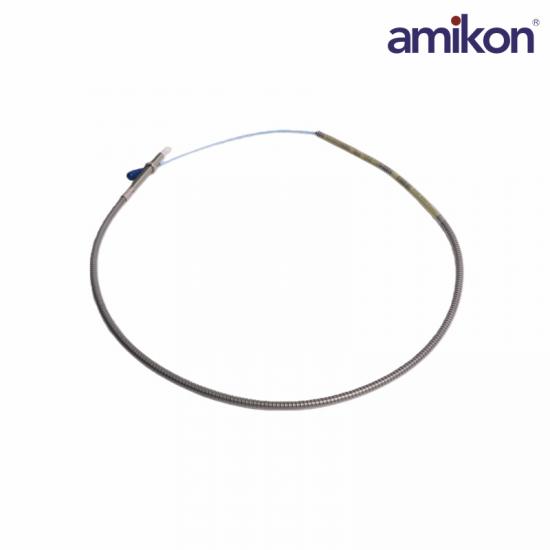

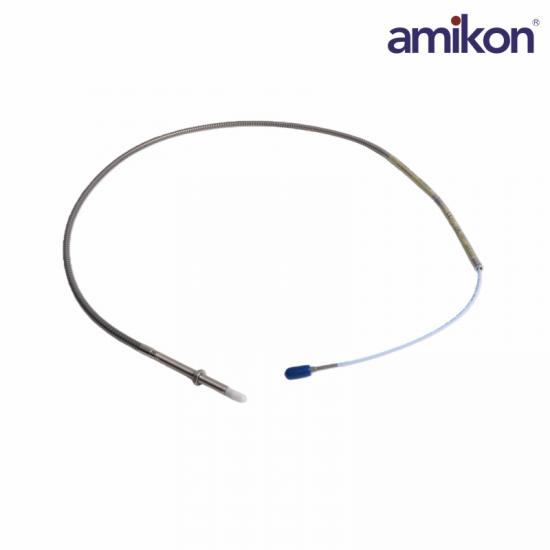

The 3300 XL NSv Proximity Transducer system is intended foruse with centrifugal air compressors, refrigerationcompressors, process gas compressors, and other machineswith tight installation requirements. The 3300 XL NSv ProximityTransducer System consists of:

a 3300 NSv probe

a 3300 NSv extension cable

a 3300 XL NSv Proximitor Sensor(1)

The 3300 XL NSv Transducer System has anAverage Scale Factor of 7.87 V/mm (200mV/mil), which is the most common output foreddy current transducers. Its enhanced side-view and small target characteristics give it ashorter linear range than the Bently Nevada3300 XL-series 5 and 8 mm Transducer System.The 1.5 mm (60 mils) of linear range exceedsthe linear range of the 3000-series 190Transducer System.

Specification：

Frequently asked questions

1. What is the frequency response of the Bently Nevada 330904-00-16-10-02-05?

The Bently Nevada 330904-00-16-10-02-05 offers a frequency response of 0 Hz (DC) to 10 kHz, making it suitable for continuous shaft vibration and position monitoring.

2. What is the scale factor of this 330904-00-16-10-02-05 proximity probe?

The 330904-00-16-10-02-05 probe provides a scale factor of 7.87 V/mm (200 mV/mil), delivering high sensitivity for precise displacement measurements.

3. What is the 330904-00-16-10-02-05 recommended target gap?

The 330904-00-16-10-02-05 recommended target gap is 1.0 mm (40 mils), which helps ensure accurate and stable sensor performance.

4. Why is the 0 Hz to 10 kHz frequency response important?

The 0 Hz (DC) to 10 kHz frequency response enables the probe to measure both static shaft position and dynamic vibration, supporting comprehensive machinery condition monitoring.

Product Applications

Air and gas compressor manufacturers: Widely used for monitoring bearing displacement and shaft vibration in centrifugal air compressors, refrigeration compressors, and various process gas compressors.

Oil, petrochemical, and chemical plants: Used for online condition monitoring of small centrifugal pumps, canned motor pumps, high-speed gearboxes, and closed fluid machinery.

Thermal and hydroelectric power plants: Used for measuring axial displacement (thrust position), radial vibration, and keyphasor speed of small and medium-sized steam turbines, auxiliary feedwater pump motors, and high-speed rotors in power plants.
