Description：

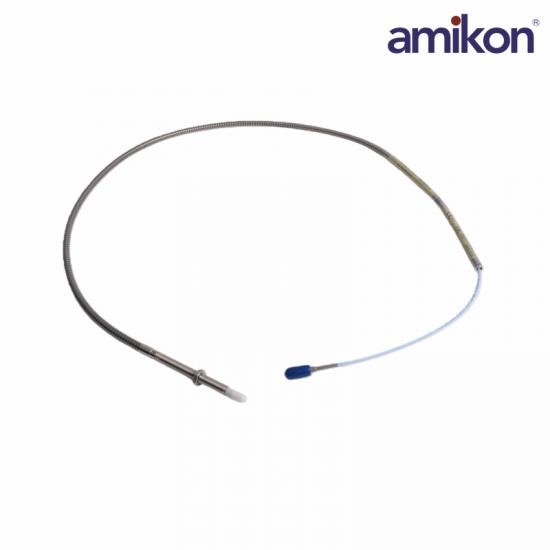

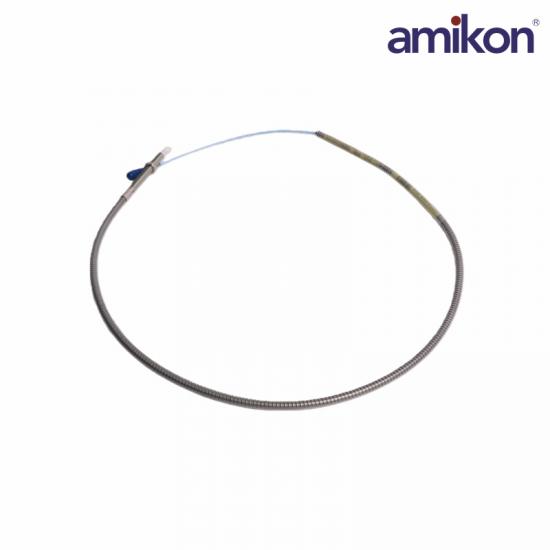

The primary uses for the 3300 XL NSv Transducer System arefor areas where counter bore, sideview, or rearviewrestrictions limit the use of standard Bently Nevada 3300 and3300 XL 5 and 8 mm Transducer Systems. It is also ideal forsmall target applications, such as measuring radial vibrationon shafts smaller than 51 mm (2 in) or axial position on flattargets smaller than 15 mm (0.6 in). It is primarily used in thefollowing applications on fluid-filmed bearing machineswhere a small shaft or reduced side-view is present:

Radial vibration and radial position measurements

Axial (thrust) position measurements

Tachometer and zero speed measurements

Phase reference (Keyphasor signals)

The 3300 XL NSv Transducer System has anAverage Scale Factor of 7.87 V/mm (200mV/mil), which is the most common output foreddy current transducers. Its enhanced side-view and small target characteristics give it ashorter linear range than the Bently Nevada3300 XL-series 5 and 8 mm Transducer System.The 1.5 mm (60 mils) of linear range exceedsthe linear range of the 3000-series 190Transducer System.

Specification：

Frequently asked questions

1. What is the system linear range of the Bently Nevada 330904-00-22-10-02-05?

The Bently Nevada 330904-00-22-10-02-05 provides a system linear range of 1.5 mm (60 mils), enabling accurate non-contact measurement of shaft displacement and vibration.

2. What is the 330904-00-22-10-02-05 nominal sensitivity of this proximity probe?

The 330904-00-22-10-02-05 probe has a nominal sensitivity of 7.87 V/mm (200 mV/mil), delivering precise and consistent signal output for machinery condition monitoring.

3. What is the 330904-00-22-10-02-05 operating temperature range?

The 330904-00-22-10-02-05 operates within a temperature range of -51°C to +177°C (-60°F to +351°F), making it suitable for demanding industrial environments.

4. Why is the 1.5 mm linear range important?

A 1.5 mm (60 mils) linear range ensures accurate displacement measurements within the specified operating range, supporting reliable vibration and shaft position monitoring.

Product Applications

Oil & Gas and Refineries: Used for mechanical condition monitoring (MCM) of closed pump bodies, turbines, and key refining units.

Chemical and Pharmaceutical Plants: Due to the use of highly chemical-resistant materials for the probes, they are ideal for reaction stirrers and special compressors exposed to corrosive process gases.

Thermal and Hydropower Plants: Used for bearing condition monitoring, speed, and keyphasor signal acquisition for small steam turbines, feedwater pumps, and high-speed auxiliary equipment.
