Description：

The 3300 XL NSv Transducer System has anAverage Scale Factor of 7.87 V/mm (200mV/mil), which is the most common output foreddy current transducers. Its enhanced side-view and small target characteristics give it ashorter linear range than the Bently Nevada3300 XL-series 5 and 8 mm Transducer System.The 1.5 mm (60 mils) of linear range exceedsthe linear range of the 3000-series 190Transducer System.

Specification：

Frequently asked questions

Q1: What is the Bently Nevada 330904-00-23-10-02-05 used for?

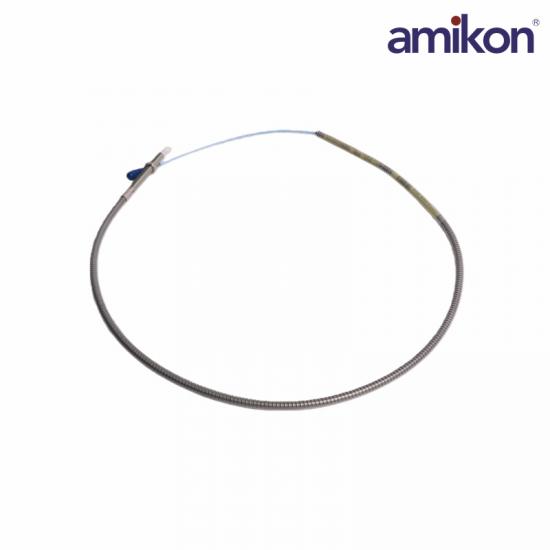

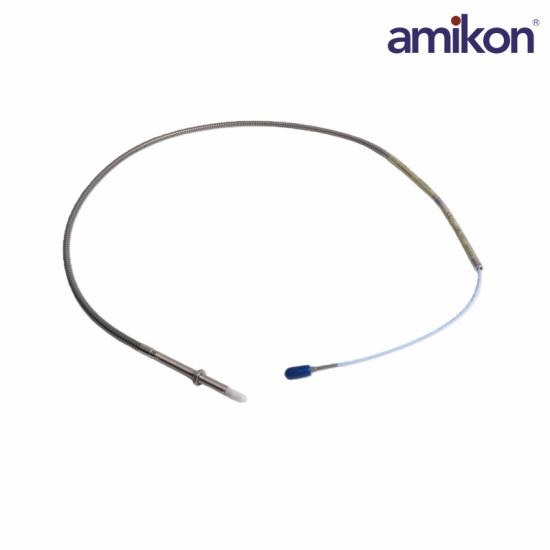

A1:The Bently Nevada 330904-00-23-10-02-05 is a 3300 XL NSv Proximity Probe used for non-contact measurement of shaft vibration, displacement, and position in rotating machinery.

Q2: What does Overall Case Length Code 23 indicate?

A2:The Code 23 option specifies an overall case length of 230 mm, providing additional reach for applications requiring a longer probe body.

Q3: What does Total Length Code 10 mean?

A3:The 330904-00-23-10-02-05 Code 10 option indicates a total length of 1.0 meter (39 inches), allowing flexible installation and cable routing.

Q4: What is the Incremental Scale Factor (ISF) of this 330904-00-23-10-02-05 probe?

A4:The 330904-00-23-10-02-05 probe has an Incremental Scale Factor (ISF) of 7.87 V/mm (200 mV/mil) with a tolerance of +12.5% / -20%.

Product Applications

Oil, petrochemical, and natural gas plants: process gas compressors, and closed-loop fluid bearing machinery operating in highly corrosive environments.

Chemical and fertilizer plants: vibration and displacement monitoring of various small and medium-sized high-speed turbines, pumps, and other critical moving equipment.

Power and energy plants: speed and axial displacement control of small steam turbines, water turbines, or high-speed auxiliary equipment.
