Description：

The 3300 XL NSv Proximity Transducer system is intended foruse with centrifugal air compressors, refrigerationcompressors, process gas compressors, and other machineswith tight installation requirements. The 3300 XL NSv ProximityTransducer System consists of:

a 3300 NSv probe

a 3300 NSv extension cable

a 3300 XL NSv Proximitor Sensor(1)

The primary uses for the 3300 XL NSv Transducer System arefor areas where counter bore, sideview, or rearviewrestrictions limit the use of standard Bently Nevada 3300 and3300 XL 5 and 8 mm Transducer Systems. It is also ideal forsmall target applications, such as measuring radial vibrationon shafts smaller than 51 mm (2 in) or axial position on flattargets smaller than 15 mm (0.6 in). It is primarily used in thefollowing applications on fluid-filmed bearing machineswhere a small shaft or reduced side-view is present:

Radial vibration and radial position measurements

Axial (thrust) position measurements

Tachometer and zero speed measurements

Phase reference (Keyphasor signals)

Specification：

Frequently asked questions

Q1: What is the Bently Nevada 330904-00-23-10-02-CN used for?

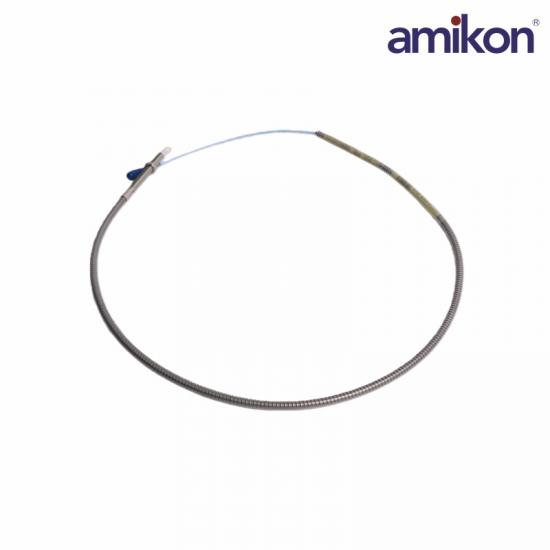

A1:The Bently Nevada 330904-00-23-10-02-CN is a 3300 NSv Proximity Probe used for non-contact measurement of shaft vibration, displacement, and position in rotating machinery.

Q2: What is the linear measurement range of this 330904-00-23-10-02-CN probe?

A2:The 330904-00-23-10-02-CN probe provides a linear measurement range of 0.25 to 1.75 mm (10 to 70 mils), allowing accurate monitoring of shaft movement within its calibrated operating range.

Q3: Why is the 330904-00-23-10-02-CN linear measurement range important?

A3:The 330904-00-23-10-02-CN linear measurement range defines the span over which the probe output remains proportional to target displacement, ensuring precise and repeatable measurements.

Q4: What is the frequency response range of the 330904-00-23-10-02-CN?

A4:The 330904-00-23-10-02-CN probe offers a frequency response range of 0 to 10 kHz, making it suitable for detecting both low-frequency and high-frequency shaft vibration signals.

Product Applications

Oil & Gas: Centrifugal natural gas compressors, reciprocating compressors, pipeline pumps.

Petrochemical & Refining: Large and medium-sized process gas compressors, high-pressure pumps, mixers, turbine drive units.

Power Generation: Small and medium-sized steam turbines, water turbines, industrial gas turbines, large feedwater pumps, forced draft and induced draft fans.

Air Separation & Industrial Gases: Centrifugal air compressors (air separation units), expanders.
