The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). It is primarily used in the following applications on fluid-filmed bearing machines where a small shaft or reduced side-view is present:

Radial vibration and radial position measurements

Axial (thrust) position measurements

Tachometer and zero speed measurements

Phase reference (Keyphasor signals)

Frequently Asked Questions

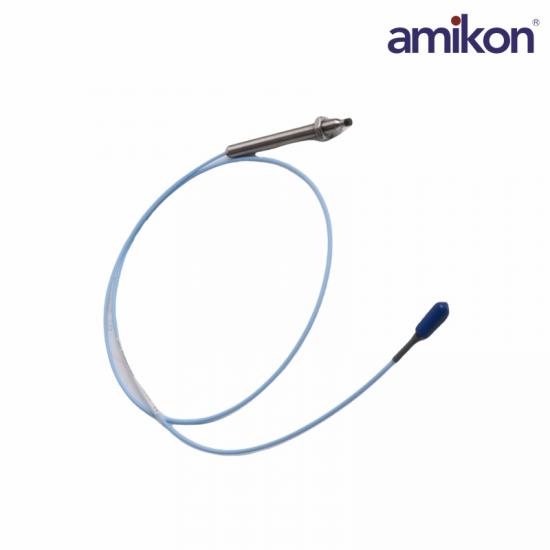

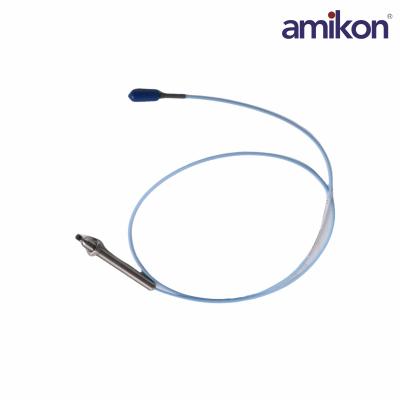

1. What is the overall case length of the Bently Nevada 330905-00-13-10-02-00?

This 330905-00-13-10-02-00 model features Overall Case Length Option 13, corresponding to an overall case length of 130 mm, making it suitable for a variety of industrial machinery monitoring installations.

2. What is the 330905-00-13-10-02-00 total probe length?

The 330905-00-13-10-02-00 probe uses Total Length Option 10, providing a total probe length of 1.0 meter (39 inches) for standard installation requirements.

3. What power supply does this proximity probe require?

The 330905-00-13-10-02-00 requires a DC power supply ranging from -17.5 VDC to -26 VDC for proper operation with compatible proximity monitoring systems.

4. Why is the -17.5 VDC to -26 VDC supply range important?

The -17.5 VDC to -26 VDC operating range ensures stable sensor performance and reliable signal output when connected to approved Bently Nevada transducer systems.

Product Applications

Air and Refrigeration Compressor Plants: Widely used in centrifugal air compressors, screw refrigeration compressors, and other equipment where internal installation space is extremely limited, with restricted side or rear clearance.

Oil and Gas Chemical Plants: Used inside the bearing housings of various process gas compressors and high-temperature, high-pressure pumps to measure radial vibration and axial displacement of sliding bearings, preventing major safety accidents caused by bearing wear.

Small Rotary Machinery Processing Plants: Specifically designed for precision measurements of small shaft diameters (less than 51 mm/2 inches) or small target surfaces (less than 15 mm). Large probes may cause measurement inaccuracies on such small shaft diameters due to magnetic field edge effects.

Power Generation and Power Plants: Used in conjunction with a preamplifier as a speed sensor or keyphasor to achieve zero-speed monitoring and phase difference calculation of steam turbines, industrial gas turbines, or electric motors.
