Description：

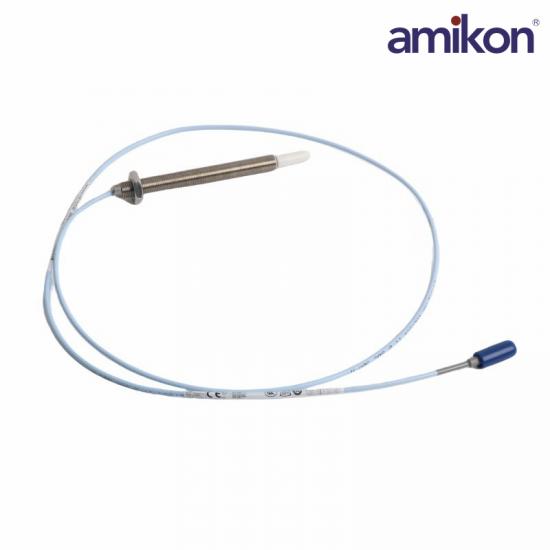

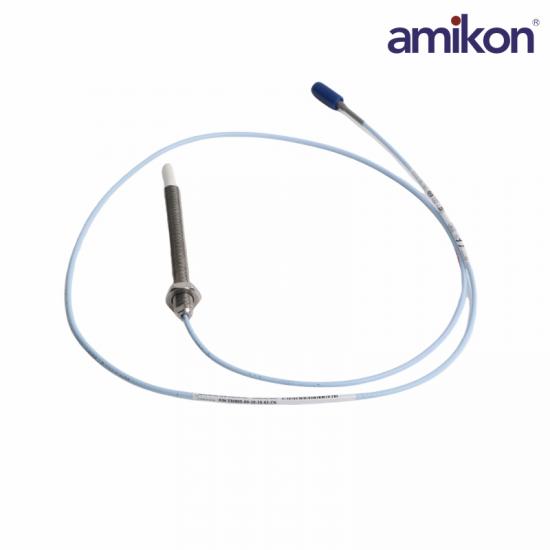

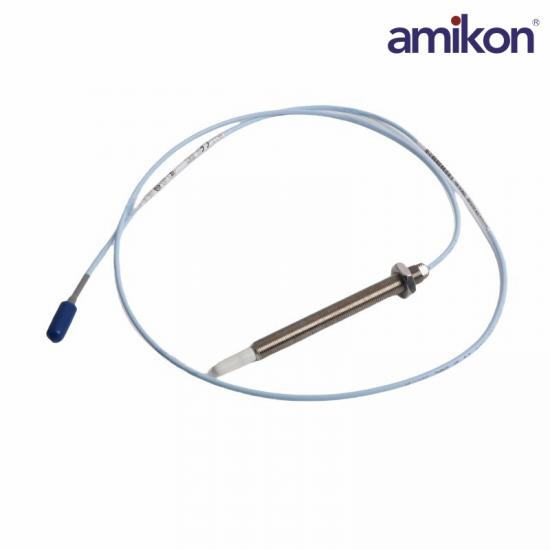

The 3300 NSv probe comes in varying probecase configurations, including armored andunarmored 1/4-28, 3/8-24, M8x1 and M10x1probe threads. The reverse mount 3300 NSvprobe comes standard with either 3/8-24 orMl0xl threads. All components of thetransducer system have gold-plated brass ClickLoc connectors. ClickLoc connectors lockinto place and prevent the connection fromloosening. The patented TipLoc moldingmethod provides a robust bond between theprobe tip and the probe body. Bently Nevada's patented Cableloc design provides 220 N (50Ib) of pull strength and securely attaches theprobe cable to the probe tip. Connectorprotectors are recom mended for use on theprobe-to-extension cable connection, as wellas on the cable-to-Proximitor Sensorconnection. Connector protectors prevent mostliquids from entering into the ClickLocconnectors and adversely affecting theelectrical signal(2).

Notes:

(1) Proximitor Sensors are supplied by defaultfrom the factory calibrated to AlsI 4140 steel.Calibration to other target materials is available upon request.

(2) Silicone tape is also provided with each3300 NSv extension cable and can be usedinstead of connector protectors. Silicone tape isnot recommended in applications where theprobe-to-extension cable connection will be exposed to turbine oil.

Specification：

Frequently asked questions

Q1: What is the Bently Nevada 330905-00-20-10-02-CN used for?

A1:The Bently Nevada 330905-00-20-10-02-CN is a 3300 NSv Proximity Probe used for non-contact measurement of shaft vibration, displacement, and position in rotating machinery.

Q2: What is the 330905-00-20-10-02-CN recommended gap setting for this probe?

A2:The 330905-00-20-10-02-CN recommended gap setting is 1.0 mm (40 mils). Maintaining this gap helps ensure accurate and stable measurement performance.

Q3: Why is the 330905-00-20-10-02-CN recommended gap setting important?

A3:The 330905-00-20-10-02-CN recommended gap allows the probe to operate within its calibrated range, ensuring reliable vibration and displacement measurements while maximizing system accuracy.

Q4: What is the output resistance of the 330905-00-20-10-02-CN probe?

A4:The 330905-00-20-10-02-CN probe has an output resistance of 50 Ω, which helps maintain signal integrity and reliable communication with monitoring equipment.

Product Applications

Oil & Gas: Primarily used to monitor rotor vibration in centrifugal air compressors, refrigeration compressors, and process gas compressors, preventing potential major shutdowns.

Petrochemicals: Used for long-term monitoring of bearing wear and vibration displacement in various high-speed turbine machinery and pumps under high temperatures (up to +177°C) and complex chemical environments.

Power Generation: Widely used in power plants for condition monitoring of small and medium-sized steam turbines, generators, fans, and auxiliary equipment, providing core data for preventative maintenance.
