Description：

The primary uses for the 3300 XL NSv Transducer System arefor areas where counter bore, sideview, or rearviewrestrictions limit the use of standard Bently Nevada 3300 and3300 XL 5 and 8 mm Transducer Systems. It is also ideal forsmall target applications, such as measuring radial vibrationon shafts smaller than 51 mm (2 in) or axial position on flattargets smaller than 15 mm (0.6 in). It is primarily used in thefollowing applications on fluid-filmed bearing machineswhere a small shaft or reduced side-view is present:

Radial vibration and radial position measurements

Axial (thrust) position measurements

Tachometer and zero speed measurements

Phase reference (Keyphasor signals)

Specification：

Frequently asked questions

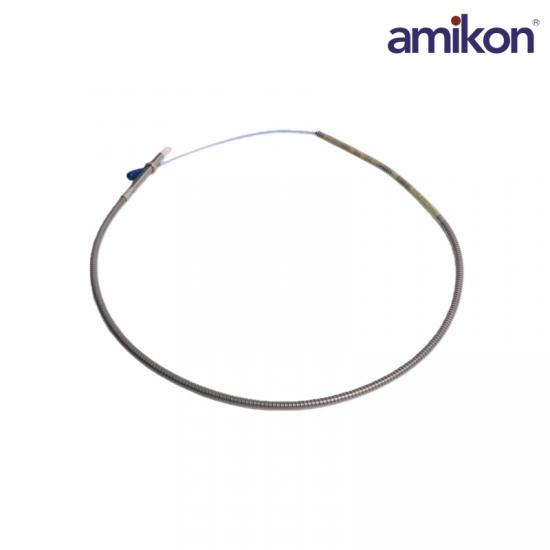

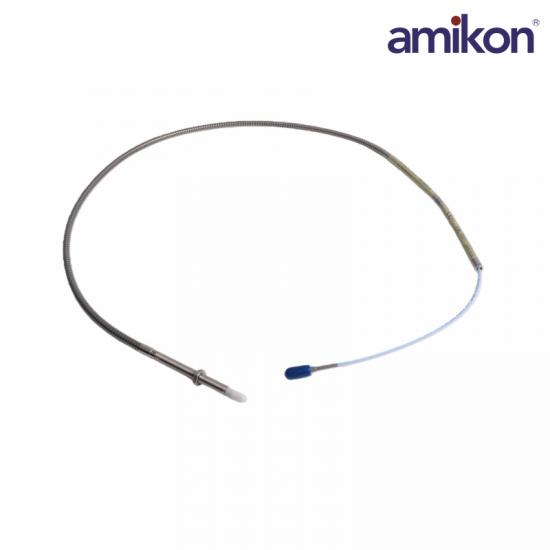

Q1: What is the Bently Nevada 330904-00-24-10-02-CN used for?

A1:The Bently Nevada 330904-00-24-10-02-CN is a 3300 NSv Proximity Probe used for non-contact measurement of shaft vibration, displacement, and position in rotating machinery.

Q2: What is the 330904-00-24-10-02-CN linear measurement range of this probe?

A2:The 330904-00-24-10-02-CN probe provides a linear measurement range of 0.76 mm (30 mils), enabling accurate monitoring of shaft movement within its calibrated operating range.

Q3: Why is the 330904-00-24-10-02-CN linear measurement range important?

A3:The 330904-00-24-10-02-CN linear measurement range defines the span over which the probe delivers a proportional and accurate output signal, ensuring reliable vibration and displacement measurements.

Q4: What is the standard sensitivity of the 330904-00-24-10-02-CN probe?

A4:The 330904-00-24-10-02-CN standard sensitivity is 7.87 V/mm (200 mV/mil), allowing the probe to accurately convert shaft displacement into an electrical signal for monitoring and analysis.

Product Applications

Power Industry (Power Plants): Small and medium-sized steam turbines, gas turbines, feedwater pumps, blowers, wind turbine gearboxes.

Petrochemical and Natural Gas (Refineries, Hydrogen Refueling Stations, Gas Transmission Stations): Large centrifugal compressors, reciprocating compressors, high-pressure pumps.

Metallurgy and Heavy Industry (Steel Plants, Cement Plants): Large blast furnace blowers, exhaust fans, heavy-duty gearboxes.
