Description：

The primary uses for the 3300 XL NSv Transducer System arefor areas where counter bore, sideview, or rearviewrestrictions limit the use of standard Bently Nevada 3300 and3300 XL 5 and 8 mm Transducer Systems. It is also ideal forsmall target applications, such as measuring radial vibrationon shafts smaller than 51 mm (2 in) or axial position on flattargets smaller than 15 mm (0.6 in). It is primarily used in thefollowing applications on fluid-filmed bearing machineswhere a small shaft or reduced side-view is present:

Radial vibration and radial position measurements

Axial (thrust) position measurements

Tachometer and zero speed measurements

Phase reference (Keyphasor signals)

The 3300 XL NSv Transducer System has anAverage Scale Factor of 7.87 V/mm (200mV/mil), which is the most common output foreddy current transducers. Its enhanced side-view and small target characteristics give it ashorter linear range than the Bently Nevada3300 XL-series 5 and 8 mm Transducer System.The 1.5 mm (60 mils) of linear range exceedsthe linear range of the 3000-series 190Transducer System.

Specification：

Frequently asked questions

Q1: What is the Bently Nevada 330905-00-25-10-02-05 used for?

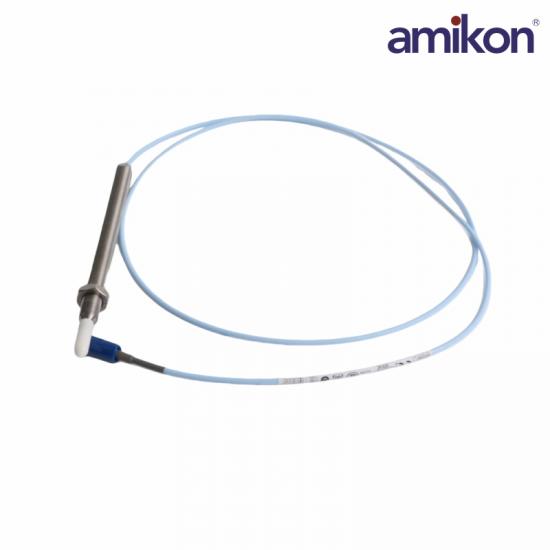

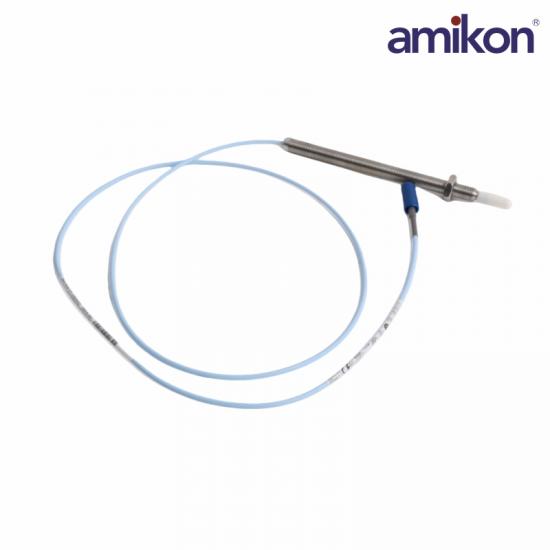

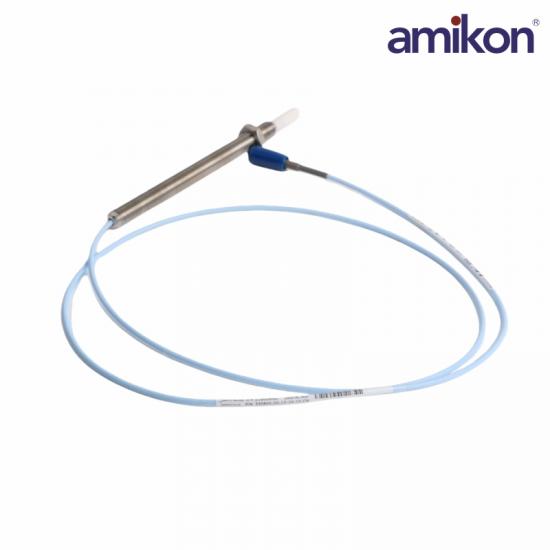

A1:The Bently Nevada 330905-00-25-10-02-05 is a 3300 NSv Proximity Probe used for non-contact measurement of shaft vibration, displacement, and position in rotating machinery.

Q3: What is the 330905-00-25-10-02-05 measurement range of this proximity probe?

A3:The 330905-00-25-10-02-05 probe offers a measurement range of 0.25 mm to 1.75 mm (10 to 70 mils), enabling precise monitoring of shaft movement and displacement.

Q4: What is the measurement accuracy of the 330905-00-25-10-02-05 probe?

A4:The 330905-00-25-10-02-05 probe provides an accuracy of ±0.06 mm (±2.3 mils), ensuring reliable and repeatable measurements for critical machinery monitoring applications.

Q5: What output signal does the 330905-00-25-10-02-05 probe provide?

A5:The 330905-00-25-10-02-05 probe delivers an output signal of -1 VDC to -13 VDC, which is compatible with Bently Nevada monitoring and protection systems.

Product Applications

Oil and gas refineries: Monitoring high-speed compressors, pumps, and turbine drives. Due to the high explosion risk in these locations, -05 explosion-proof certification is a mandatory requirement for these plants.

Coal and hydroelectric power plants: Monitoring auxiliary equipment, small and medium-sized steam turbines, and small generator sets.

Large chemical plants and manufacturing plants: Monitoring the rotary transmission chains of critical processes to prevent significant material waste losses due to unplanned downtime.
