Brand/Manufature:
Bently NevadaProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
CooClaim Your Exclusive Savings – Get in Touch with Sales Manager Lisa Lin Now
: +86-18965423501
: sales7@amikon.cn
:AMKPLC
|
Model |
330905-00-25-05-01-00 |
|
Unthreaded Length (00) |
0 mm |
|
Overall Case Length (25) |
250 mm |
|
Total Length (05) |
0.5 meter (20 in) |
|
Connector & Cable-Type (01) |
Miniature coaxial ClickLoc connector with connector protector, standard cable |
|
Agency Approval (00) |
Not required |
|
Operating Temperature Range |
-40 °C to +120 °C |
|
Vibration Resistance |
10 g peak (10-2000 Hz) |
|
Ingress Protection Rating |
IP67 certified |
|
Sensitivity |
4.0 mV/μm ±3% at 25 °C |
|
Frequency Response |
0-10 kHz (±1 dB) |
|
Linear Range |
±2 mm from electrical null |
|
Output Impedance |
50 Ω nominal |
The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in).It is primarily used in the following applications on fluid-filmed bearing machines where a small shaft or reduced side-view is present:
Radial vibration and radial position measurements
Axial (thrust) position measurements
Tachometer and zero speed measurements
Phase reference (Keyphasor signals)
Frequently Asked Questions

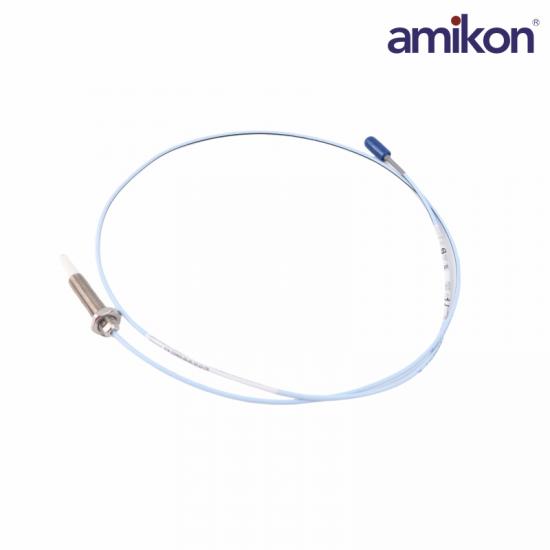

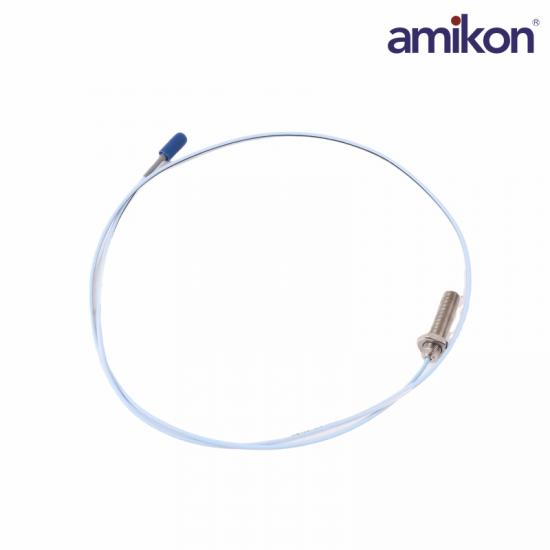

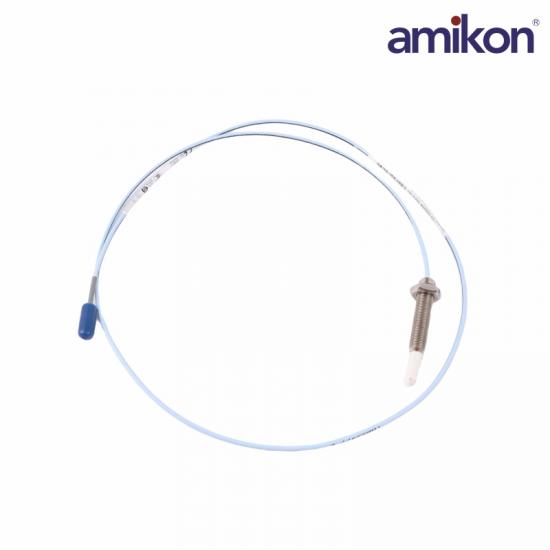

Q1: What is the Bently Nevada 330905-00-25-05-01-00 Proximity Probe?
A1: It is a proximity probe designed for non-contact shaft vibration and displacement monitoring in rotating machinery applications.
Q2: What is the 330905-00-25-05-01-00 overall case length of this probe?
A2: The 330905-00-25-05-01-00 overall case length option “25” corresponds to 250 mm.
Q3: What is the 330905-00-25-05-01-00 total probe length?
A3: The 330905-00-25-05-01-00 total length option “05” indicates a probe length of 0.5 meter (20 inches).
Q4: What is the 330905-00-25-05-01-00 output impedance of this probe?
A4: The 330905-00-25-05-01-00 output impedance is 50 Ω nominal.
Q5: What is the 330905-00-25-05-01-00 operating temperature range?
A5: The 330905-00-25-05-01-00 operating temperature range is -40°C to +120°C.
Product Applications
Oil and Gas (O&G): Used for vibration and position measurement in centrifugal compressors, large pumps and drives.
Power Generation: Applied to shaft displacement and speed monitoring of power generators, steam turbines and gas turbines.
Petrochemical/Chemical: For precise measurement and control in flammable and explosive, high-pressure or harsh environments.
Heavy Machinery Manufacturing: Vibration testing of high-speed precision bearings.
Service: 24/7,Professional team always here to support you.
Warranty:12 month
Delivery time: Shipped in 3 days after payment.
Payment Term: T/T
100% full New! - Original Factory Seal !
We have DHL,UPS,TNT ，customers can also use their own freight forwarders.
Package: Original packing with cartons.
Delivery time: Shipped in 3 days after payment.
Strict packaging to ensure safe arrival at destination.
