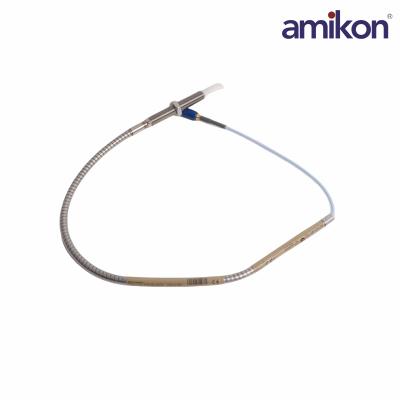

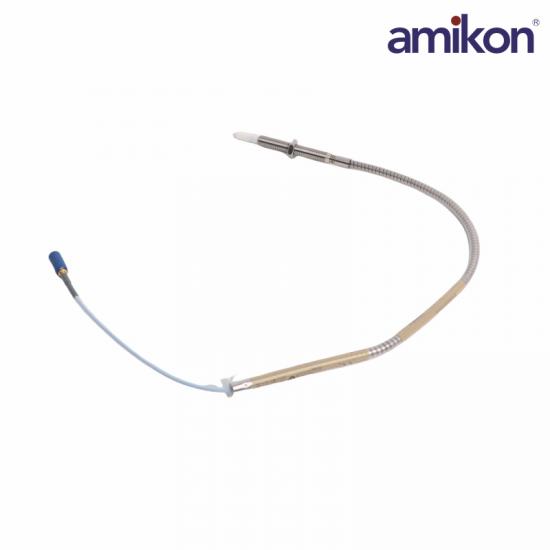

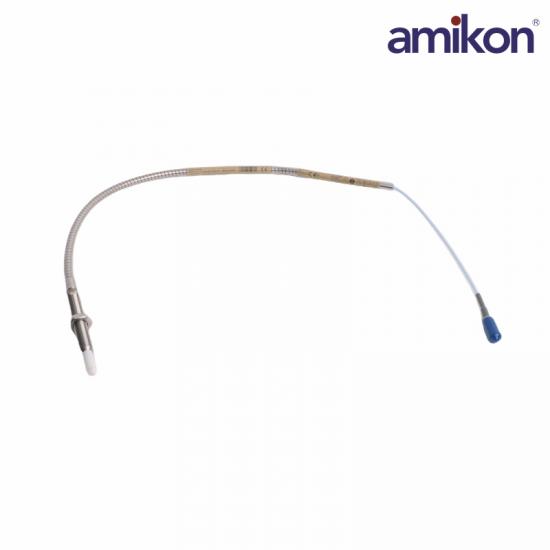

The 330910-00-02-05-01-00 is a 3300 XL NSv (Narrow Side View) Proximity Probe from Bently Nevada, designed for measuring radial vibration and axial position on small shafts or where space is limited, such as in centrifugal air compressors and process gas machines. It is part of the 3300 NSv transducer system.

The primary uses for the 3300 XL NSv Transducer System arefor areas where counter bore, sideview, or rearviewrestrictions limit the use of standard Bently Nevada 3300 and3300 XL 5 and 8 mm Transducer Systems. It is also ideal forsmall target applications, such as measuring radial vibrationon shafts smaller than 51 mm (2 in) or axial position on flattargets smaller than 15 mm (0.6 in). It is primarily used in thefollowing applications on fluid-filmed bearing machineswhere a small shaft or reduced side-view is present:

Radial vibration and radial position measurements

Axial (thrust) position measurements

Tachometer and zero speed measurements

Phase reference (Keyphasor signals)

Frequently Asked Questions

Q1: What is the Bently Nevada 330910-00-02-05-01-00 Proximity Probe?

A1: It is a 3300 XL NSv proximity probe designed for non-contact shaft vibration and displacement monitoring in rotating machinery applications.

Q2: What does the 330910-00-02-05-01-00 unthreaded length option “00” indicate?

A2: The “00” option specifies an unthreaded length of 0.0 mm.

Q3: What is the 330910-00-02-05-01-00 overall case length of this probe?

A3: The 330910-00-02-05-01-00 overall case length option “02” corresponds to 20 mm.

Q4: What is the 330910-00-02-05-01-00 total probe length?

A4: The 330910-00-02-05-01-00 total length option “05” indicates a probe length of 0.5 meter (20 inches).

Q5: What is the 330910-00-02-05-01-00 main function of this proximity probe?

A5: Its main function is to provide accurate non-contact measurement of shaft vibration and displacement in rotating equipment.

Product Applications

Oil & Gas: Used for monitoring vibrations in compressors, turbines, and pumps.

Power Generation: Used for monitoring shaft displacement and vibration in high-speed rotating machinery such as generator sets and wind turbines.

Industrial Manufacturing and Process Industries: Suitable for rotating equipment in space-constrained environments where extremely high monitoring accuracy is required.
