The 3300 XL NSv Transducer System design allows it to replace both the 3300RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System. Upgrades from the 3300 RAM system to the 3300 XL NSv system mayuse the existing probe, extension cable, and monitoring system with 3300 XL NSvProximitor Sensor. Upgrades from the 3000-series or 7000-series TransducerSystem must replace the probe, extension cable and Proximitor Sensor with NSvcomponents.

The 3300 XL NSv Transducer System has an Average Scale Factor of 7.87 V/mm(200 mV/mill, which is the most common output for eddy current transducers. Itsenhanced side-view and small target characteristics give it a shorter linearrange than the Bently Nevada 3300 XL-series 5 and 8 mm Transducer System.With The 1.5 mm (60 mils) of linear range exceeds the linear range of the 3000-

series 190 Transducer System.

Frequently Asked Questions

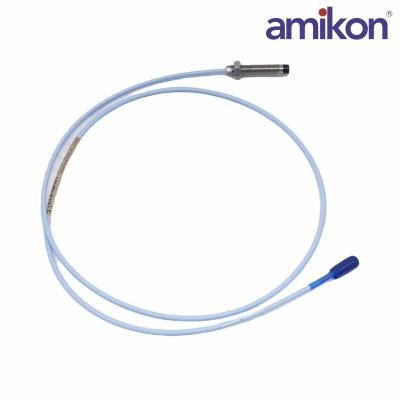

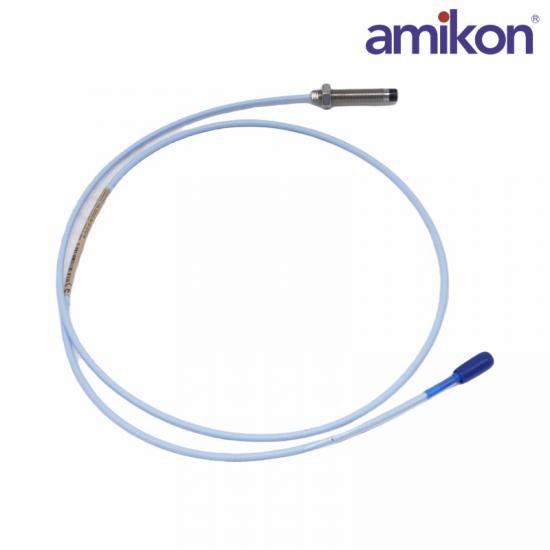

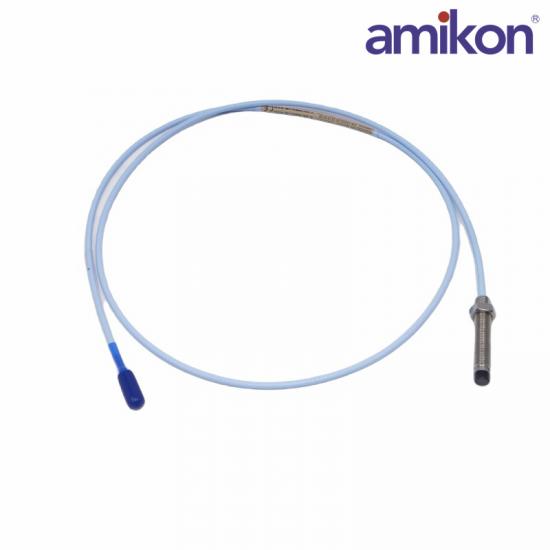

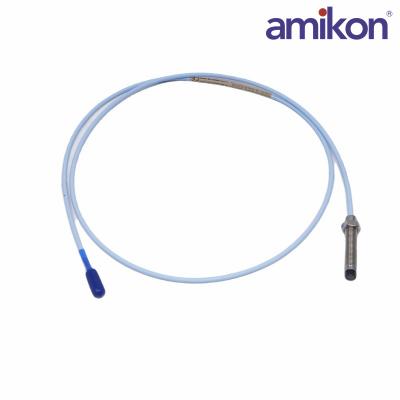

Q : What exactly is the Bently Nevada 330906-02-12-05-02-00?

A: It is a 3300 NSv series reverse-mount proximity probe. It uses eddy current technology for non-contact displacement and vibration measurements on rotating machinery.

Q : What does "NSv" stand for in this series?

A: "NSv" stands for Narrow Side View. This means the probe's magnetic field is tightly focused to prevent interference from surrounding metal walls in tight spaces.

Q : What thread specification does this specific model use?

A: The 330906-02-12 prefix denotes a standard 3/8-24 UNF thread configuration

Q : What is the operating temperature range for this probe?

A: The probe tip and cable are rated for temperatures ranging from -35 °C to +177 °C (-31 °F to +350 °F).

Product Applications

Power plants: Used for monitoring shaft vibration, shaft displacement, and speed in large steam turbines, water turbines, and generator sets.

Oil and gas chemical plants: Widely installed on critical rotating machinery such as compressors, centrifugal pumps, fans, and blowers.

Steel and metallurgical plants: Used for preventative maintenance of heavy-duty equipment such as blast furnace blowers and large rolling mills.

Cement and mining plants: Monitor the bearing operating status of large mills and rotary kilns in production lines.
