Manufacturer: Bently Nevada
Product Number :330910-00-04-10-02-00
Product Type: Transducer System
Extension Cable DC Resistance:
Center Conductor: 0.220 Ω/m (0.067 Ω/ft)
Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical
Output Resistance: 50 Ω
Recommended Gap Setting: 1.0 mm (40 mils)
Extension Cable Weight: 45 g/m (0.5 oz/ft)
Armored Extension Cable Weight: 64 g/m (0.7 oz/ft)
Proximitor Sensor Weight: 255 g (9 oz)
Operating and Storage Temperature: -52°C to +177°C (-62°F to +351°F)

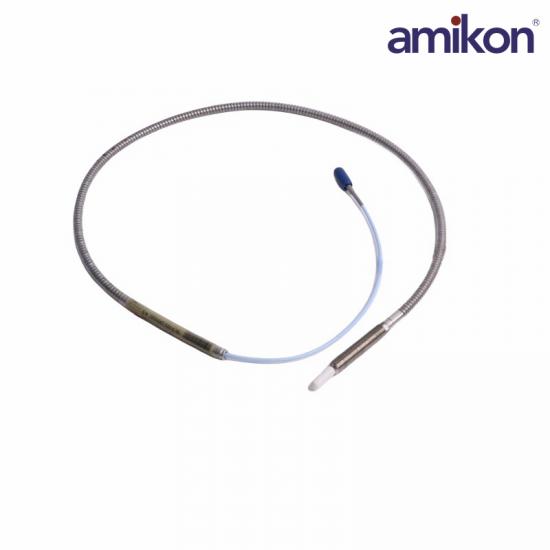

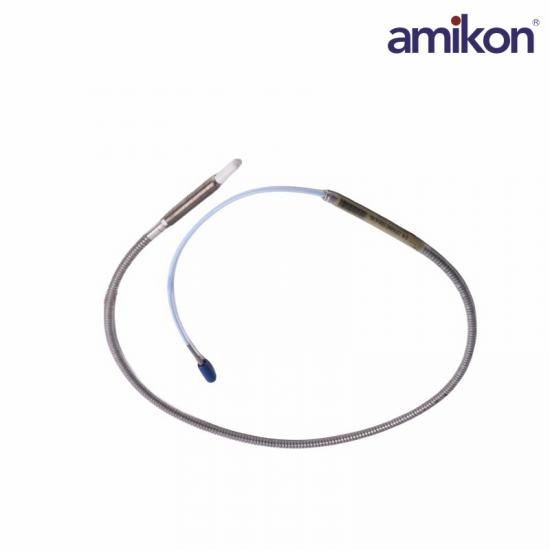

The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. The 3300 XL NSv Proximity Transducer System consists of:
a 3300 NSv probe
a 3300 NSv extension cable
a 3300 XL NSv Proximitor Sensor(1)
The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). It is primarily used in the following applications on fluid-filmed bearing machines where a small shaft or reduced side-view is present:
Radial vibration and radial position measurements
Axial (thrust) position measurements
Tachometer and zero speed measurements
Phase reference (Keyphasor signals)
Frequently Asked Questions
Q1: What is the Bently Nevada 330910-00-04-10-02-00 Transducer System used for?
A: The 330910-00-04-10-02-00 is a proximity transducer system used for non-contact measurement of shaft vibration, shaft position, and displacement in rotating machinery such as turbines, compressors, motors, and generators.
Q2: What is the extension cable capacitance of the 330910-00-04-10-02-00?
A: The 330910-00-04-10-02-00 extension cable has a typical capacitance of 69.9 pF/m (21.3 pF/ft), which helps maintain accurate signal transmission between the probe and the Proximitor sensor.
Q3: What is the output resistance of the 330910-00-04-10-02-00 transducer system?
A: The 330910-00-04-10-02-00 system provides an output resistance of 50 Ω, supporting stable signal transmission and reliable integration with monitoring equipment.
Q4: Why is a 50 Ω output resistance beneficial?
A: A 50 Ω output resistance helps minimize signal reflections, improves measurement accuracy, and ensures compatibility with vibration monitoring and machinery protection systems.
Product Applications
Oil & Gas: Process gas compressors with fluid diaphragm bearings, centrifugal compressors, micro gas turbines, and small to medium-sized pump sets.
Petrochemical & Refining: High-speed light-load turbines, high-speed fans, and screw compressors.
Air Separation & Industrial Gases: Centrifugal air compressors (such as single-shaft or large multi-stage units), expanders.
Power Generation: Small to medium-sized steam turbines, generator exciters, and auxiliary pumps (such as feedwater pumps and circulating water pumps).
