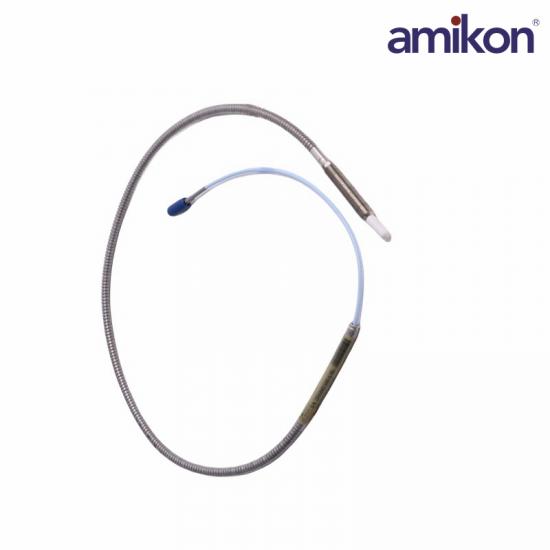

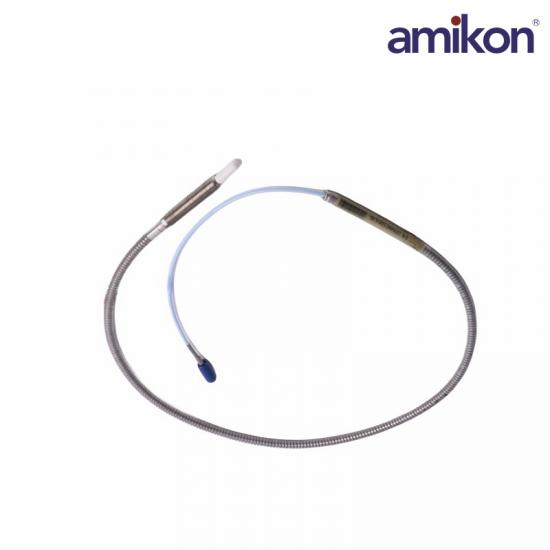

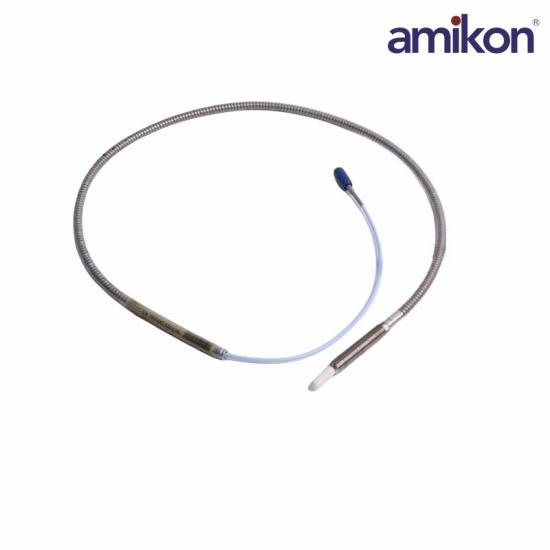

Manufacturer: Bently Nevada

Product Number :330910-00-06-10-02-00

Product Type:Sensor Proximity Probe Cable

Extension Cable DC Resistance:

Center Conductor: 0.220 Ω/m (0.067 Ω/ft)

Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical

Output Resistance: 50 Ω

Recommended Gap Setting: 1.0 mm (40 mils)

Probe: Approximately 14 to 150 g (0.5 to 5.3 oz)

Extension Cable: 45 g/m (0.5 oz/ft)

Armored Extension Cable: 64 g/m (0.7 oz/ft)

Proximitor Sensor: 255 g (9 oz)

The 3300 XL NSv Proximitor Sensor has similar features to those found in the 3300 XL 8 mm Proximitor Sensor. Its thin design allows the user to mount it in either a high-density DIN-rail installation or a more traditional panel mount configuration. Improved RFI/EMI immunity allows the 3300 XL NSv Proximitor Sensor to achieve European CE mark approvals without any special mounting considerations. This RFI immunity also prevents nearby high frequency radio signals from adversely affecting the transducer system. SpringLoc terminal strips on the Proximitor Sensor require no special installation tools and facilitate faster, highly robust field wiring connections.

The 3300 NSv probe and extension cable are mechanically and electrically compatible and interchangeable with Bently Nevada’s previous 3300 RAM proximity probe and extension cable. The NSv probe has increased chemical resistance compared to the 3300 RAM probe, which allows its use in many process compressor applications. The side-view characteristics of the 3300 NSv probe are also superior to those of the 3000-series 190 probe when gapping the 3300 NSv probe at the same distance from the probe target.

Frequently Asked Questions

Q1: What is the Bently Nevada 330910-00-06-10-02-00 used for?

A: The 330910-00-06-10-02-00 is a proximity probe cable assembly used in Bently Nevada proximity transducer systems for monitoring shaft vibration, shaft position, and displacement in rotating machinery.

Q2: What does the "-06" option indicate in the 330910-00-06-10-02-00 model number?

A: The -06 option specifies an overall case length of 60 mm, making the probe suitable for installations with specific mounting depth requirements.

Q3: What does the "-10" option represent?

A: The -10 option indicates a total cable length of 1.0 meter (3.3 feet), providing flexibility for connecting the probe to the associated monitoring system.

Q4: What is the output resistance of the 330910-00-06-10-02-00?

A: The 330910-00-06-10-02-00 proximity probe system has an output resistance of 50 Ω, ensuring stable signal transmission and compatibility with Bently Nevada monitoring equipment.

Product Applications

Oil, Gas and Petrochemicals: Protects critical process gas compressors, centrifugal air compressors, and small industrial pumps in refineries and offshore oil platforms.

Power Generation and Energy: Monitors the shaft movement and condition of small and medium-sized steam turbines or generators.

General Industrial Equipment: Monitors non-critical equipment such as refrigeration compressors, fans, and motors for general purposes.
