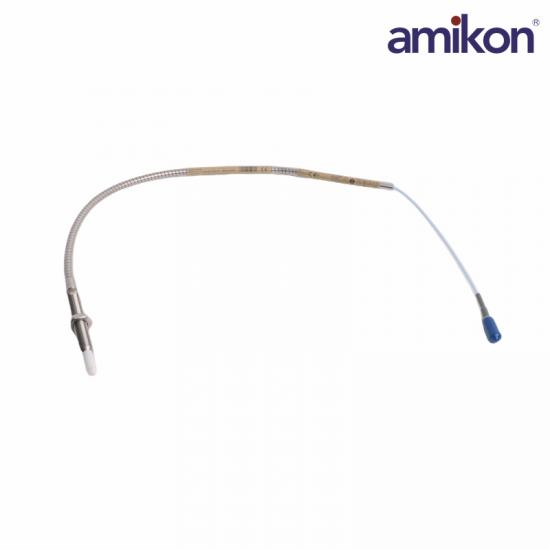

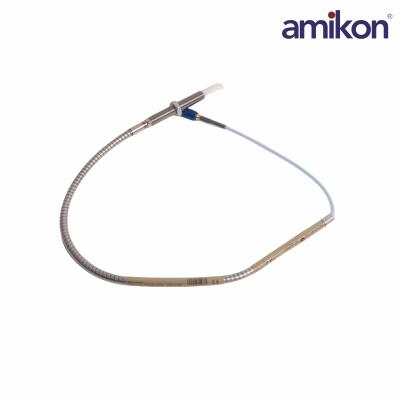

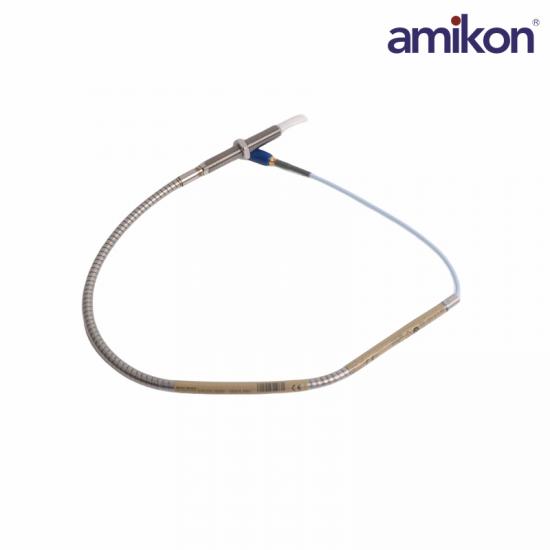

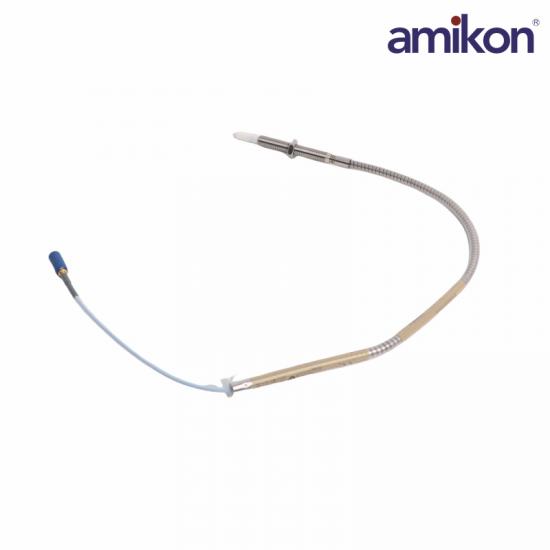

Manufacturer : Bently Nevada

Product Number:330910-00-07-05-02-CN

Product Type :Proximity Probes

Output Resistance：50 Ω

Extension Cable DC Resistance：

Center Conductor: 0.220 Ω/m (0.067 Ω/ft)

Proximitor Sensor Material：A380 aluminum

Recommended Torque：Finger tight

Maximum Torque：0.56 N•m (5 in•lb)

Probe Tip Material：Polyphenylene sulfide (PPS)

Probe Case Material：AISI 304 stainless steel (SST)

The 3300 NSv probe and extension cable are mechanically and electrically compatible and interchangeable with Bently Nevada’s previous 3300 RAM proximity probe and extension cable. The NSv probe offers improved chemical resistance compared to the 3300 RAM probe, making it suitable for a wider range of process compressor applications. Additionally, the side-view characteristics of the 3300 NSv probe are superior to those of the 3000-series 190 probe when gapped at the same distance from the probe target.

Frequently Asked Questions

Q1: What is the 330910-00-07-05-02-CN used for?

A: This 3300 NSv proximity probe is used for vibration and displacement monitoring in rotating machinery such as motors, pumps, and compressors.

Q2: What connector type does this 330910-00-07-05-02-CN model use?

A: The -02 option indicates a miniature coaxial ClickLoc connector with a standard cable.

Q3: What does the “CN” option represent?

A: The CN option signifies China-specific approvals, ensuring compliance with local certification standards.

Q4: What is meant by “standard mount”?

A: It refers to a standard installation configuration without special mounting modifications.

Q5: What applications is this 330910-00-07-05-02-CN probe suitable for?

A: It is ideal for industrial machinery monitoring, including shaft vibration, position, and clearance measurement.

Product Applications

Electric power industry: Mainly used for large and medium-sized steam turbines (power plant turbines), for measuring the thermal expansion difference between the rotor and the casing.

Petroleum and chemical industry: Used for various large and medium-sized compressors and turbine units.

Steel and metallurgy: Used for high-temperature, large-scale rotating machinery equipment.

Cement and glass: Protection for industrial rotating equipment.
