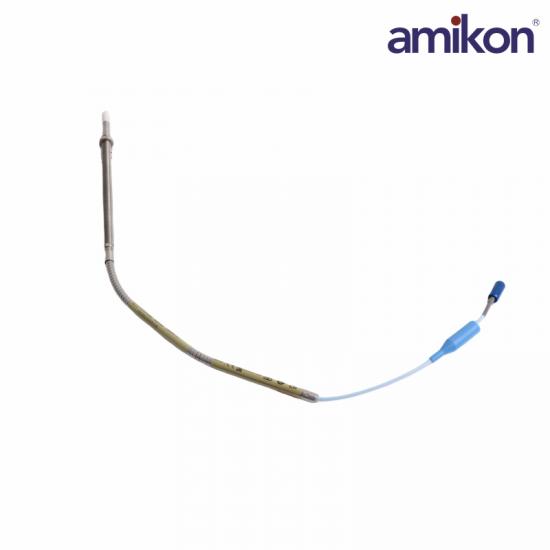

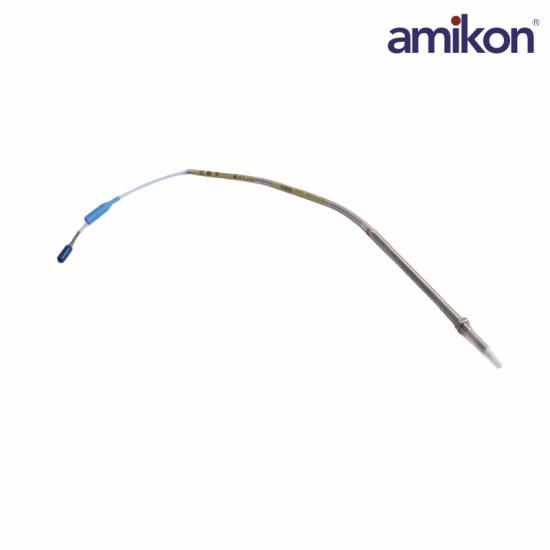

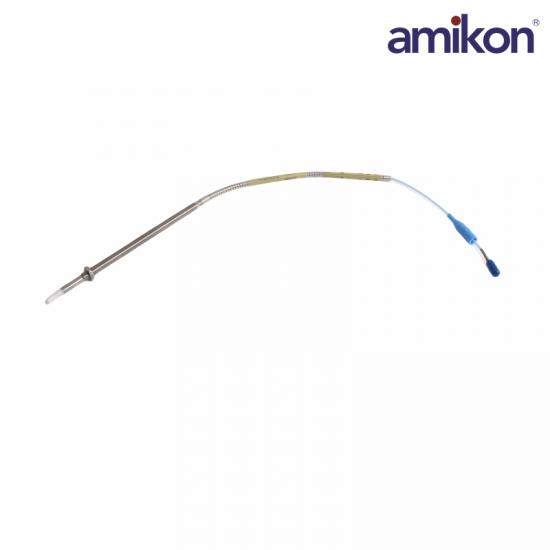

Manufacturer : Bently Nevada

Product Number:330910-00-24-05-02-05

Product Type :Proximity Probes

Output Resistance：50 Ω

Extension Cable DC Resistance：

Center Conductor: 0.220 Ω/m (0.067 Ω/ft)

Proximitor Sensor Material：A380 aluminum

Recommended Torque：Finger tight

Maximum Torque：0.56 N•m (5 in•lb)

The 3300 NSv probe comes in varying probe case configurations, including armored and unarmored 1/4-28, 3⁄8-24, M8x1, and M10x1 probe threads. The reverse mount 3300 NSv probe comes standard with either 3⁄8-24 or M10x1 threads. All components of the transducer system feature gold-plated brass ClickLoc connectors. ClickLoc connectors lock into place to prevent loosening during operation.The patented TipLoc molding method ensures a robust bond between the probe tip and the probe body. Bently Nevada’s patented CableLoc design provides 220 N (50 lb) of pull strength, securely attaching the probe cable to the probe tip.Connector protectors are recommended for use at both the probe-to-extension cable connection and the cable-to-Proximitor Sensor connection. These protectors help prevent most liquids from entering the ClickLoc connectors and adversely affecting the electrical signal.

Notes:

(1) Proximitor Sensors are supplied by default from the factory calibrated to AISI 4140 steel. Calibration to other target materials is available upon request.

(2) Silicone tape is also provided with each 3300 NSv extension cable and may be used instead of connector protectors. However, silicone tape is not recommended for applications where the probe-to-extension cable connection will be exposed to turbine oil.
