The 3300 NSv probe comes in varying probe case configurations, including armored and unarmored 1/4-28, 3⁄8-24, M8x1, and M10x1 probe threads. The reverse mount 3300 NSv probe comes standard with either 3⁄8-24 or M10x1 threads. All components of the transducer system feature gold-plated brass ClickLoc connectors. ClickLoc connectors lock into place to prevent loosening during operation.The patented TipLoc molding method ensures a robust bond between the probe tip and the probe body. Bently Nevada’s patented CableLoc design provides 220 N (50 lb) of pull strength, securely attaching the probe cable to the probe tip.Connector protectors are recommended for use at both the probe-to-extension cable connection and the cable-to-Proximitor Sensor connection. These protectors help prevent most liquids from entering the ClickLoc connectors and adversely affecting the electrical signal.

Notes:

(1) Proximitor Sensors are supplied by default from the factory calibrated to AISI 4140 steel. Calibration to other target materials is available upon request.

(2) Silicone tape is also provided with each 3300 NSv extension cable and may be used instead of connector protectors. However, silicone tape is not recommended for applications where the probe-to-extension cable connection will be exposed to turbine oil.

Frequently Asked Questions

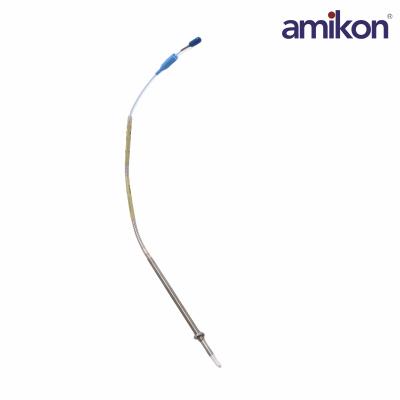

Q1: What is the 330910-00-24-05-02-CN used for?

A: This 3300 NSv proximity probe is used for vibration, displacement, and shaft position monitoring in rotating machinery such as motors, pumps, and compressors.

Q2: What connector type does this probe use?

A: The -02 option indicates a miniature coaxial ClickLoc connector with a standard cable.

Q3: What does the “CN” approval option mean?

A: The CN option represents country-specific regulatory approval (China), ensuring compliance with local standards.

Q4: What applications is this probe best suited for?

A: It is ideal for deep or recessed installations and applications requiring long cable routing, such as turbines, compressors, and large industrial equipment.

Product Applications

Electric power industry: Monitoring the shaft vibration, shaft displacement and rotational speed of steam turbines, gas turbines, water turbines and generators.

Petroleum and natural gas: Used for asset protection and condition monitoring of centrifugal compressors, reciprocating compressors, pumps and expanders.

Chemical and refining: Monitoring the operational stability of key large-scale pumps, fans and agitators to prevent unexpected shutdowns.

Heavy industry (steel, mining): Conducting vibration analysis on heavy rotating equipment such as large mills and tundish tilting mechanisms.
