Brand/Manufature:
Bently NevadaProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
CooBrand: Bently Nevada

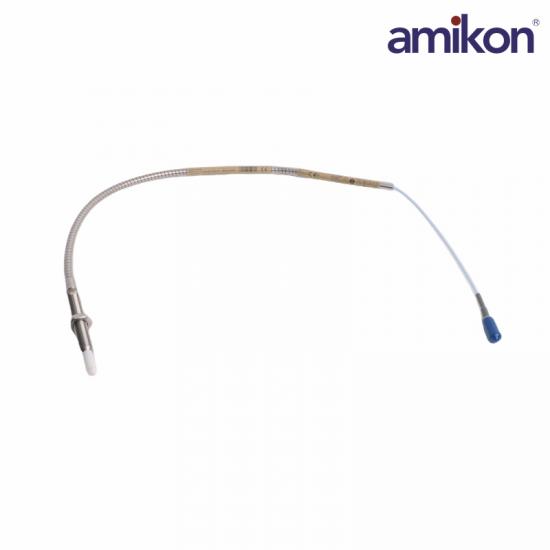

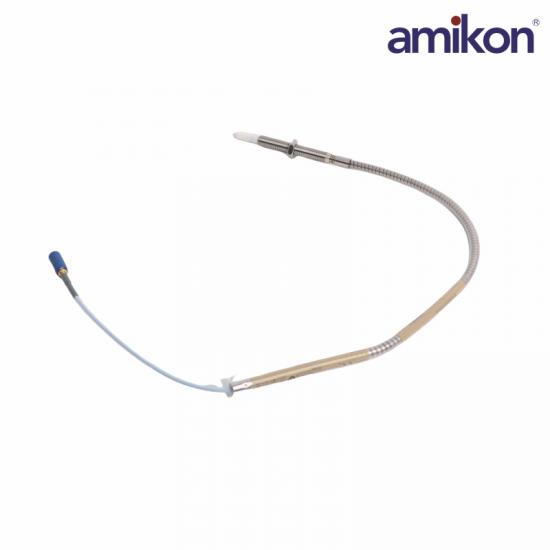

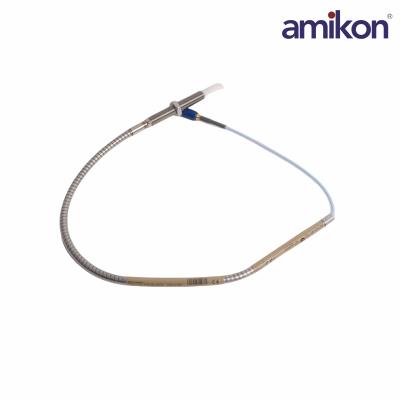

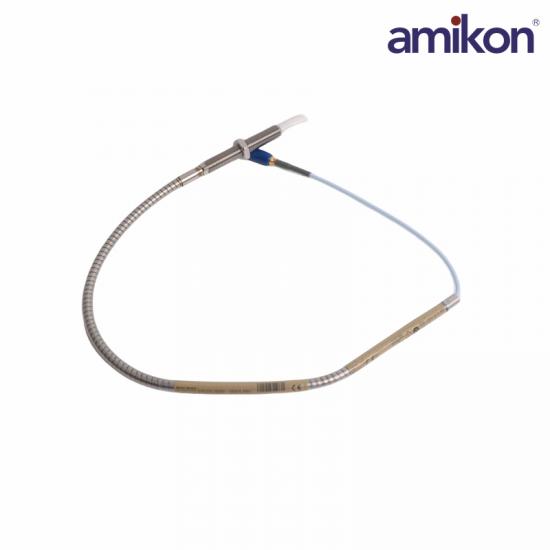

Model: 330910-00-09-10-02-05/CN
Type: Transducer System
utput Resistance: 50 Ω
Extension Cable DC Resistance:
Center Conductor: 0.220 Ω/m (0.067 Ω/ft)
Shield: 0.066 Ω/m (0.020 Ω/ft)
Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical
Recommended Gap Setting: 1.0 mm (40 mils)
Proximitor Sensor Material: A380 aluminum
System Length: 5 or 7 meters including extension cable
Recommended Torque: Finger tight
Maximum Torque: 0.56 N•m (5 in•lb)
Operating and Storage Temperature: -52°C to +177°C (-62°F to +351°F)
The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. The 3300 XL NSv Proximity Transducer System consists of:
a 3300 NSv probe
a 3300 NSv extension cable
a 3300 XL NSv Proximitor Sensor(1)
The primary uses for the 3300 XL NSv Transducer System are for areas where counterbore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). It is primarily used in the following applications on fluid-filmed bearing machines where a small shaft or reduced side-view is present:
Radial vibration and radial position measurements
Axial (thrust) position measurements
Tachometer and zero speed measurements
Phase reference (Keyphasor signals)
