Dimensions: 3x1.7x2cm

Weight: 0.08kg

Total Length Option: 1.0 meter (39 in)

Maximum Rated: 33.9 N•m (300 in•lbf)

Connector and Cable-Type Option: Miniature coaxial ClickLoc connector with connector protector, standard cable

Unthreaded Length Option(Minimum unthreaded length) : 0 mm

Probe Case Thread: 3/8-24

Maximum Length of Thread Engagement: 0.563 in

Agency Approval Option: Not required

Extension Cable Material: 75 Q triaxial, fluoroethylene propylene (FEP) insulated

Supply Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage

Output Resistance:50 Ω

Operating Temperature: -52°C to +177°C (-62°F to +351°F)

Storage Temperature: -52°C to +177°C (-62°F to +351°F)

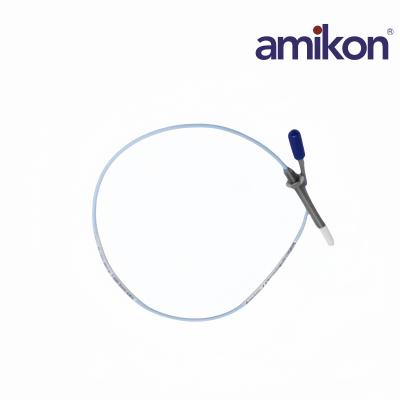

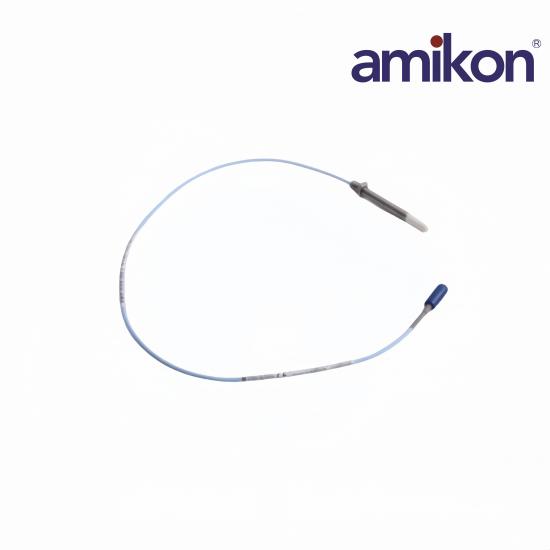

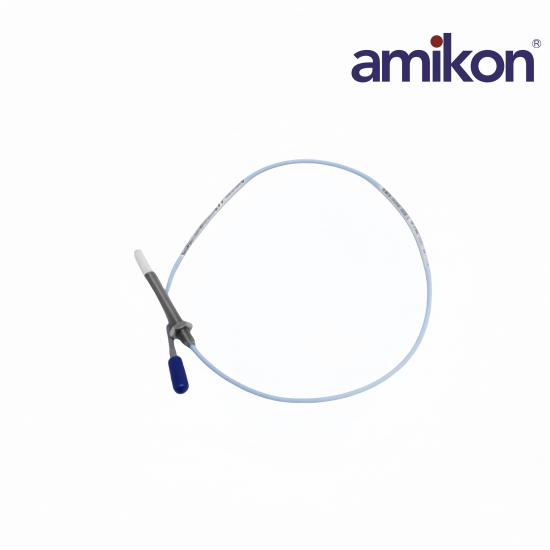

The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API)670 Standard for mechanical configuration, line ar range,accuracy, and temperature stability. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space 6,7.The 3300-series5 mm probe (refer to Document 141605) uses smaller physical packaging, but does not reduce the side view clearances or tip-to-tip spacing requirements as compared to an 8mm probe. It is used when physical (not electrical) constraints preclude the use of an 8 mm probe. The 3300 XL probe and extension cable also reflect improvements over previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body. The probe’s cable incorporates a patented CableLoc design that provides 330 N (75 lbf) pull strength to more securely attach the probe cable and probe tip.You can also order 3300 XL 8 mm probes and extension cables with an optional FluidLoc cable option. This option prevents oil and other liquids from leaking out of the machine through the cable’s interior.
