Weight: 0.14kg

Dimensions: 1.8x1.6x108cm

Agency Approval Option: Not required

Unthreaded Length Option(Minimum unthreaded length) : 0 mm

Output Resistance:50 Ω

Maximum Rated: 33.9 N•m (300 in•lbf)

Probe Case Thread: 3/8-24

Maximum Length of Thread Engagement: 0.563 in

Extension Cable Material: 75 Q triaxial, fluoroethylene propylene (FEP) insulated

Supply Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage

Total Length Option: 1.0 meter (39 in)

Connector and Cable-Type Option: Miniature coaxial ClickLoc connector with connector protector, standard cable

Operating Temperature: -52°C to +177°C (-62°F to +351°F)

Storage Temperature: -52°C to +177°C (-62°F to +351°F)

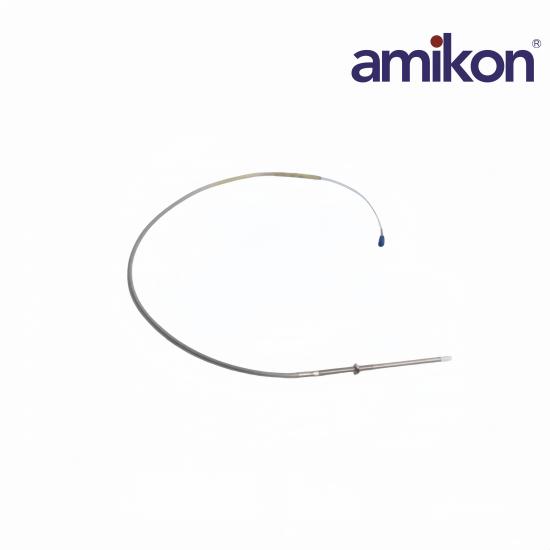

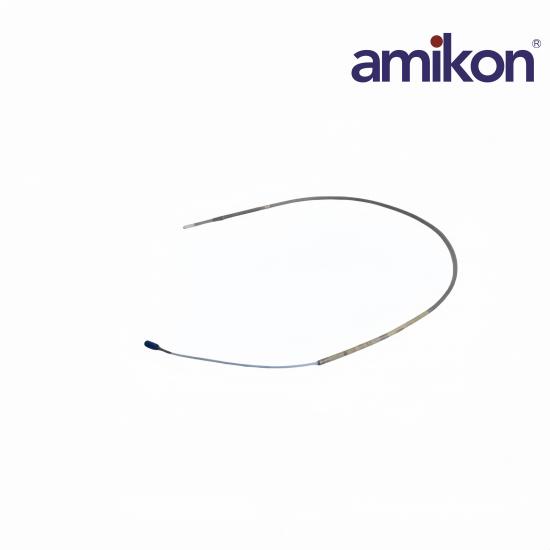

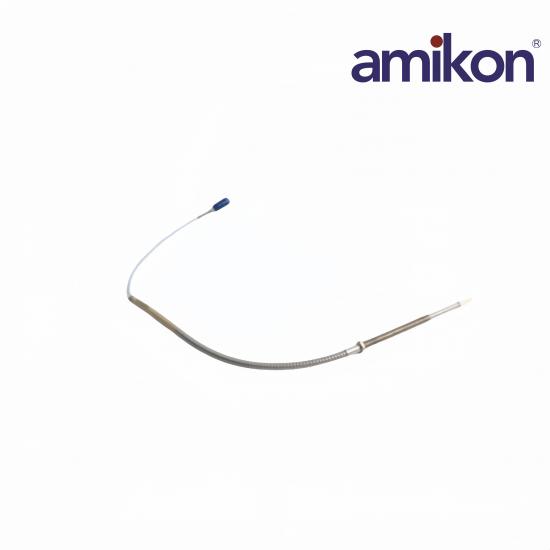

The 3300 XL probe and extension cable also reflect improvements over previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body. The probe’s cable incorporates a patented CableLoc design that provides 330 N (75 lbf) pull strength to more securely attach the probe cable and probe tip. You can also order 3300 XL 8 mm probes and extension cables with an optional FluidLoc cable option. This option prevents oil and other liquids from leaking out of the machine through the cable’s interior.8 mm probes provide a thicker encapsulation of the probe coil in the molded PPS plastic probe tip. This results in a more rugged probe. The larger diameter of the probe body also provides a stronger, more robust case. We recommend that you use 8 mm probes when possible to provide optimal robustness against physical abuse.
