Description：

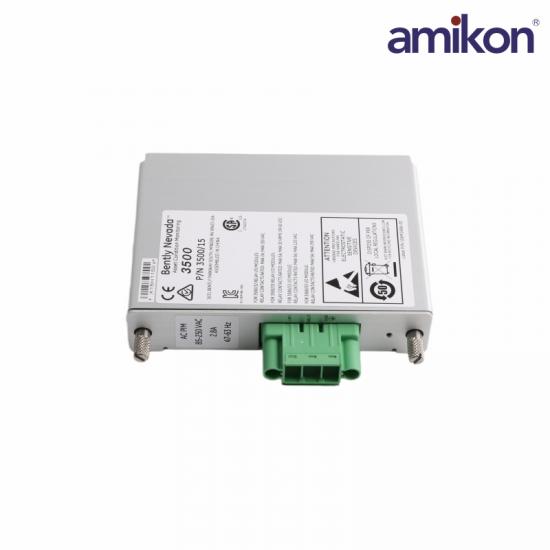

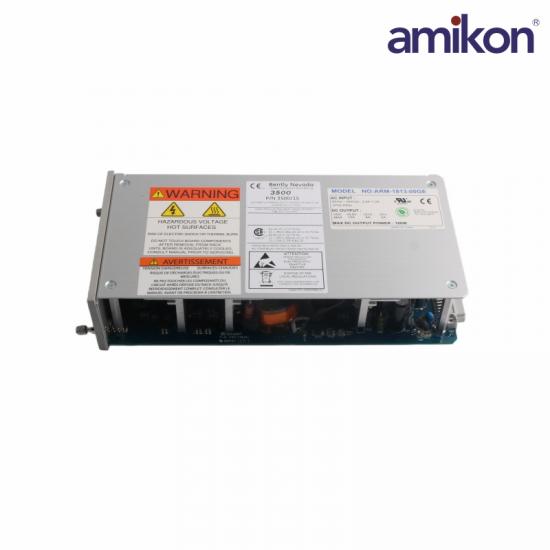

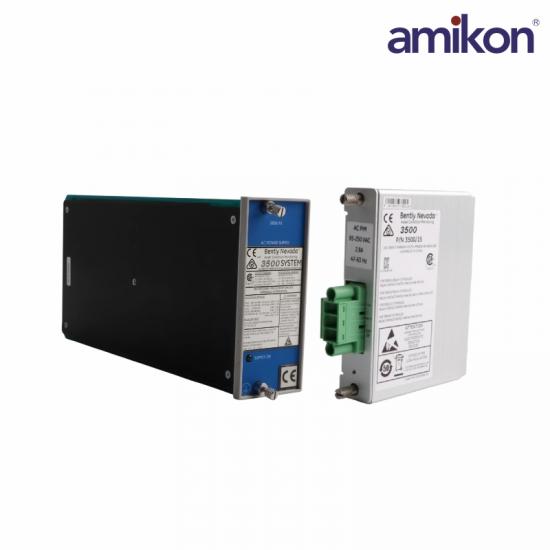

The Bently Nevada 3500/15 106M1079-01 and 106M1081-01 are components of the 3500 series machinery protection system's universal AC power supply. The 106M1079-01 is the Universal AC Power Supply Module, and the 106M1081-01 is the corresponding Universal AC Power Input Module, designed to provide reliable, redundant power to the rack.

The Bently NevadaM 3500/15 AC and DC Power Supplies arehalf-height modules and must be installed in designatedslots on the left side of the rack. The 3500 rack can containone or two power supplies with any combinations of AC andDC. Either supply can power a full rack.

When two power supplies are installed in a rack, the one inthe lower slot acts as the primary supply, and the other in theupper slot acts as the backup supply. If installed, the secondsupply is the backup for the primary one.

Removing or inserting either power supply module does notdisrupt operation of the rack as long as a second powersupply is installed.

Specification：

Frequently asked questions

Q1: What is the Bently Nevada 3500/15 Universal AC Power Supply?

A1: It is a power supply module designed for the 3500 monitoring system, providing reliable and stable power for system operation.

Q2: What is the 3500/15 106M1079-01 input frequency range?

A2: The 3500/15 106M1079-01 input frequency range is 47 to 63 Hz, compatible with standard industrial AC power systems.

Q3: What is the 3500/15 high-voltage DC input range?

A3: The 3500/15 high-voltage DC input range is 88 to 140 V DC.

Q4: What is the 3500/15 low-voltage DC input range?

A4: The 3500/15 low-voltage DC input range is 20 to 30 V DC.

Q5: What is the 3500/15 operating temperature range?

A5: It operates within −30°C to +65°C (−22°F to +150°F), suitable for industrial environments.

Product Applications

Oil & Gas Industry: Used in compressors, pumps, and industrial steam turbine units in refineries and petrochemical plants to ensure uninterrupted operation of equipment vibration monitoring systems.

Power Generation Industry: Used in steam turbine generator units, fans, feedwater pumps, and coal mills in thermal power plants, nuclear power plants, and hydroelectric power plants.

Petrochemicals Industry: Monitors the operating status of critical reactor agitators, centrifugal compressors, and large pump sets.

Metals & Mining Industry: Used for condition monitoring of large fans, motors, gearboxes, and crushers.
